Turbo Chef Technologies C3/C Convection Oven User Manual



Electrical Compartment and Controls
6-3
Electrical Component Locations:

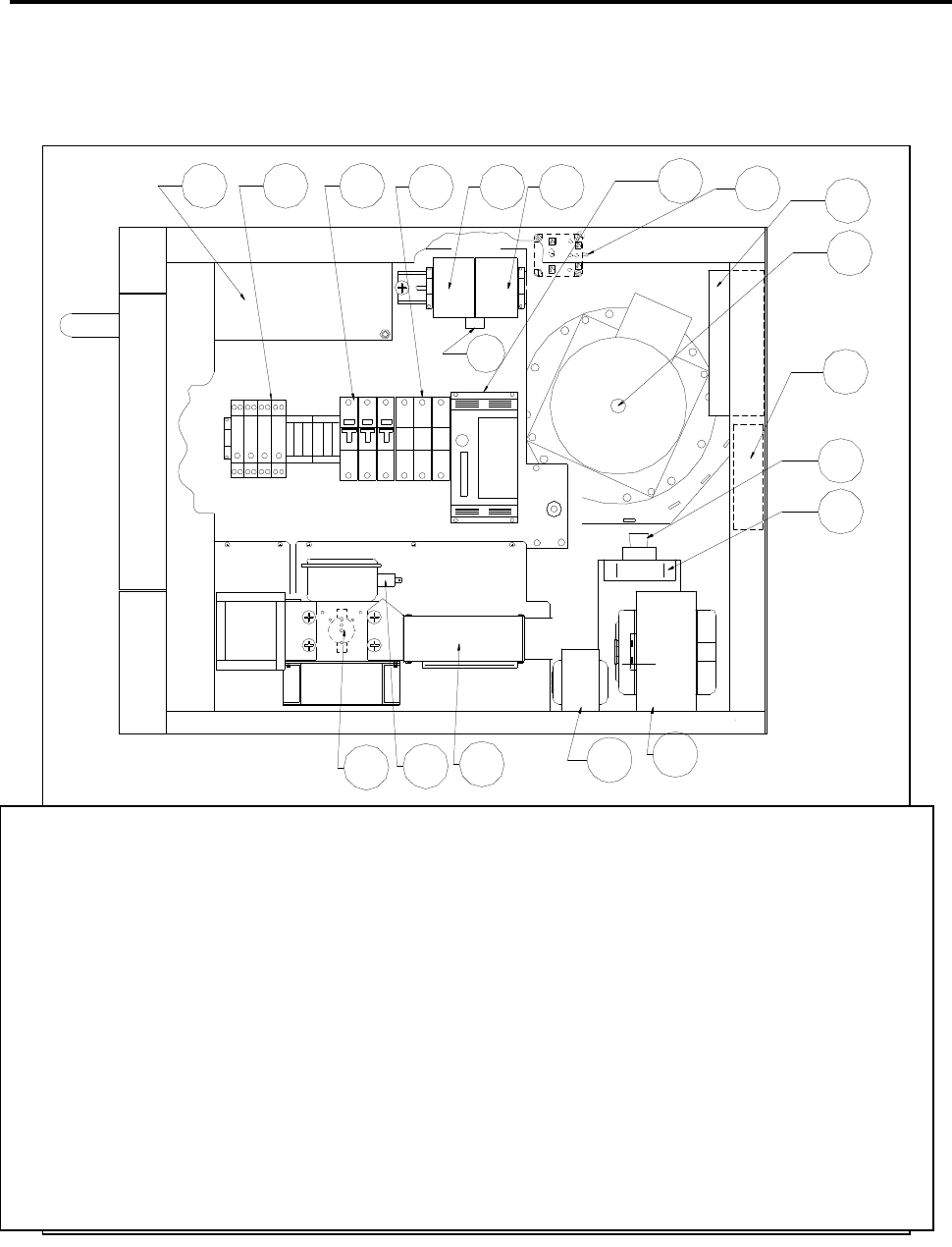

FIGURE 6–1b Electrical Component Locations C3/C Only
K1 K2 K3
K4 K5
1. CIRCUIT BREAKER: CB1-35 AMP
2. FUSES: (2 x 12 AMP - C3/AB;C3/C)
(25 AMP - C3/C)
3. CONVECTION HEAT HIGH LIMIT
4. 24 VDC POWER SUPPLY
5. DOOR SWICH ASSEMBLY (NOT SHOWN)
6a. K1 RELAY AND SOCKET HIGH LIMIT (C3/AB ONLY)
6b. K2 RELAY AND SOCKET FOR MONITOR CIRCUIT
6c. K3 RELAY AND SOCKET FOR MAGNETRON FILAMENT
6d. K6 RELAY AND SOCKET FOR MAGNETRON COOLING FAN
7. K5 SOLID STATE RELAY FOR HEATER
8. K4 SOLID STATE RELAY FOR MAGNETRON
T1 TRANSFORMER
9. SMT CONTROLLER BOARD
10. ELECTRICAL COMPARTMENT COOLING FAN #1
11. MAGNETRON COOLING FAN
12. STIRRER MOTOR
13. HV DIODE
14. HV CAPACITOR, 2500 VAC
15. FILAMENT TRANFORM
16. MAGNETRON HV TRANFORMER
17. MAGNETRON
18. BLOWER MOTOR SPEED CONTROLLER
19. CONVECTION MOTOR
20. N/A
21. N/A
22. THERMOSTAT, MAGNETRON (212F)
23. THERMOSTAT, CLOSE ON RISE (120F),
ELECTRICAL COMPARTMENT COOLING FAN
K6
19
14
4
15
16
11
17
18
2
1 6
8 7
9
3
13
10
22
23
1 PHASE C3/C EC
BOX.WMF
1. Circuit Breaker: CB1-35Amp with trip coil (T0322) 10. COOLING FAN (100519)
2. Fuses: (2x12 AMP-C3/AB & C3/C) (100596) 11. MAGNETRON COOLING FAN (T0262)
(25AMP-C3/C) (100597) 12. STIRRER MOTOR (101891)
3. Convection Heat High Limit (R7603) 13. HV DIODE (100480)
4 24VDC POWER SUPPLY (M9608) 14. HV CAPACITOR, 2500 VAC (100206)
5 (NOT SHOWN) 15. FILAMENT TRANSFORMER (102091)
6a K1 RELAY& SOCKET (T0278 &T0309) 16. MAGNETRON HV TRANSFORMER (102093)
6b K2 RELAY& SOCKET (T0278 &T0309) 17. MAGNETRON (100860)
6c K3 RELAY& SOCKET (T0278 &T0309) 18. BLOWER MOTOR SPEED CONT. (100441)
6d K6 RELAY& SOCKET (T0278 &T0309) 19. CONVECTION MOTOR ASSY. (T0299)
7 K5 SOLID STATE RELAY FOR HEATER (101285) 20. N/A
8 K4 SOLID STATE RELAY FOR MAGNETRON (101285) 21. N/A
9 SMT CONTROLLER BOARD (T0265) 22. THERMOSTAT, MAGNETRON (102070)
23. THERMOSTAT, ELECTRICAL
COMPARTMENT (102085)
Part Number 100441-Reliance Blower Motor Speed Controller will be replaced by 100444-Delta Controller & FSB10034.doc
EMI FILTER (T0286) NOT SHOWN
