CONVECTION ELEMENT ASSEMBLIES

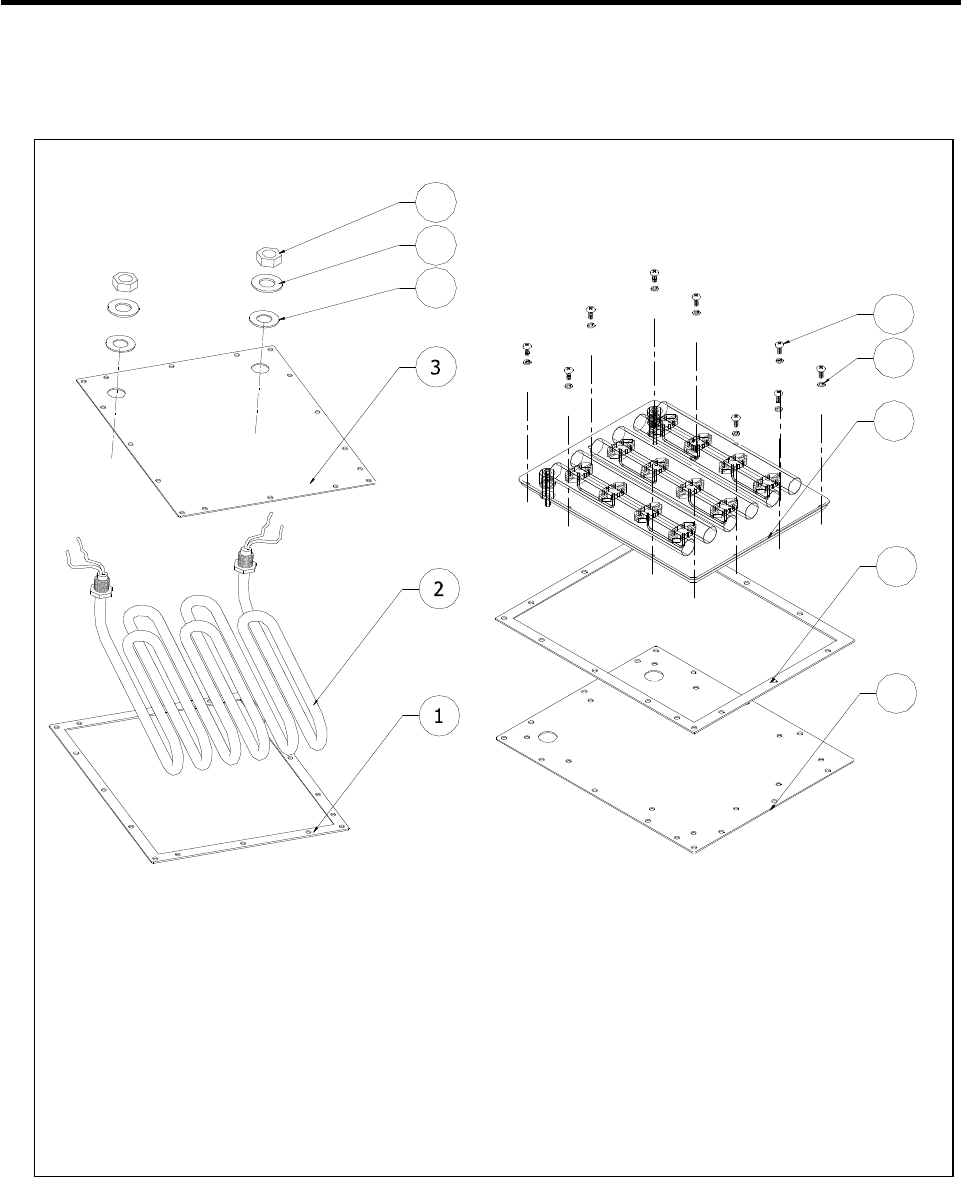

FIGURE 8-3 Convection Heater Assemblies
SHEATHED HEATER ASSEMBLY ALL MODELS
1. GASKET, 3PHASE HEATER COVER
2. PLATE, SHEATHED HEATER
3. SHEATHED HEATER
4. WASHER, FLAT, HEATER, 5/8
5. WASHER, FIBER, 5/8
6. NUT, 5/8-18 CRES
OPEN COIL HEATER ASSEMBLY MODELS C3, C3/AB AND C3/C
(OBSELETE)
7. PLATE, C3 HEATER MOUNTING
8. GASKET, 3PHASE, HEATER COVER
9. HEATER ELEMENT, OPEN COIL
10. WAHER, SPLIT LOCK 8-32 (C3, C3/AB ONLY), M4 (C3/C)
11. SCREW, #8-32 X .38 PPHD, CRES (C3, C3/AB ONLY), M4 X 10 (C3/C)
7
8
9
4
5
6
10
11
OBSOLETE MODEL
Not
e: TC3
-
0200 Kit Retrofit, Sheated Heater
replaces the above obsolete model.
