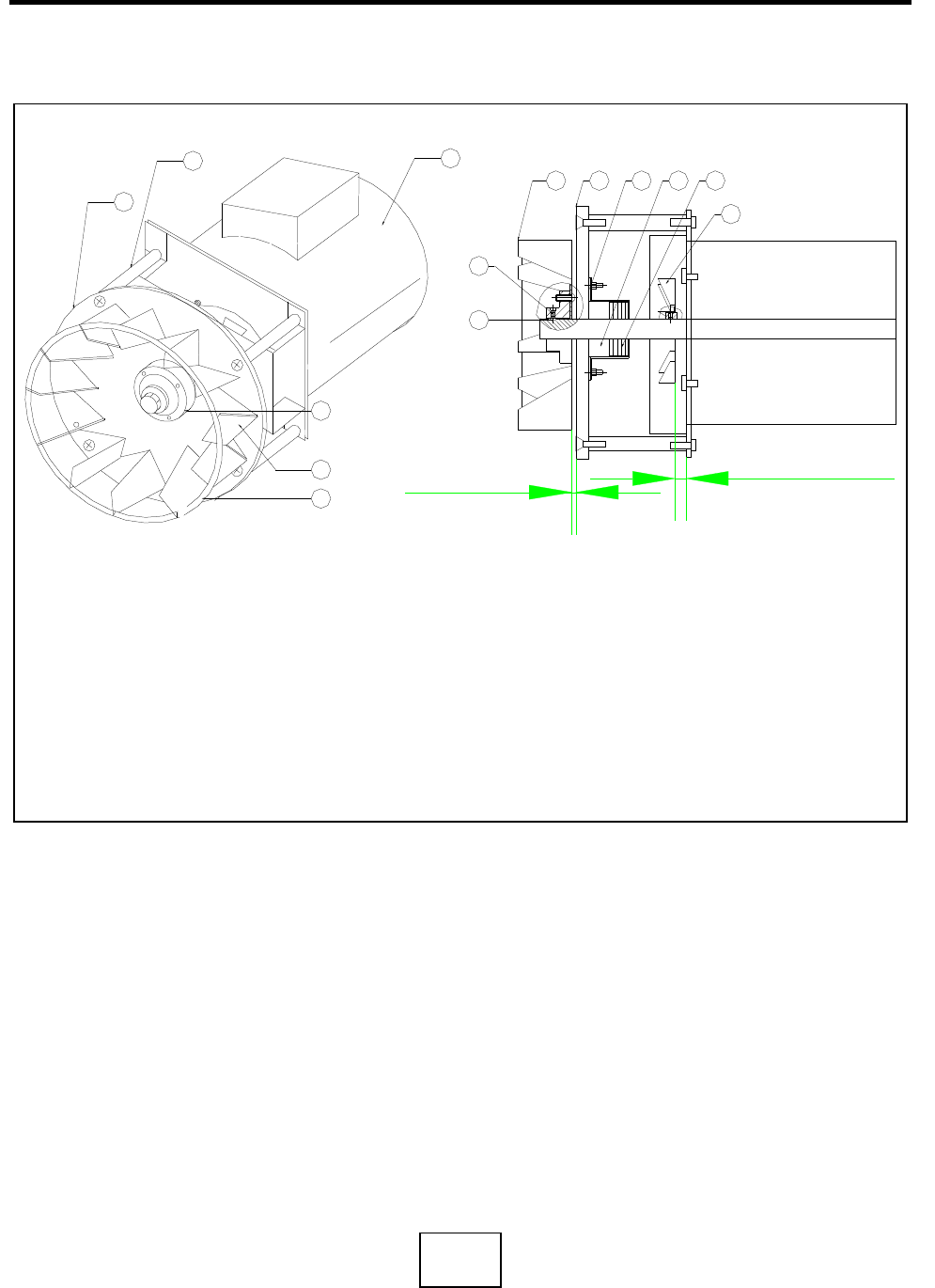

Figure 8-6: Convection Motor Detail PN: C0299
Z
1
2
3
4
5
6
5
3
7
8 9
10
11
12
0.52 MIN
HEAT SLINGER TO PLATE
0.150 MAX
FAN BLADE TO CAP
7. CLAMP, BEARING SPRING
8. BLOCK, BLOWER BEARING SEAL
9. SPRING, COMPRESSION
10. HEAT SLINGER
11. SET SCREW (USE LOCTITE 290)
12. #605 WOODRUFF KEY
CONVECTION MOTOR ASSEMBLY
1. MOTOR, 1 HP
2. SPACER, BLOWER MOUNT
3. CAP, BLOWER
4. RING, FAN BLADE
5. FAN BLADE
6. HUB, FAN SMALL
