Turbo Chef Technologies C3/C Convection Oven User Manual



Cook Door
7-18

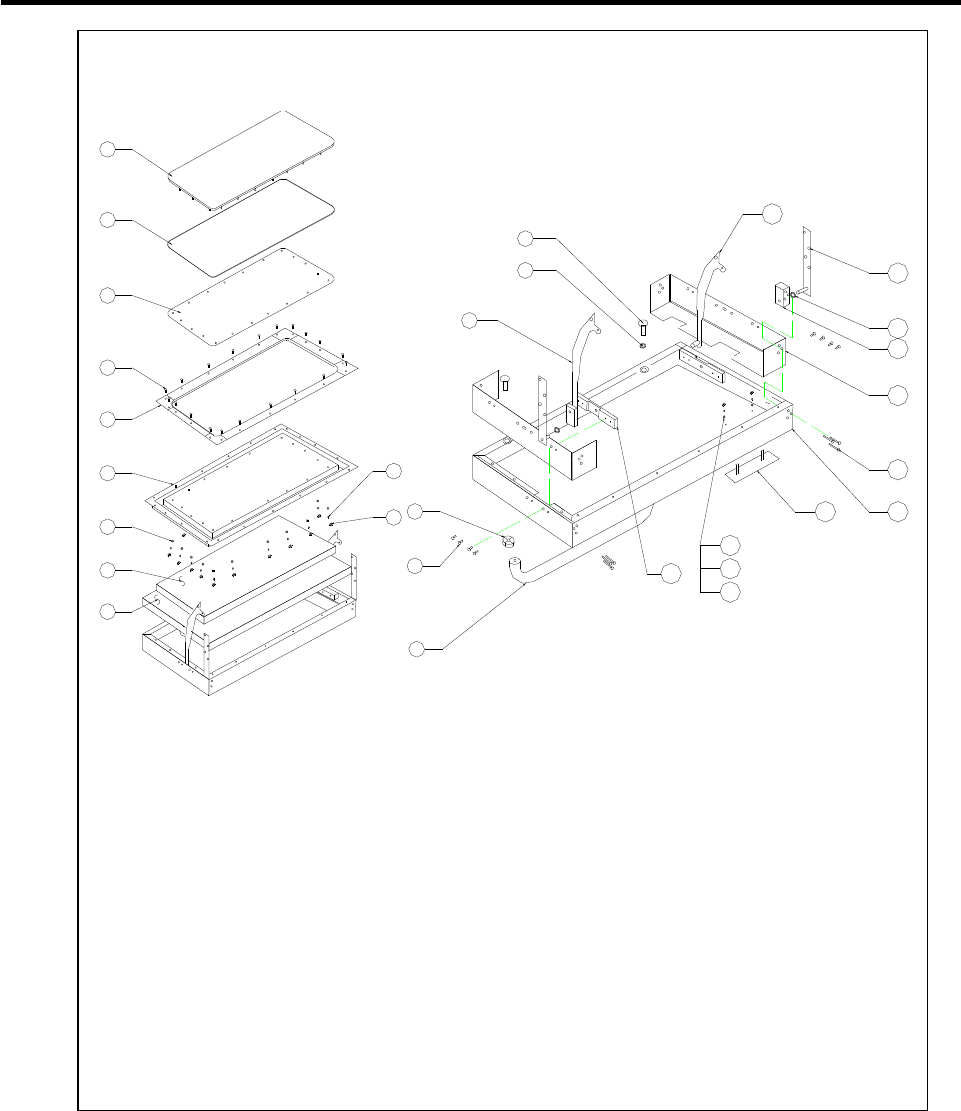

Figure 7-8: C3/C and C3/CMulti Door Assembly
17. WASHER, LOCK M6 SS
18. BOLT, M6 X 20 MM SS
19. ASSY, ARM. LH
20. ASSY, PIN
21. WASHER, NYLON
22. ASSY BEARING BLOCK
23. PLATE, DOOR REINFORCING
24. SCREW, M4 X 16 MM SS
25. OUTER DOOR SKIN
26. TURBOCHEF NAME PLATE, AL
27. N/A
28. N/A
29. N/A
30. ASSY GUIDE BLOCK
C3/C DOOR ASSEMBLY
1. SHUNT, DOOR
2. SEAL, ENVIRONMENTAL
3. SHUNT, SUPPORT, SHIM
4. SCREW, M4 X 12MM SS
5. COVER, DOOR PLASTIC
6. SHUNT SUPPORT DOOR
7. WASHER, M4 SS
8. WASHER, LOCK, M4 SS
9. NUT, M4 SS
10. DOOR INSULATION
11. DOOR INSULATION
12. HANDLE COOK CHAMBER
13. SCREW, M4 X 12MM SS
14. SPACER, DOOR HANDLE
15. ASSY, ARM RH
16. WASHER, M4 SS
1
2
3
4
5
6
8
9
7
10
11
12
13
14
15
16
18
19
20
21
22
23
24
25 26
27
28
29
30
