Chapter 6 The keyboard, display and indicators
Page 6.1
6. The keyboard, display and indicators
6.1 What this chapter tells you
This chapter tells you:
• How the front panel is laid out.
• What the buttons and indicators do.
• What characters you can display.
6.2 The layout of the front panel

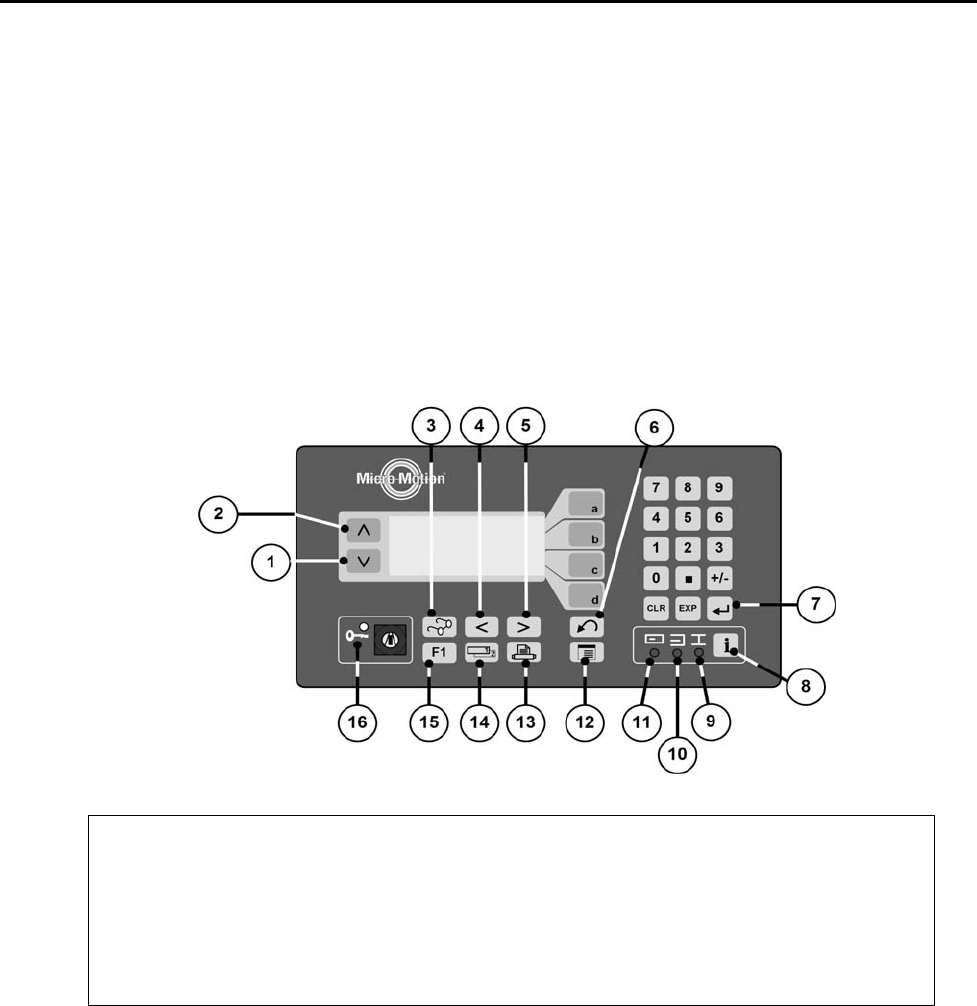

Figure 6.1 shows the layout of the keyboard. The diagrams at the end of this chapter give a visual summary of
what each of the buttons do.
1. DOWN-ARROW 7. ENTER 13. PRINT MENU
2. UP-ARROW 8. INFORMATION MENU 14. STREAM/RUN SELECT
3. MULTI-VIEW DISPLAY 9. LIMIT ALARM LED 15. F1 (software specific function)
4. LEFT-ARROW 10. INPUT ALARM LED 16. SECURITY LED AND LOCK
5. RIGHT-ARROW 11. SYSTEM ALARM LED
6. BACK 12. MAIN MENU
Figure 6.1: The layout of the front panel
