Oven Components
Ultra Rokite Deck --- stone deck that absorbs heat
from below to cook the bottom of the product.
Steel Deck --- absorbs heat from below to cook
the bottom of the product.
Deck Supports --- h o l d t h e o v e n d e c k s .
Deck Seal --- seals the gap betw een the deck and
the front of the oven.
Control Panel --- contains wiring and components
to control the oven operation.
Burner Compartment --- located beneath the
cooking chamber. The burner compartment con-
tains the combustion burners.
Combustion Burners --- provide heat to the bak-
ing chamber and the decks.
Deflector --- diverts some of the heat from the
combustion burners t o t he flue plates.
Flue Plates --- located on the interior side walls of
the cooking chamber. The flue plates conduct
heat from the burners to the oven cavity. The heat
cooks the top of the product before being vented
from the oven.

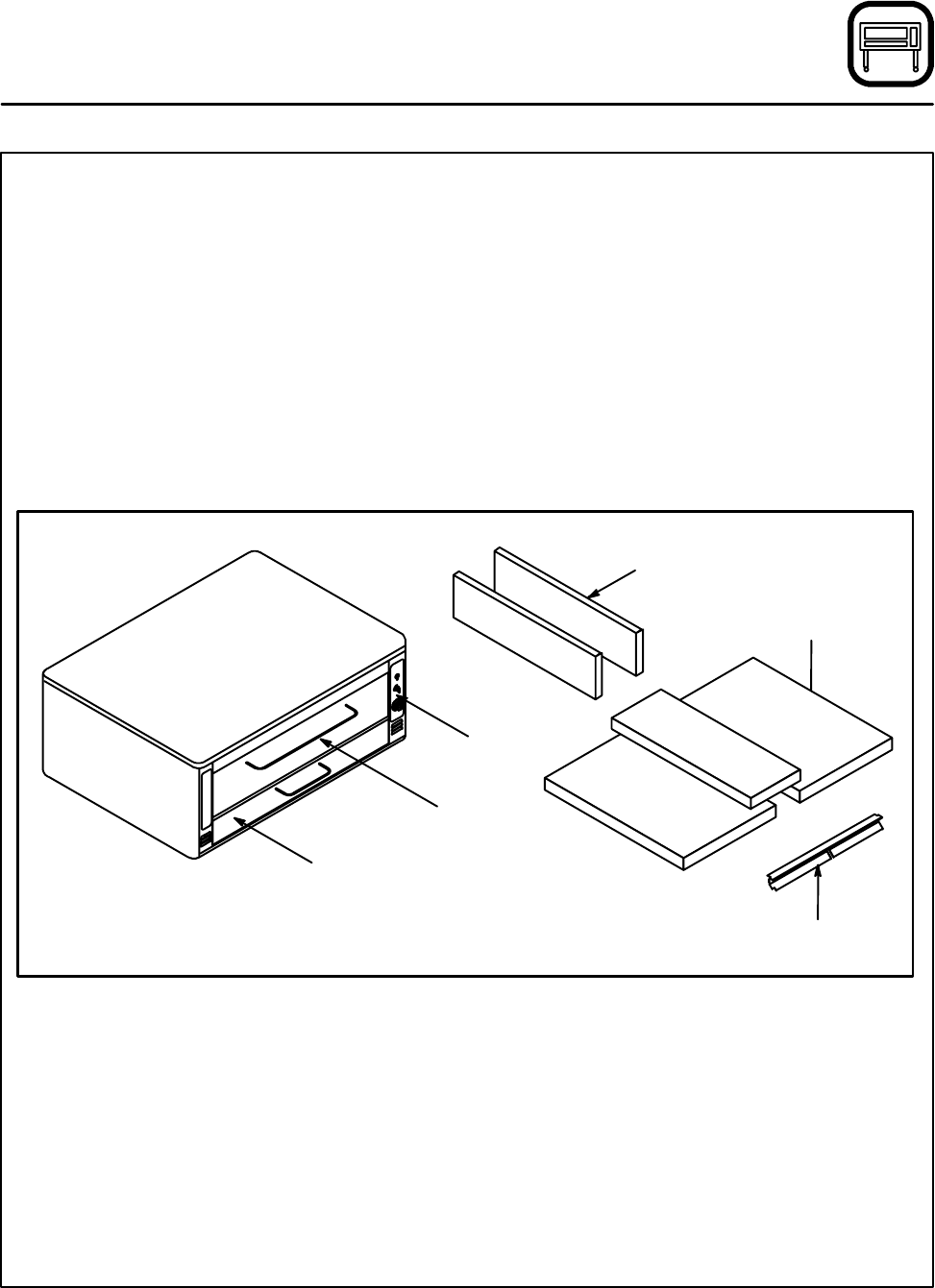

Oven Decks
Deck Seal
Flue Plates
Burner
Compartment
Control
Panel
Baking
Compartment
Figure 1
