16 TASCAM CD-RW402 Owner’s Manual
3 – Features and controls

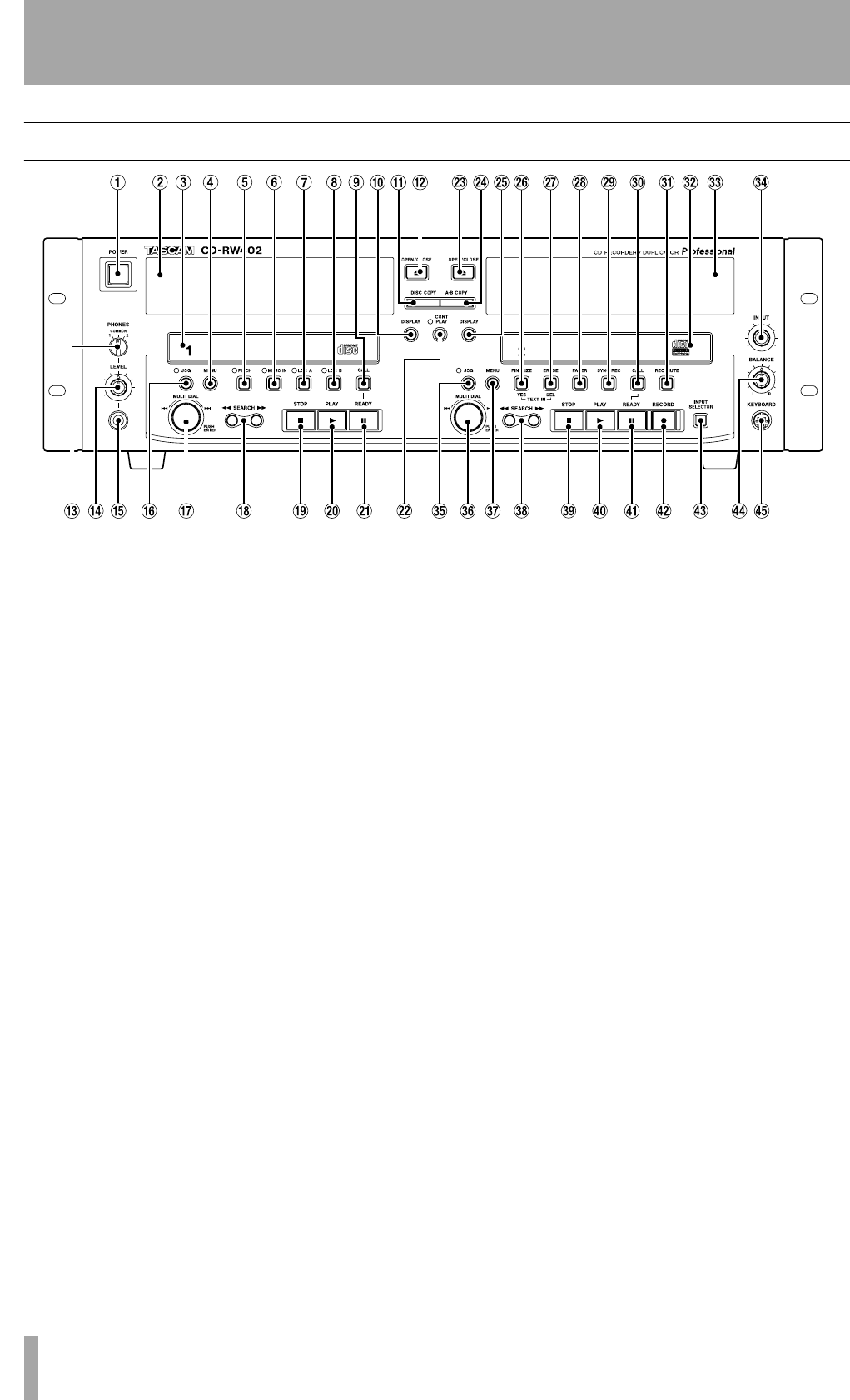

Front panel
1 POWER switch Use this to turn the unit on
and off.
2 Drive 1 display Shows track and playback
information, etc. for drive 1, as well as the menu
parameters and settings.
3 Disc tray (1) Holds the disc for drive 1.
4 MENU key (1) Press this in order to bring up
the menu selections for drive 1.
5 PITCH key and indicator Press to light.
When lit, and the pitch menu is set to a value other
than 0.0%, playback will speed up and slow down
and the pitch will alter, according to the menu value
(pitch may be altered ±9.9%).
6 MEMO IN key and indicator Press to
light. When lit, the A and B points may be set.
7 LOC A key and indicator When the
MEMO IN key (above) is lit, pressing this key will put
the current playback position into the A memory
point. The indicator lights. When the
MEMO IN indi-
cator is not lit and the LOC A indicator is lit, pressing
this key will move the playback position to the set
point.
8 LOC B key and indicator When the
MEMO IN key (above) is lit, pressing this key will put
the current playback position into the B memory
point. The indicator lights. When the
MEMO IN indi-
cator is not lit and the
LOC B indicator is lit, pressing
this key will move the playback position to the set
point.
9 CALL key (1) This key moves playback
position to the last playback start position. See “Cue
point” on page 22.
A DISPLAY key (1) Changes the time display
type of drive 1.
B DISC COPY key Starts the copying process
of discs from 1 to 2.
C OPEN CLOSE (1) Opens and closes the tray
of drive 1.
D PHONES selector switch This selects the
output from the
PHONES jack to be either drive 1,
drive
2 or COMMON (drive 1 if both are playing, or
the deck that is playing if only one is playing).
E PHONES LEVEL Adjust the level from the
jack with the
LEVEL control.
F PHONES jack Use ordinary stereo head-
phones with this 1/4” stereo jack.
G JOG key and indicator (1) Press to light
the indicator. When it is lit, this allows the playback
position of the disc in drive 1 to be adjusted (see
“Using the jog function” on page 23).
H MULTI DIAL (1) Turn this to select menu
parameters, and values for menu parameters, and
press it to select the parameters and set the values.
It can also be used for selecting tracks for playback,
etc. as explained in the appropriate sections of this
manual.
I SEARCH keys (1) Allow “fast forward”
and “fast rewind”.
