Instructions for removing Door Leaf with Spring
Loaded Hinges (See Figure #15)
1. Open Door to dwell position, stopping at approx. 120˚.
2. Put mark on floor to indicate position of Door.
See sketch.
3. Lift Door off frame.
4. To replace Door, line up Door with mark on the floor.
5. Place Hex Hole in hinge straps over Hex Rods and
lower Door.
120˚
Door
Strap
Mark
1248 Spring Hinge
Instructions for Door Hinge Pin replacement,
(See Figure #16)
Top View
10˚ Approx.
Rotate Pin until it is in this
approximate position.
45˚ Approx.
Back of Strap View
*For Offset Hinge, Pin is rotated 180 Degrees
Adjusting Door Closer
(See Figure #17)
Jamb
Roller
Hook
Lip
Lever
Door
1/32” Clearance
Warning! Door Closure lever must remain horizontal when door is open.

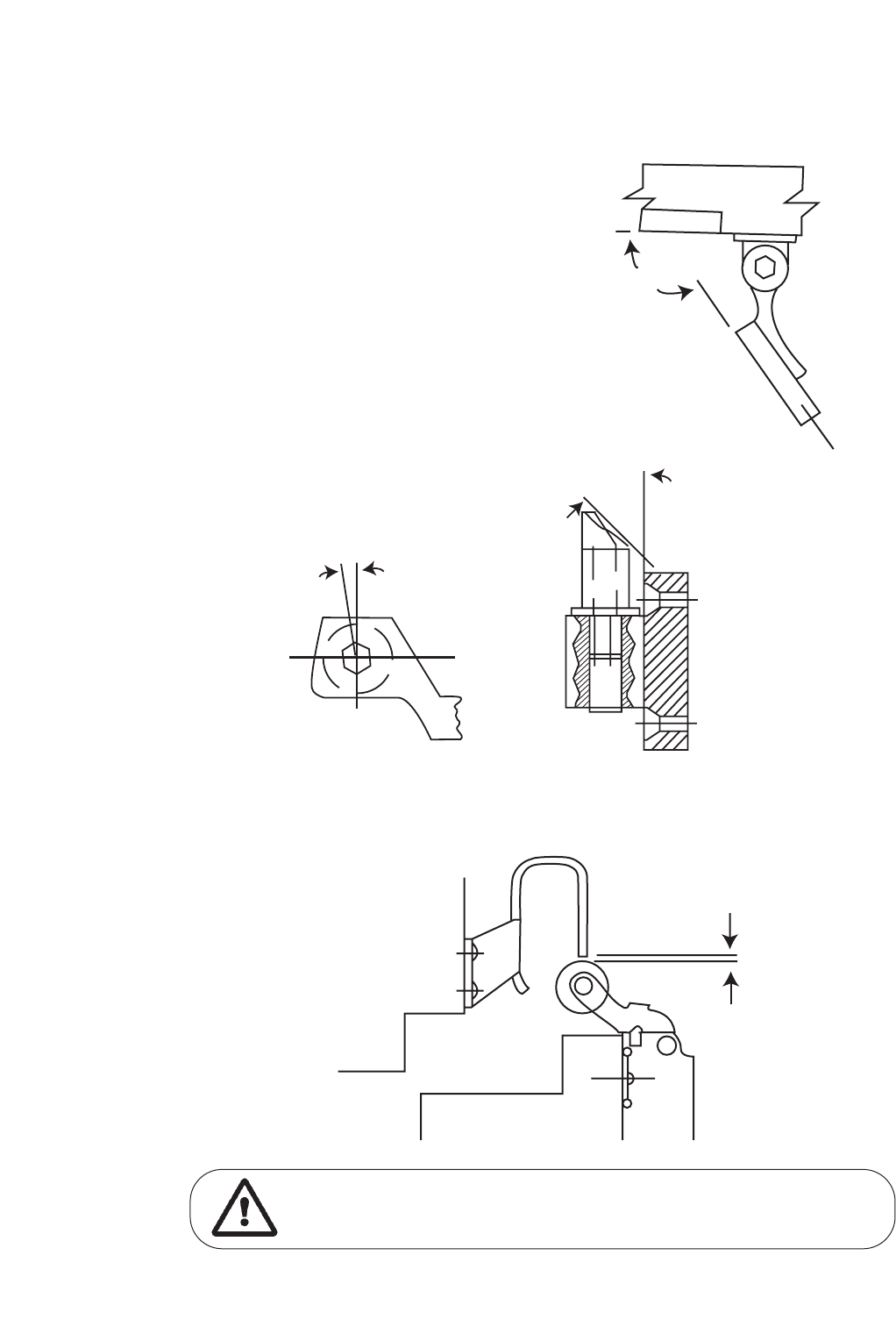

Figure #15
Figure #16
Figure #17
For proper operation with
roller in down position, adjust
hook to 1/32" above roller.
