Description Of Numbered Door Section Components
1. Vapor Proof Light (use standard light bulb, maximum 100 watts) with plastic coated glass
2. Electrical Junction Box
3. Door Closer
4. Temperature Indicating Device (Dial Shown)
5. Light Switch With Neon Pilot Light
6. Door Latch Assembly
7. Heater Cable
8. Door Hinge
9. Threshold Plate
10. Drag Gasket
11. Floor Panel
All wiring contained within the door section is 115/60/1 with the exception of the digital thermometer when used.
The wiring from the low voltage side of the class 2 transformer is 12 volts. Wiring from the line side of the trans-
former 115/60/1 phase. Door Sections are UL Approved.

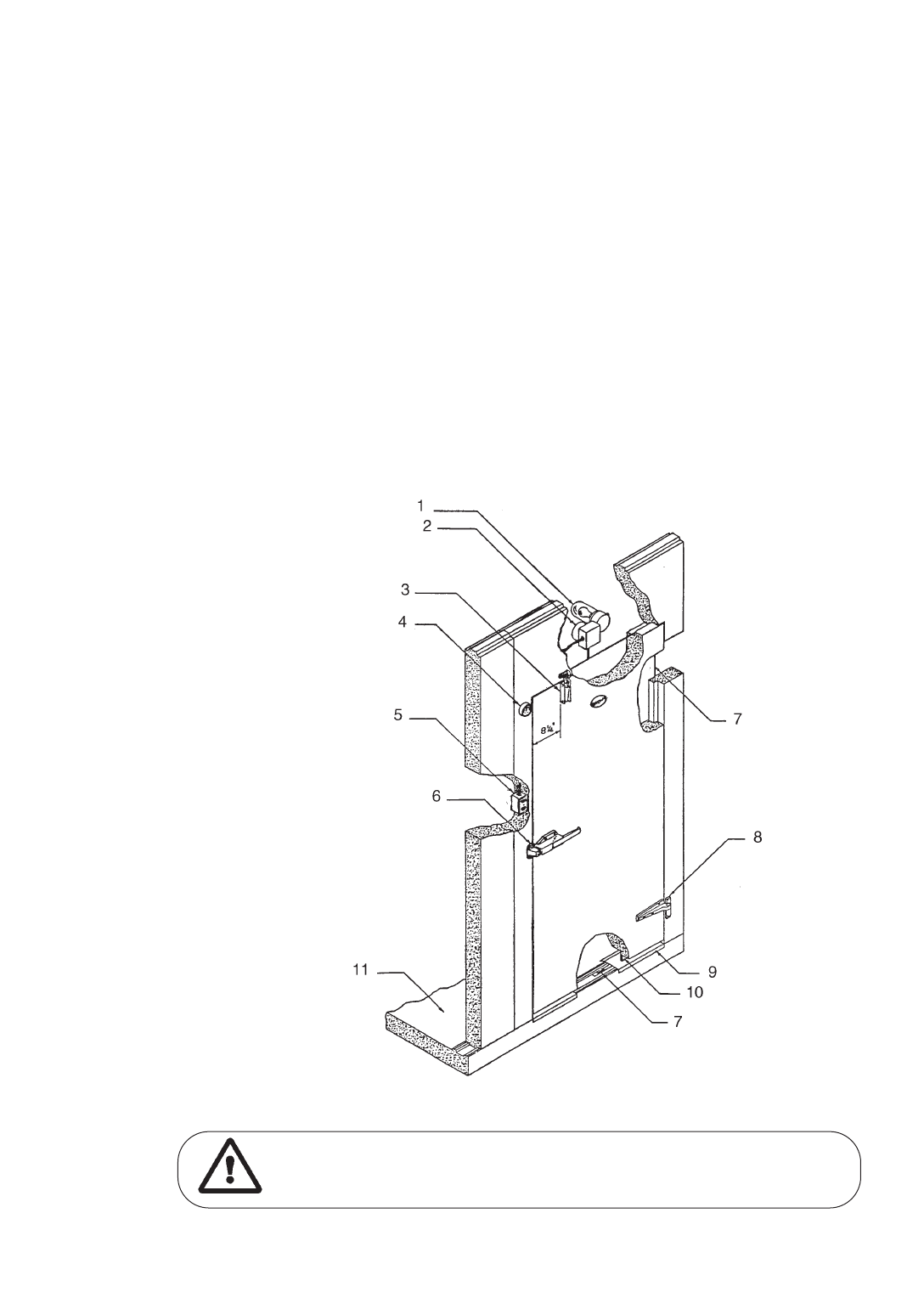

DOOR SECTION CUT AWAY
Figure #18
Replacement Keys
Should replacement keys be
required, call our Customer
Service Department with your
serial number (see page 15)
They will be able to provide
extra keys at an additional
charge.
Warning! Do not leave light on or have heater cable activated for extended
periods of time when Walk-in is not in operation.
