Electrical Hook-Up to Junction Box
23
Figure #26

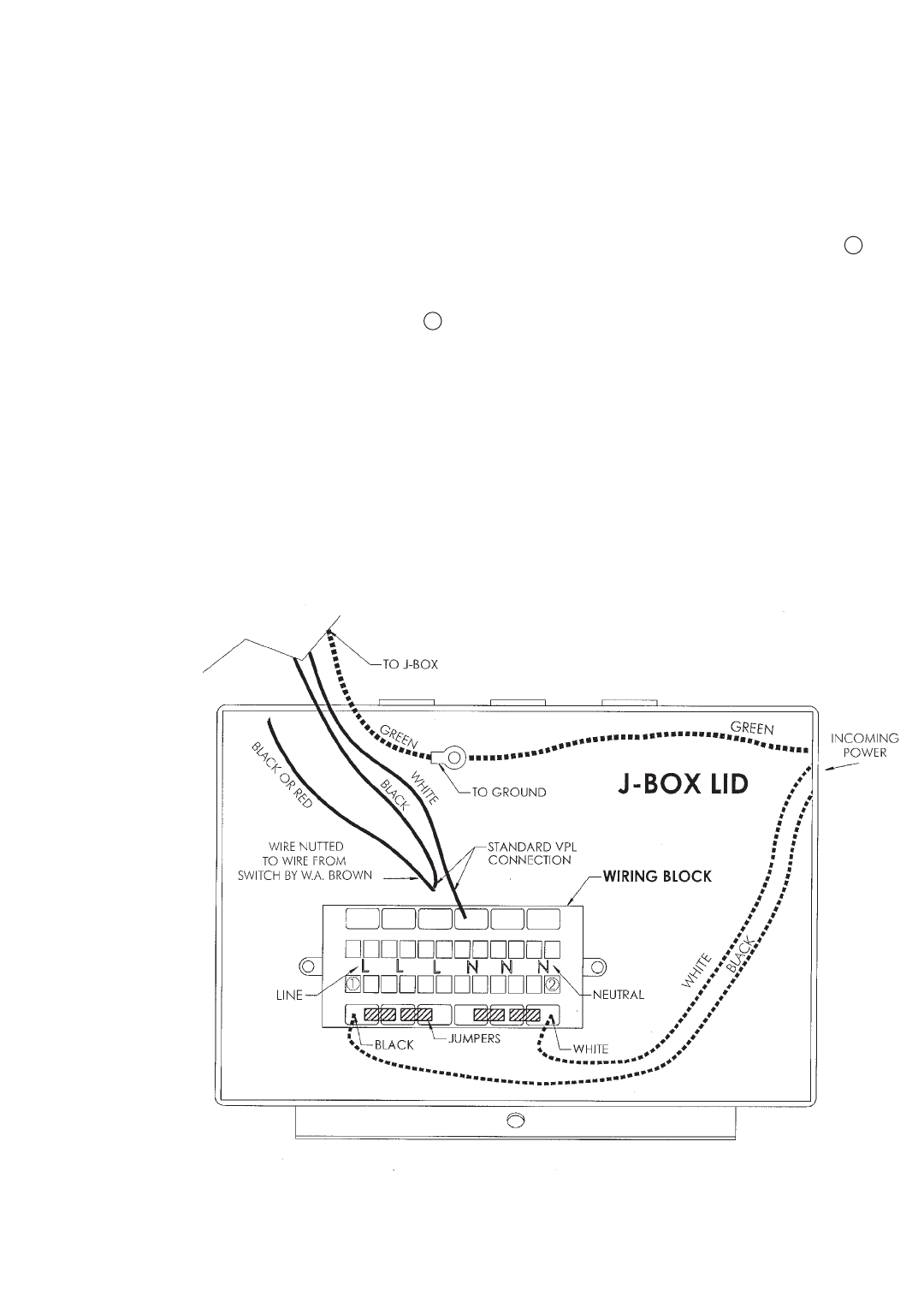

Inside of Junction Box
Electrical Hook-Up to Junction Box
1. Connect incoming conduit to 3/4 diameter hole on right side of junction box.
2. Selection of conduit type, connection method and wire type in accordance with local codes. Responsibility of
installing contractor.
3. Once 120 volt power is pulled to the junction box, insert a sharp pointed tool into the box marked 1 . Apply
pressure downward to open the wire termination opening in the box marked "Black". Insert Black wire and
release tool. The spring loaded insert should now have a tight connection on the wire. If the wire pulls out,
repeat procedure until the wire will not pull out under hand pulled pressure.
4. Repeat step 3 except for box marked 2 and "White" wire location.
5. Land ground wire on either the post on the lid or within the junction box.
6. Make final check before energizing panel and securing the junction box lid.
