Model EEG-141, 142, 143, 144
3-23 609

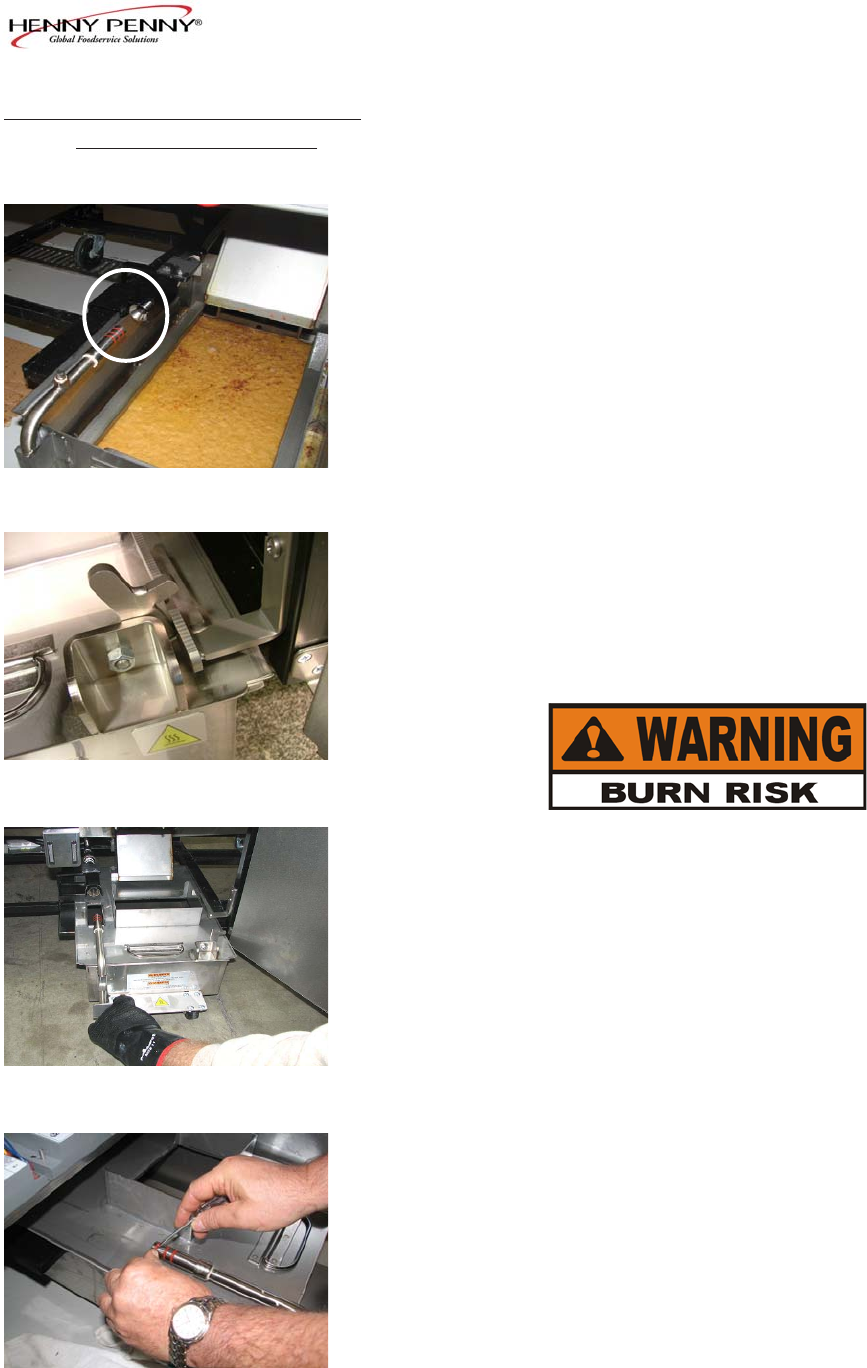

3-18. CHECK/REPLACE FILTER
DRAIN PAN O-RINGS
To prevent oil leaking, and to keep filtering process operating
properly, the filter drain pan o-rings should be inspected for nicks
and tears at least every 3 months. Figure 1
1. Open the door, lift-up on the drain pan stop and pull-out the
filter drain pan assembly, using the handle on the drain pan.
Figures 2 & 3
This pan could be hot! Use protective cloth or glove, or
severe burns could result.
2. Visually check the 3 o-rings on the tube of the filter drain pan
for any cracks or breaks and replace if necessary.
3. To replace o-ring, use a small, flat-bladed screwdriver, pry up
on the o-ring and pull off of end of tube. Roll new o-ring into
notch on tube. Before pushing the filter drain pan back into
position, lubricate the o-rings on the filter tube with fresh, cold
oil.
Figure 1
Figure 2
Figure 3
Figure 4
