TroubleshootingBefore Use Operation Cleaning
Procedures for returning the water supply
pump and pipe to their original positions
Assembling the water supply pump Installing the pipe
Note
z
If the packing is not set, the water inside the water tank and food inside the refrigerator compartment may freeze.
z
Replacement is not usually required for the optical catalyst and lead-cleaning fi lter. However, it may require
replacement in the following cases.
•
When it clogs because something other than water was put in the tank
•
When it is damaged
•
When mold has formed
To purchase a new fi lter, contact the retail store where you purchased the refrigerator.
* If mold forms easily because of the type of water, clean about 2 or 3 times a month.
Water
supply
pump
Pipe
Impeller
Lid
Optical
catalyst
and lead-
cleaning
fi lter
Cap
Pipe
Water supply pump
Tank packing
Incorrect assembly may prevent ice from forming,
or increase the operation noise.
1. Fit the fi lter into the cap.
4. Rotate and fi
x the tab
(
c
)
of the cap in step 2 into the
projection (
d
) on the water
supply pump in step 3.
* Make sure that the impeller is inside.
1. Insert the pipe into the water tank.
2. Connect the pipe to the water
supply pump.
* Check that there are
no foreign objects
between the pipe
and the water
supply pump.
5. Set the water supply pump in
step 4
onto the water tank by
rotating it in the direction of
the arrow.
* Align the triangle
mark on the
bottom of the
water tank with
the triangle mark
on the fi lter and
push in while
making sure that
there is no gap.
2. Fit the lid onto the
assembly made in step 1.
3. Attach the impeller onto
the water supply pump.
Remove the
cap while
opening the
tab with your
fi nger.
Rotate
Rotate
d
c
Pipe
Do not use cleaners such as kitchen
detergents, benzene or bleach to clean
the optical catalyst and lead-cleaning fi lter.
• Doing so may result in odors of
the ice.
When setting,
align the mark
on the tank with
the mark on the
packing.
The impeller is made
from a magnet.
Wash it thoroughly
to remove any
foreign objects.
Pipe
Water
supply
pump
Water
supply
pump
Caution
Do not let foreign
objects block the
hole.
Completed
view
Completed
view
Completed
view
Completed
view
Tank
packing

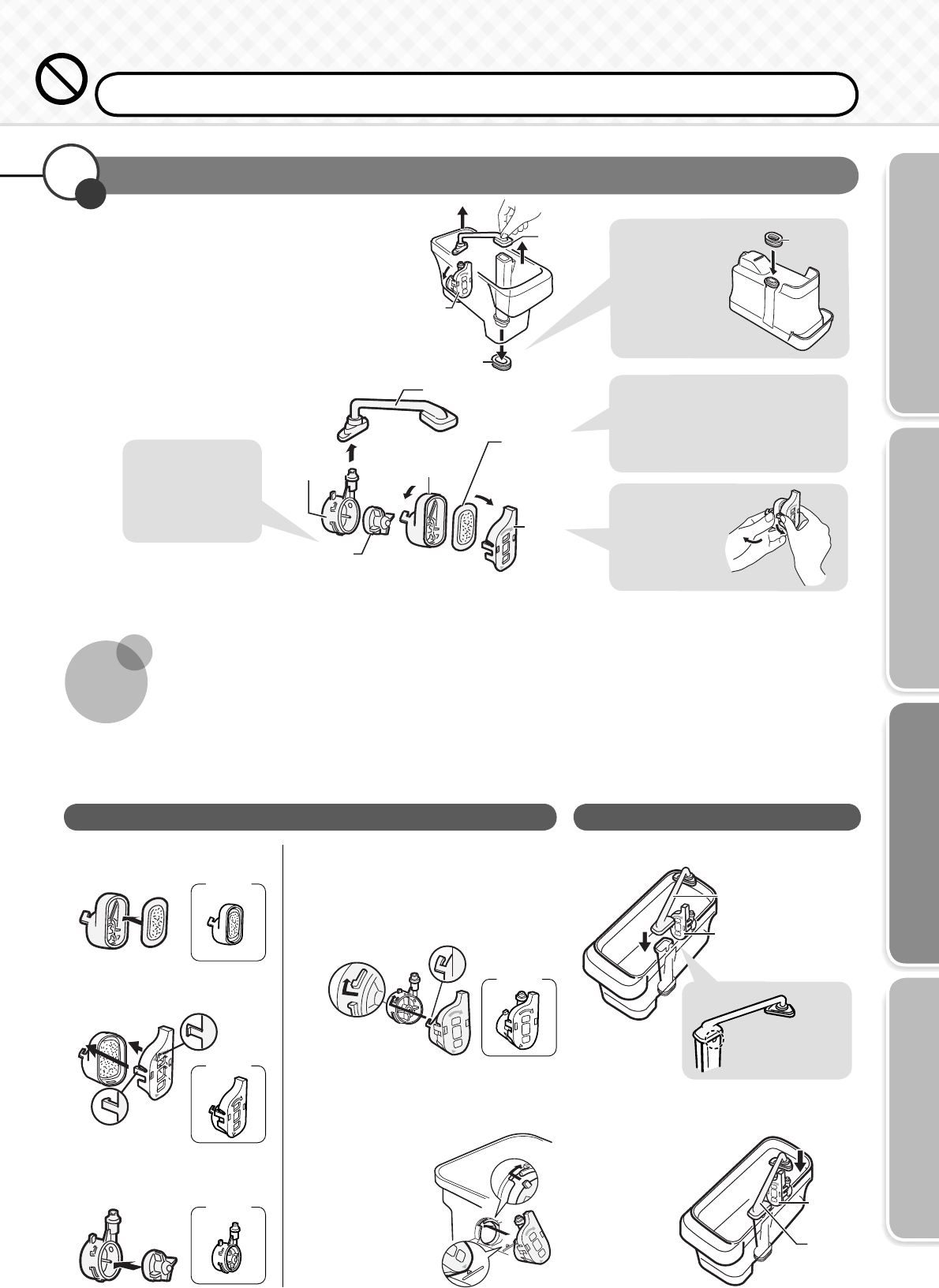

Pipe, water supply pump, and optical catalyst and lead-cleaning fi lter
1
Pull out the pipe and packing,
and rotate and remove the
water supply pump.
2
Disassemble the parts and
wash them.
3
Follow the procedure in reverse to return
the parts to their original positions.
month
once a
Do not use the following for cleaning.
Items such as sponges or scrubbers that may damage surfaces, or cleaners such as alkaline detergents,
scouring powder, boiling water, oil or acid
