The Self-Clean cycle uses high heat to burn
away soil and grease from inside the oven.
During this cycle, the oven will get much hotter
than it does under normal baking and broiling
conditions (see the following chart).
The oven is preset for a 3-
1
/2 hour Self-Clean
cycle. However, you can adjust this cycle time
to between 2-
1
/2 and 4-
1
/2 hours. The chart
shows a normal 3-
1
/2 hour Self-Clean cycle.
Note that although the heating turns off after 3-
hours, the door will remain locked for an addi-
tional
1
/2 hour so the oven can cool sufficiently.
If the latch switch is not satisfied during the
clean operation, the cycle is terminated, and
the display will show “close door” on convec-
tion models. On non-convection models, “door”
will be displayed (see the strip circuit below).
(NORMAL BROILING TEMPERATURE)
DOOR UNLOCKS
(FAN STAYS ON)
DOOR LOCKS
875˚F (468˚C)
CLEANING CYCLE
OVEN SHUTS OFF
TIME (IN HOURS)
START 1 2 3 STOP
TEMPERATURE

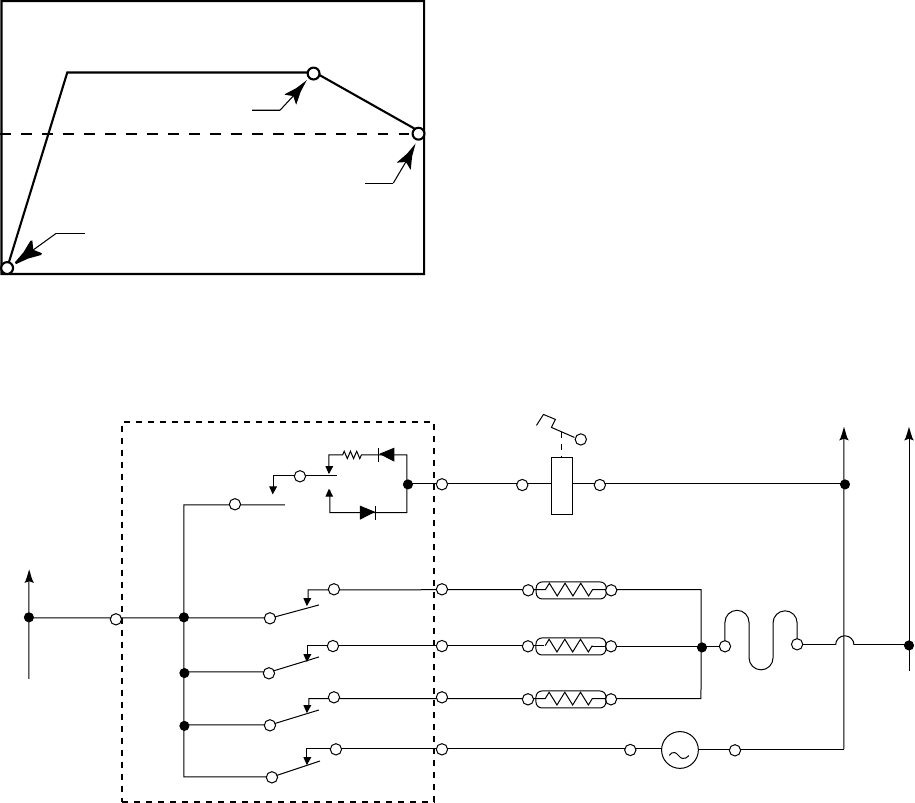

HOW THE SELF-CLEAN CYCLE WORKS
PULSE
RELAY
L1
BK
Y
R
BU
OR
GY/W
LOCK
UNLOCK
DOOR LOCK
SOLENOID
BAKE–2000W
OUT BROIL–1000W
IN BROIL–1667W
M
W
W
NL2
R
25A/240V
T.O.D.
R/W
BU
OR
BLOWER
