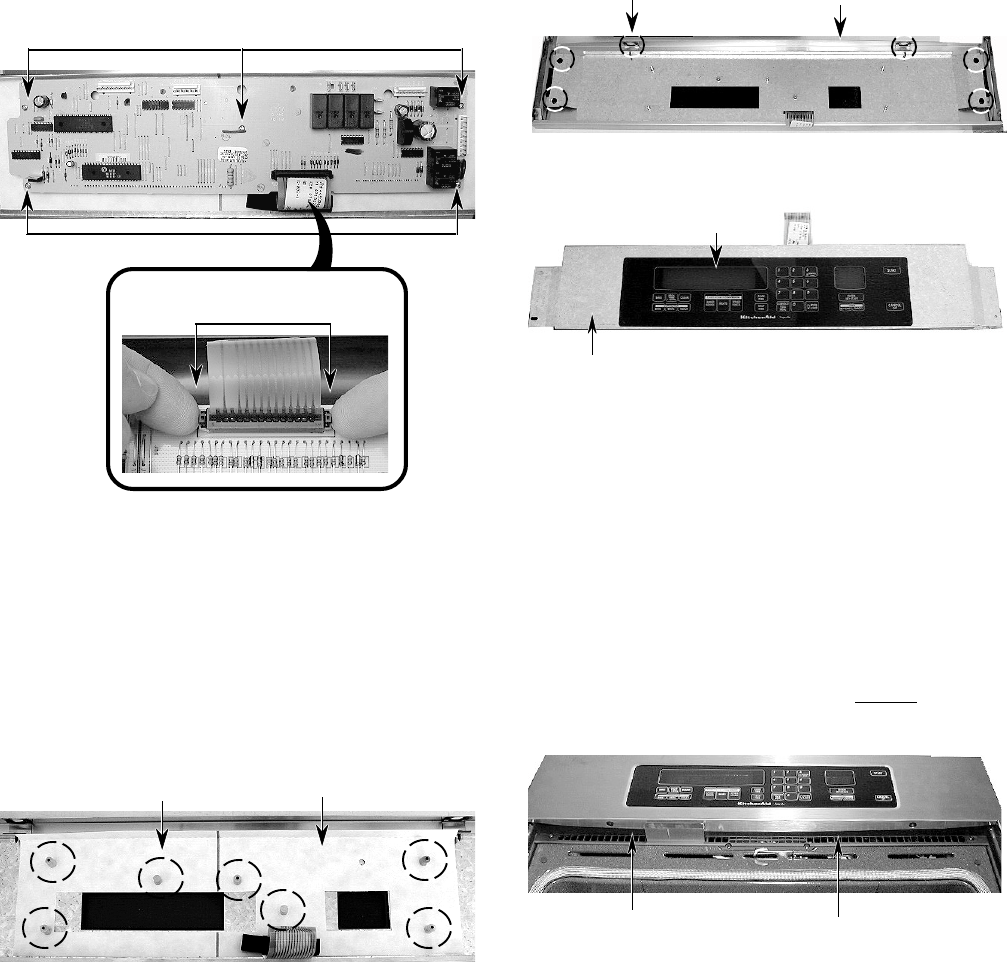

8. To remove the oven control/display
boards:
a) Remove the five mounting screws.
Screws
Screws
Lift Ends Of
Locking Arm
b) Lift the ends of the locking arm and
disconnect the ribbon cable from its
connector.
NOTE: The control and display boards are
designed to be replaced as an assembly.
9. To remove the touch panel assembly:
a) Remove the seven spacers and the
cardboard shield from the panel.
b) Remove the six screws from the control
panel bracket and remove the bracket.
Spacer (1 of 7) Cardboard Shield
c) Peel the touch panel off the bracket.
Control Panel Bracket
Bracket Screw (1 of 6)
Touch Panel
REASSEMBLY NOTE: When you reinstall the
oven control panel, use the following proce-
dure (refer to the photos on the previous page,
as necessary):
1. Reconnect the wiring to the control board
terminals.
2. Hook the ends of the control panel over
the rubber tips of the brackets.
3. Push the bottom of the control panel in and
position the plastic air duct under the lip of
the panel.
4. Align the mounting holes and install the
two side screws in the control panel.
Bottom Lip Of Control Panel
Air Duct
Bracket
