Chapter 4 Retrofitting Options
To Retrofit A5 DC Power Input Assembly (Option 002)
Assembly-Level Service Guide 4-9
4
b. Position A5 Power Input Assembly against the rear of the
chassis and align it with the two appropriate holes in the rear
of the chassis.
c. Using the four TORX 10 screws (H2), secure A5 DC Power
Input Assembly to the side of the chassis (MP10) as shown in
Figure 4-1C.
11 To install the rear label (MP11), remove the protective seal from
the back of it and press into place making sure to properly align
the label with the holes in the rear of chassis as shown in
Figure 4-1D.

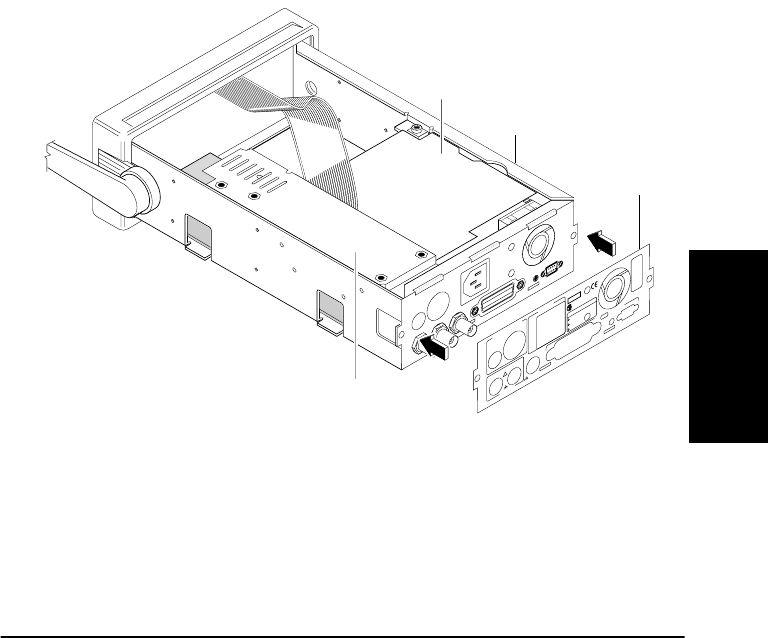

Figure 4-1D. DC Power Input Assembly Retrofitting
12 Re-install the cover by performing the cover removal procedure,
in Chapter 3 of this guide, in reverse.
