HARMONIC FILTER DETAILS SCREEN
(VSD WITH PART NUMBER 371-02767-XXX (60 HZ) OR 371-03700-XXX (50 HZ))
OVERVIEW
This screen displays more detailed in for ma tion per-
tain ing to the IEEE-519 Harmonic Filter.
DISPLAY ONLY
Motor Run (LED)
Indicates whether the digital output from the controls
is commanding the motor to RUN.
Motor Current % Full Load Amps
Displays the motor current as a percentage of the Full
Load Amps (FLA) value. For the Variable Speed Drive
this is the data returned by the VSD Logic board.
Current Limit Setpoint
Displays the current limit value in use. This value could
come from a 0-20mA, 4-20mA, 0-10VDC or 2-10VDC
input in An a log Remote mode, PWM signal in Digital
Remote mode, MicroGateway interface in ISN mode
or a locally pro grammed value.
Pulldown Demand Time Left
Displays the time remaining in the pro grammed pull-
down period if the value is non-zero.
Operating Mode (Run / Stop)
Indicates whether the Harmonic Filter is op er at ing.
VSD Model
Access Level Required: SER VICE
Displays the horsepower for which the attached Har-
mon ic Filter is conÞ gured.
DC Bus Voltage
Displays the DC Bus voltage as measured by the Har-
mon ic Filter.
Supply Contactor (LED)
Indicates whether the output to the Sup ply Contactor
is energized.
Precharge Contactor (LED)
Indicates whether the output to the Precharge Contactor
is energized.
Phase Rotation
Displays the phase rotation detected by the Harmonic
Filter ( A, B, C or C, B, A )
Total Supply KVA
Displays the total supply KiloVolt-Amps mea sured by
the Harmonic Filter.
Baseplate Temperature
Displays the temperature of the Harmonic Filter Base-
plate.
00567VIP

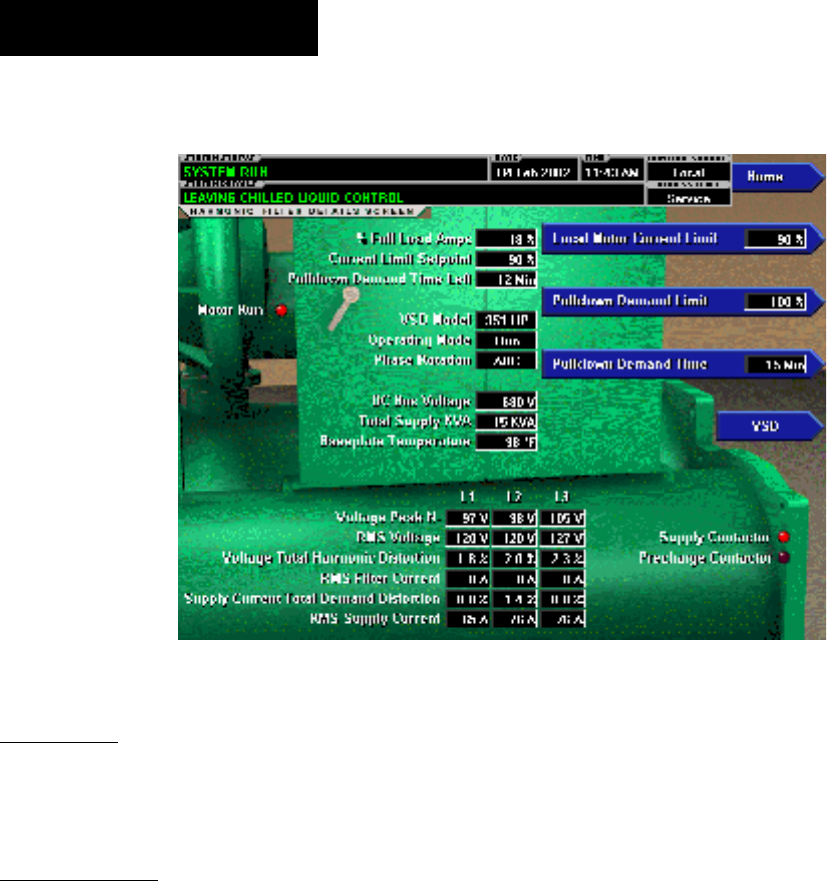

FIG. 24
OptiView Control Center
