Operation, cont’d
SGS 408 Switcher • Operation3-22

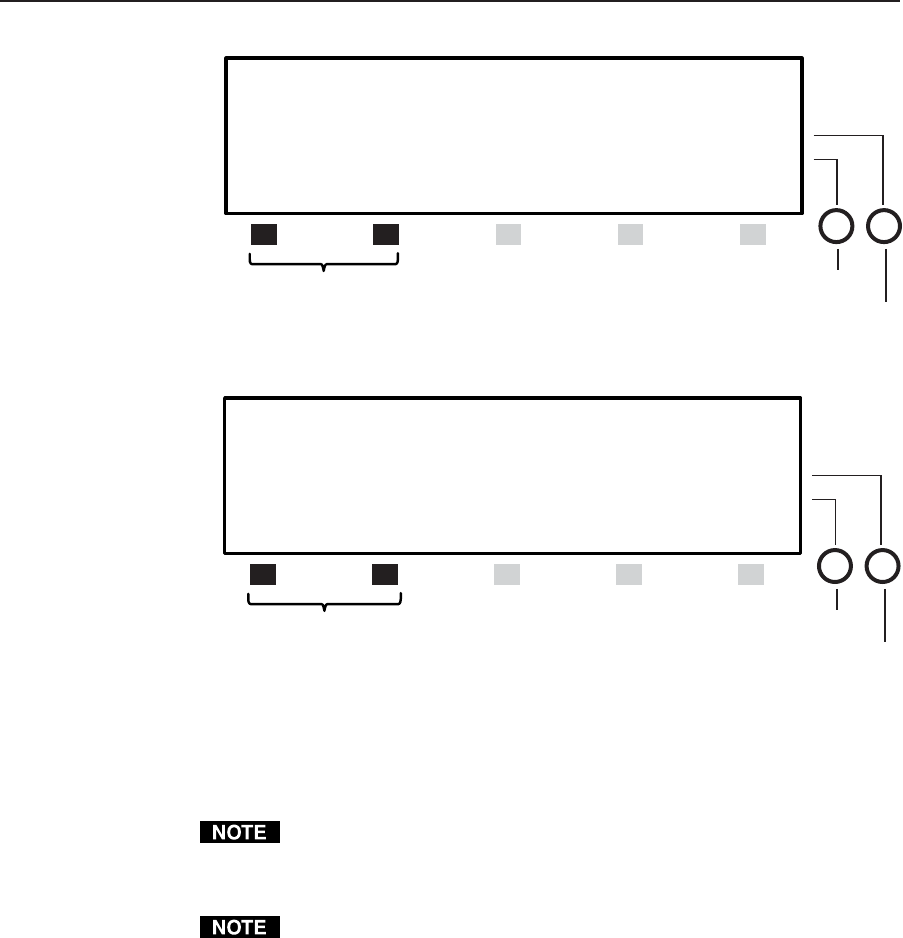

Figure 3-44 — Setting up the Square wipe effect
Figure 3-45 — Setting up the Title effect
3. To select a duration, turn the left adjustment knob until the desired duration
appears. The duration ranges from 0.2 seconds to 5.0 seconds in 0.1 second
increments.
Up to this point, you can cancel an effect by pressing the Esc button.
4. To select a transition, press its button (see “Available effects” on page 3-16).
The default screen appears.
The dissolve and title effects have no transitions to select. To accept the
effect, press the Take button.
Implementing an established effect
To implement an effect that has been set up (other than a title — see
“Implementing a title” on the next page), do the following:
1. Press the preview input button to display the preview image on the preview
monitor.
2. Press the Effect button for the desired effect. (If the button is already lit, you
do not need to press it.)
3. Verify that the selected effect and its transition, as displayed in the top right
of the default screen, are correct.
4. If desired, override the duration by turning the left adjustment knob.
5. When you want the effect to occur, press the Take button. The Take button
lights, the effect occurs during the time specified by the duration, and the
Take button light turns off.
8 XXX.XX KHz XX.XX Hz H Wipe
4 XXX.XX KHz XX.XX Hz Lt to Rt
1280 X 1024 @ 60 Hz Title
True(DVI) only 3.4 Seconds
Window Key Esc
Select a transition
Select effect
Select duration
8 XXX.XX KHz XX.XX Hz H Wipe
4 XXX.XX KHz XX.XX Hz Lt to Rt
1280 X 1024 @ 60 Hz Square
True(DVI) only 3.4 Seconds
In Out Esc
Select a transition
Select effect
Select duration
