Model EEE-141,142, 143, 144

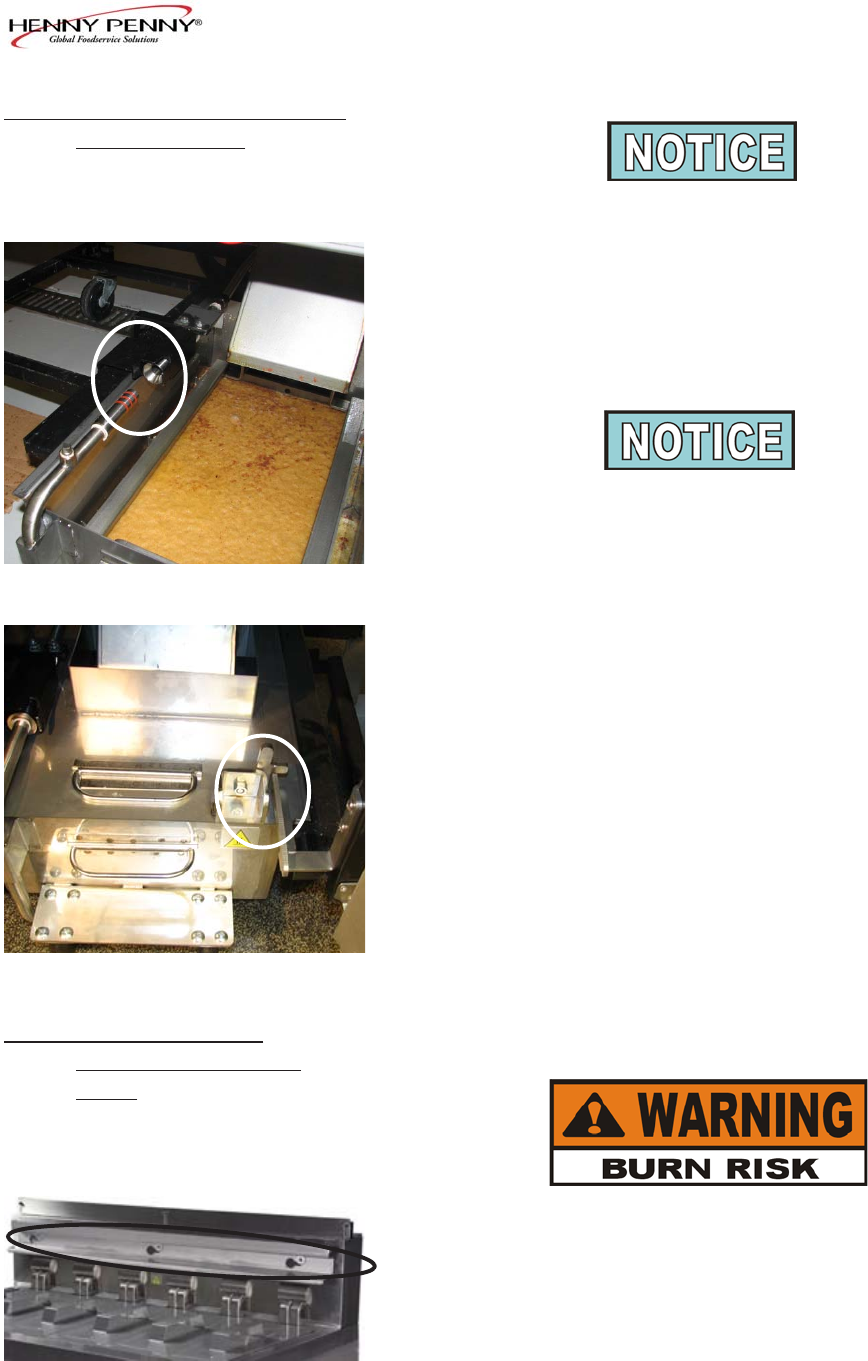

3-15. CHANGING THE FILTER
PAD (Continued)
Be sure that the drain pan, bottom screen, crumb catcher,
and the retaining ring are thoroughly dry before placing filter
pad into pan as water will dissolve the filter pad.
9. Reassemble in reverse order, placing the bottom screen into the
filter pan first, followed by the filter pad, retaining ring and the
crumb catcher.
Before pushing the filter drain pan back into position, lubricate
the o-rings (Figure 9) on the filter tube with cold oil. Check
o-rings for tears or nicks and replace if necessary.
See Section 3-16.
10. Push the filter pan assembly back underneath the fryer, making
sure the filter tube on the pan makes a good connection with the
fitting underneath the fryer. Figure 9.
11. Make sure the drain pan stop is engaged and the fryer is now
ready for normal operation. Figure 10.
The basket rest, on the rear shroud of the fryer, should be removed
and cleaned periodically.
Use protective gloves when removing the basket rest. The
basket rest may be hot and burns could result.
Grasp the basket rest with 2 hands and pull it off the “key-ways”.
Take it to a sink and clean it with soap and water. Dry thoroughly.
Clean the area behind the basket rest and then reinstall the basket
rest.
209 3-20
Figure 9
Figure 10
3-16. REMOVING AND
CLEANING BASKET
REST
