Operation
27
Blodgett IQ2T Cont rol
3
2
6
7
10
5
11
12
14
1
8
15
16
17
13
9
4
Figure 15

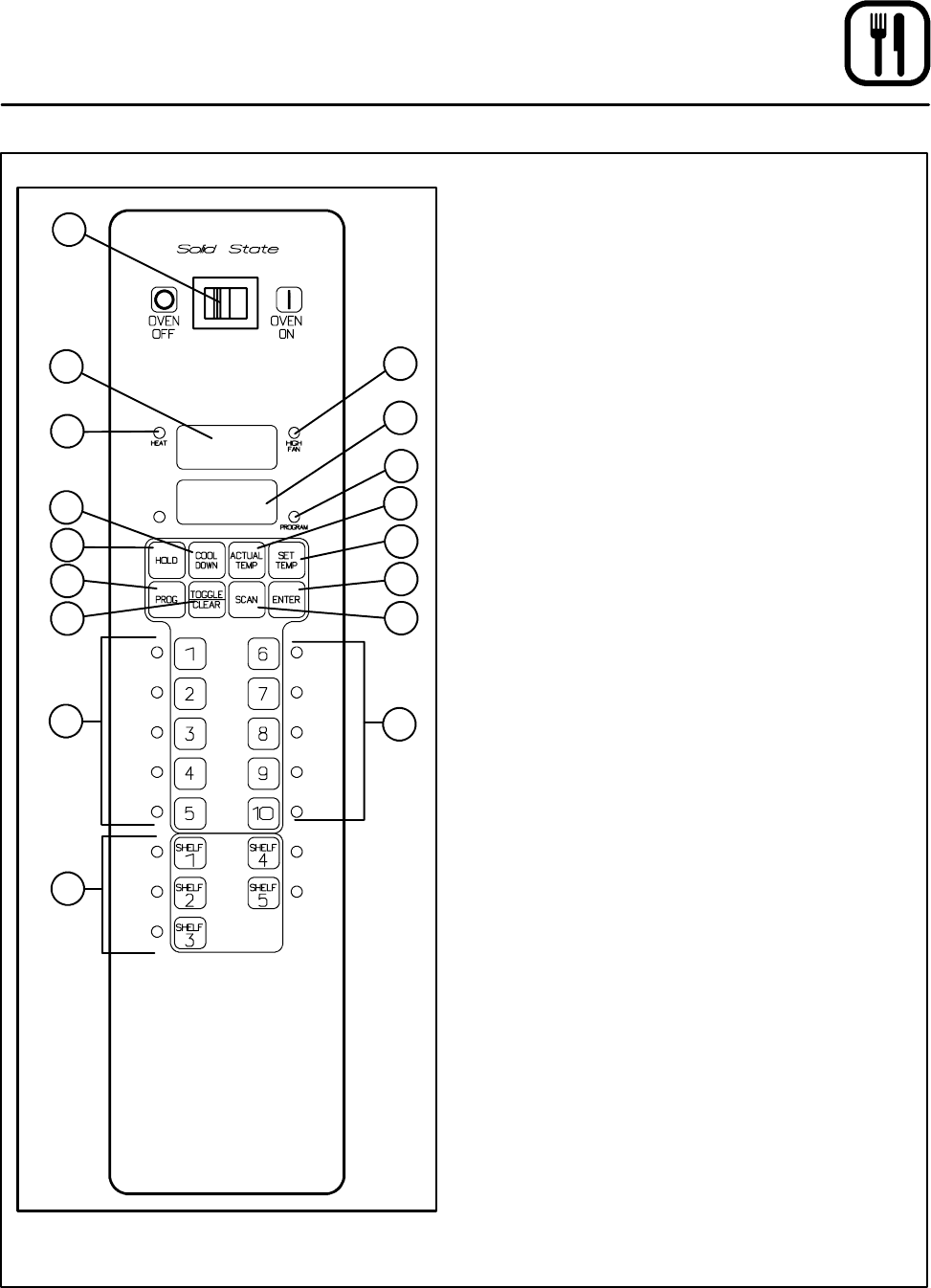

COMPONENT DESCRIPTION
1. OVEN POWER SWITCH --- controls power to
the oven.
2. TOP DISPLAY --- displays temperature and
other controller related information.
3. FAN HI LED --- when lit indicates the fan is run-
ning at high speed.
4. B OT TOM D ISPLAY --- d i spl a ys coo k t i me a n d
other controller related information.
5. PROG LED --- when lit indicates the controller
is in the programming mode.
6. HEAT LED --- when lit indicates the control is
calling for heat.
7. COOL DOWN KEY --- press to enter the cool
down mode.
8. HOLD KEY --- press to enter hold mode.
9. PROG KEY --- press to enter the programming
mode.
10. TOGGLE/CLEAR KEY --- press during pro-
gramming to toggle options.
11. ACT TEMP KEY --- press to display the actual
oven temperature.
12. SET TEMP KEY --- press to display the pro-
grammed cook temperature for the current
stage of the product key.
13. ENTER KEY --- press to enter new values into
product key programming. Also used to view
recovery time.
14. SCAN KEY --- completes the programming for
the current parameter and advances the con-
troller to the next parameter. Press to view time
remaining on multiple cook cycles.
15. PRODUCT LEDS --- when lit indicate which
product keys are currently in use or pro-
grammed for the current oven temperature
and fan speed.
16. PRODUCT KEYS --- assigns a key to a pro-
grammed recipe and begins a programmed
cooking process.
17. SHELF KEYS --- assigns a shelf key.
