Measurement Functions 3M™ Dynatel™ Advanced Modular System 965AMS
TDR>Controls
Cable Length

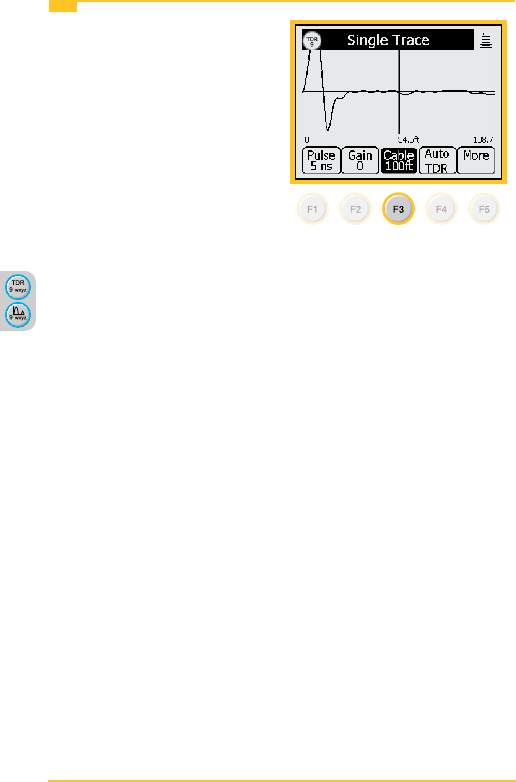

1. The Length allows you to
set the distance from the
left side of the screen to the
right side.
The lengths that you may
use are:
100 ft
200 ft
500 ft
1,000 ft
2,000 ft
5,000 ft
10,000 ft
20, 000 ft
30,000 ft
2. The left side of the screen is usually at the test set and the
right side is the furthest distance that can be displayed with
the length selected.
Screen Pan
1. The start and stop numbers shown in the distance bar are the
distances represented at the left and right side of the screen.
2. If you move the cursor to the right side of the screen, the
screen will “pan” to the right.
3. If you move the cursor to the left side of the screen the
screen will “pan” to the left until it reaches Zero.
