21
INSTALLATION
To install overlay
panels, see the
detailed procedures
outlined in the
Sub-Zero Built-In
Installation Guide.
ACCESSORIES
Optional accessories
are available
through your
Sub-Zero dealer.
HANDLE HARDWARE
Overlay models come without handle hardware.
The beauty of this design is that you can match
the surrounding cabinet hardware. You or the
cabinet manufacturer must provide handle
hardware to match the overall decorating
scheme.
The handle hardware must be installed before
installing the panel assembly. Use larger D-style
handles. If screws with thick heads are used,
the screws will need to be countersunk into the
door before the panel is put into place.
IMPORTANT NOTE: Sub-Zero does not recom-
mend using single pull knobs on any of its Built-
In models.

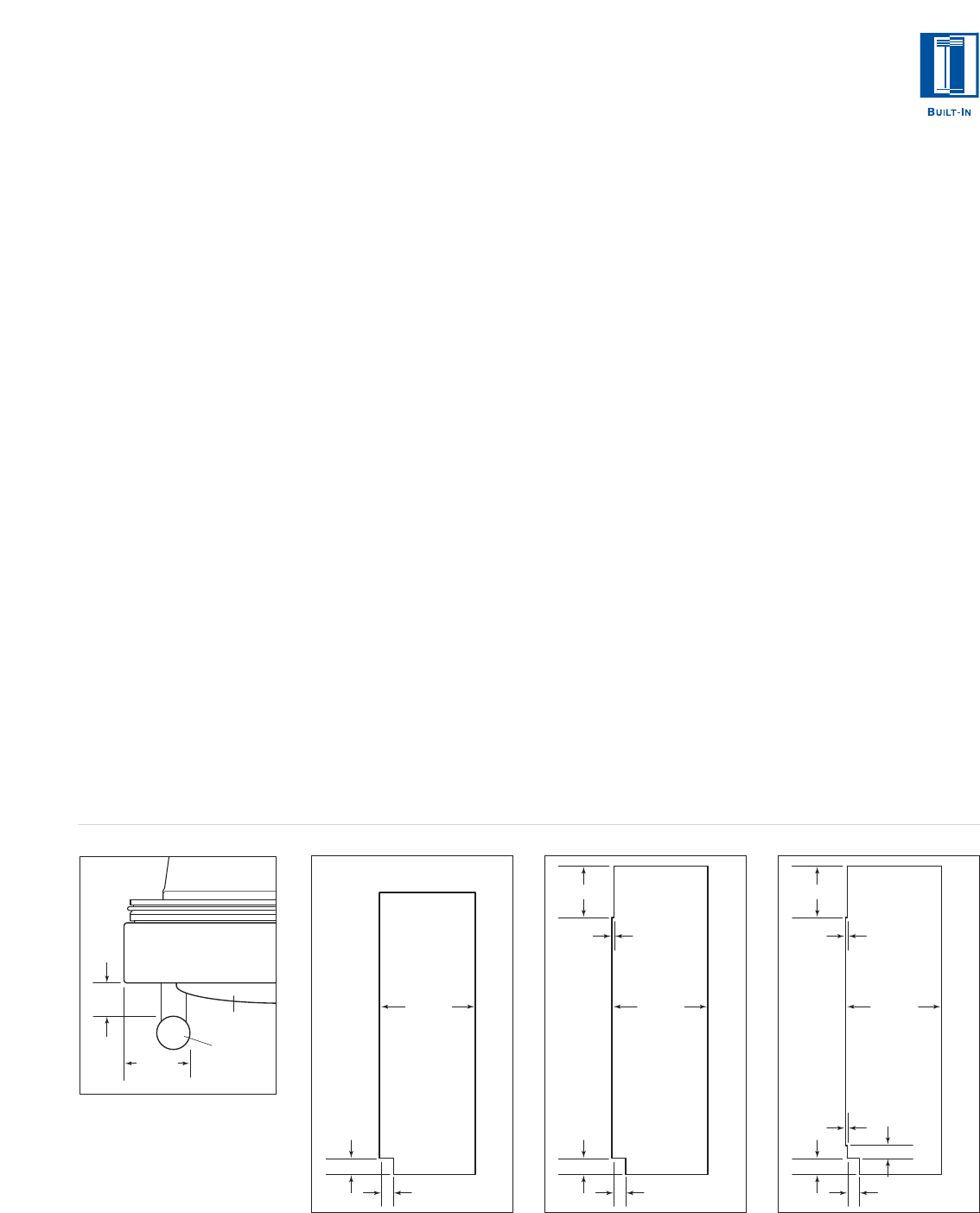

For overlay Models I685 and I695, mounting
placement of the refrigerator door handle must
assure proper access to the glasswell and
adequate clearance under the handle. Illustration
8 shows placement of the refrigerator door
handle in relationship to the glasswell bezel on
stainless steel models.
Optional stainless steel handles are available in a
variety of diameters and lengths, as are handles
to match the color and style of Wolf ovens.
Contact your Sub-Zero dealer for specifics.
Refer to the full-scale illustrations at the end of
this section for handle hardware considerations.
SIDE PANELS
Side panels can be used with the overlay and
stainless steel design applications. When
planning for side panels with the installation of a
Built-In model, you need to be aware of space
configuration to achieve a pleasing fit. Depend-
ing on the exact panel you are using with your
unit, the height of the panel will vary.
Cut-outs around the toe kick and grille area are
required if a 6 mm thick panel will be inserted
into the main frame channel. The panel will need
to be 610 mm deep. If a 10 mm thick panel is
used, the panel will abut the main frame and
should be 606 mm deep. Refer to illustrations
9–11 below for placement of toe kick and grille
area cut-outs for your specific model. These
dimensions do not apply to Models ICB648PRO
and ICB648PROG.
The toe kick area may or may not be cut out
depending on the look you want to achieve.
IMPORTANT NOTE: The use of side panels may
change the width of your rough opening.
102 mm
76 mm
606 mm
BEHIND FRAME
Illus. 9—Models I601R,
I601RG and I601F
51 mm
Glasswell
Profile
Handle
Profile
25 mm
Illus. 8
337 mm
102 mm
6 mm
6 mm
76 mm
76 mm
606 mm
BEHIND FRAME
Illus. 11—Models I661, I642,
I632, I685 and I695
337 mm
102 mm
6 mm
76 mm
606 mm
BEHIND FRAME
Illus. 10—Models I611, I611G,
I650 and I650G
