IMPORTANT NOTE: The glass door opening of
the standard Models I427 and I427R is designed
to be exposed to room air circulation. Decorative
overlays on the glass should be kept to a
minimum. While the cabinet front stiles are a
minimum of 57 mm for both Models I427 and
I427R, the top and bottom rails are different.
Rails and stiles can be increased in size but
should not exceed cabinet manufacturers‘
standard width. They cannot exceed overall door
panel dimensions specified, as they would inter-
fere with the operation of the door. The back
sides of rails and stiles that will be visible
through the glass door will need to be finished.
Also, the inside edges of the frames must be
finished to match the front surface.
IMPORTANT NOTE: The inside edges of the
rough opening will need to be finished as they
will be exposed when the doors are open.
NOTE: 13 mm ADJUSTMENT IN LEVELING LEGS

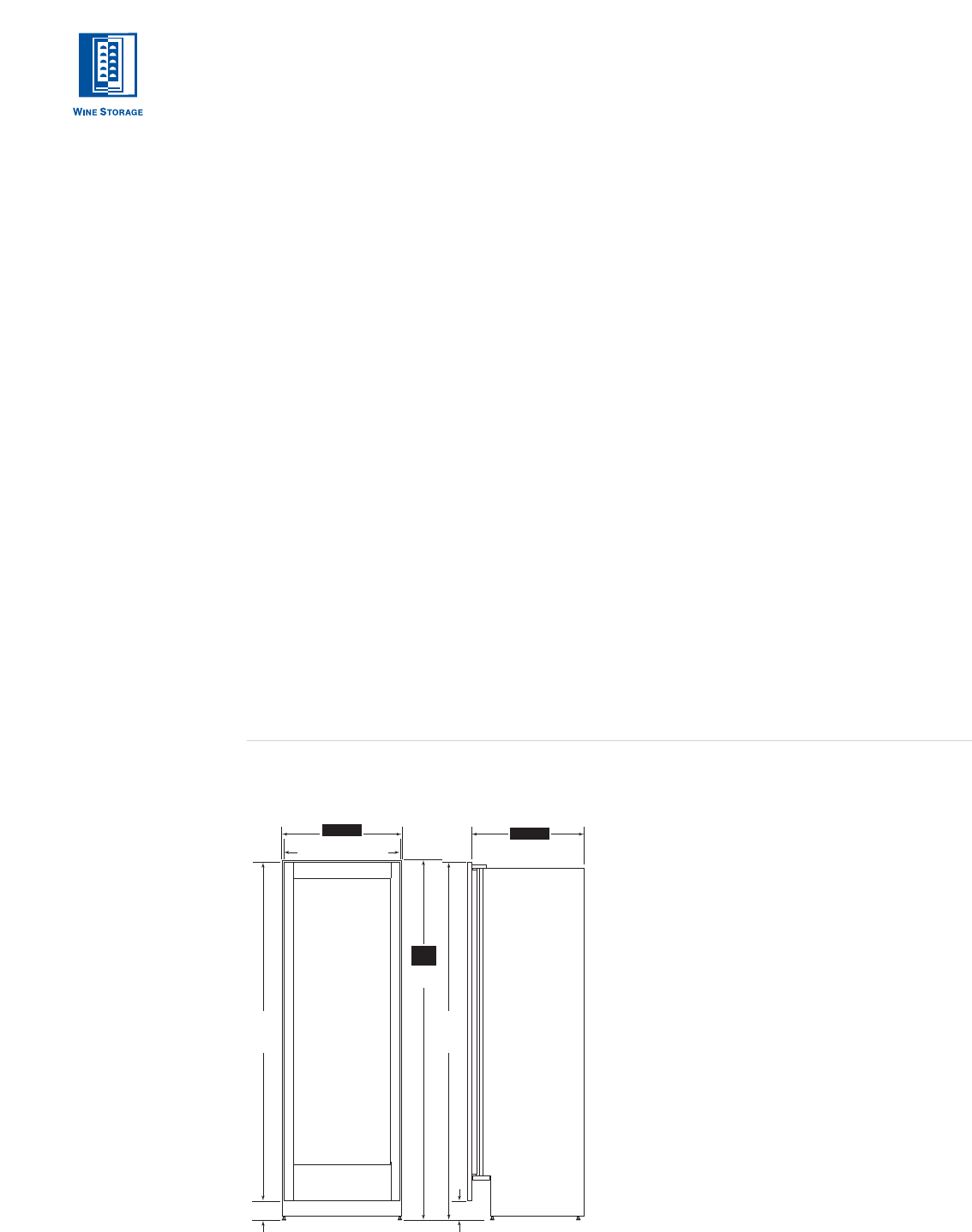

FRONT VIEW SIDE VIEW
(UNIT DIMENSION)
679 mm DOOR PANEL
2029
mm
TRIMMED
DOOR
FINISHED OPENING
TOE KICK
102
mm
TOE KICK
FINISHED
OPENING
DOOR
PA NEL
686 mm
610 mm
2032
mm
1927
mm
102
mm
INTEGRATED PANEL SPECIFICATIONS
Model I427
Door Panel Width 679 mm
Door Panel Height 1927 mm
Min Width of Top Rail 95 mm
Min Width of Bottom Rail 203 mm
Min Width of Stiles 57 mm
Door Frame Panel Weight Limit 9kg
Min Panel Thickness 16 mm
CABINETRY DIMENSIONS
Model I427
INTEGRATED PANELS –
MODELS I427 | I427R
The integrated frame panels for glass doors for
these models will follow some of the identical
planning processes used with the Integrated line.
The installation of the door panels is completely
different, however. Rather than using the
mounting hardware we used with the Integrated
line, door panels for both Models I427 and I427R
will be applied with screws applied through our
door.
The drawer panels for the Model I427R will be
applied using the Integrated technique of
mounting brackets.
Refer to the Overall Dimensions and Cabinetry
Dimensions illustrations for Models I427 and
I427R to give you a better idea of the exact
space our unit needs and how the panel fits in
relationship with the unit.
IMPORTANT NOTE: The depth of Models I427
and I427R is 610 mm from the front of the unit
to its back. You must allow for the thickness of
the panel you are applying when planning for the
finished rough opening depth if you want the
front panel to be flush with surrounding cabi-
netry. You may have to move the unit back into
the drywall or bring the cabinets forward. Refer
to pages 37–43 of the Integrated section.
ACCESSORIES
Optional accessories
are available
through your
Sub-Zero dealer.
