DRAIN PUMP – MODEL 315IP
This ice maker comes with a built-in drain pump.
The drain and inlet water tubes must be
plumbed before connecting to the ice maker. An
air gap will likely be required between the ice
maker drain tube and the drain/waste receptacle.
A stand pipe with a trap below it would be
acceptable for the drain/waste receptacle. Refer
to the illustrations below.
IMPORTANT NOTE: Poor drainage will cause a
high rate of ice melting in the bin.
DOOR PANEL – MODEL 315IP
It is important to understand the differences in
mounting any wood panel to the Model 315IP.
Refer to the installation instructions packaged
with the unit to understand how the panel is
installed. It does not require a 6 mm backer.
Door panel dimensions are 381 mm wide by
772 mm high and must be a minimum of 16 mm
thick. The maximum door panel weight is 7 kg.
No handle recess is required.
INSTALLATION
Refer to the
installation instruc-
tions shipped with
each Sub-Zero
product for detailed
specifications.

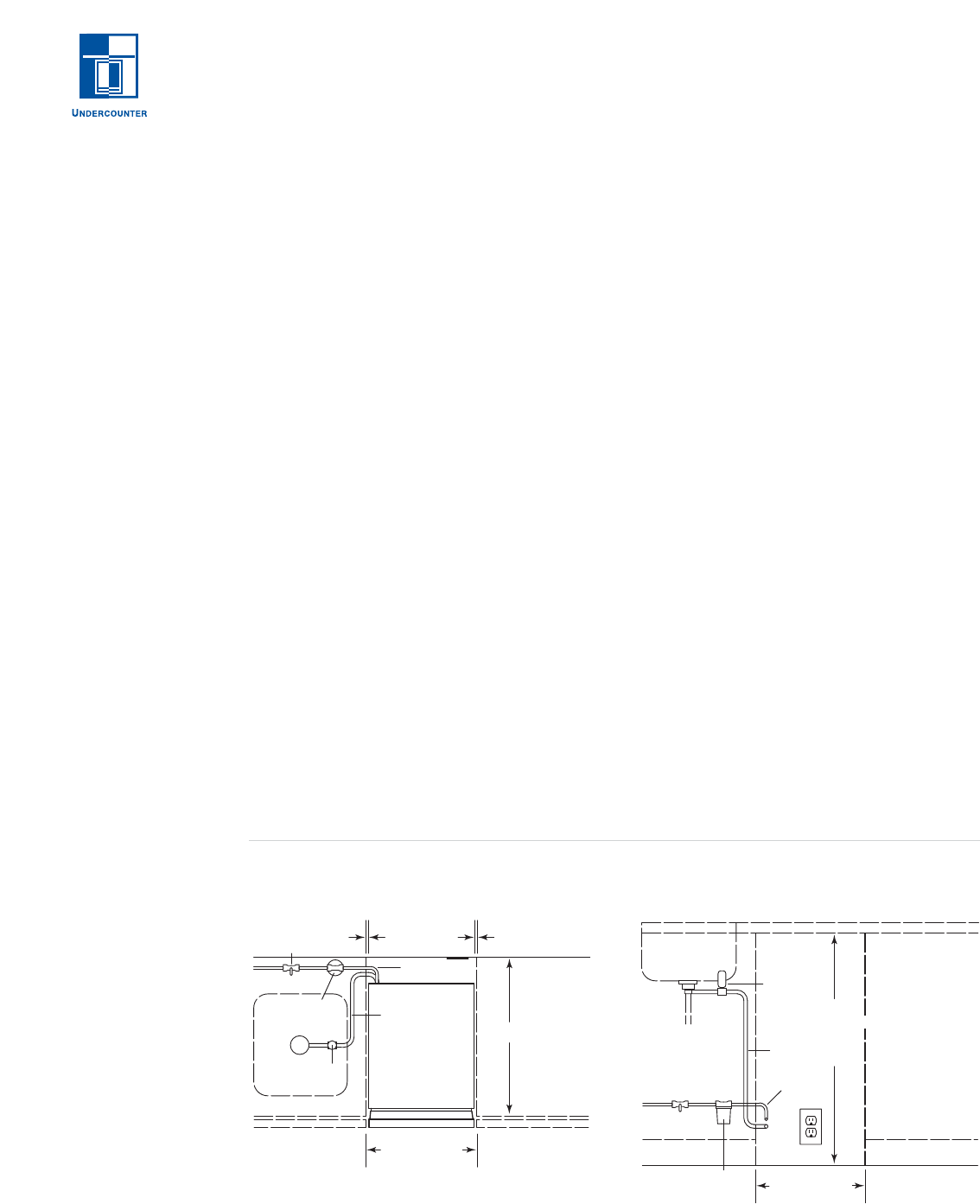

INSTALLATION SPECIFICATIONS
Model 315IP – Drain Pump
TOP VIEW
SHUT-OFF
VALVE
WATER
FILTER
WATER
INLET TUBE
DRAIN
TUBE
AIR GAP
DEVICE
609 mm
387 mm
MIN.
3 mm
FRONT VIEW
SHUT-OFF
VALVE
WATER
FILTER
WATER
INLET TUBE
AIR GAP
DEVICE
DRAIN
TUBE
387 mm MIN.
876 mm
NOMINAL
857 mm
MIN.
