OVERLAY PANELS – MODEL I424
The overlay panel applied to Model I424 should
not be confused with the Built-In overlay panel
application. The overlay panel will consist of only
a frame and would be either the 16 mm or 19
mm thick panel you may be using. It is affixed
directly to the door itself with screws through a
series of pre-drilled holes in the perimeter of the
door itself. You do not need any backer or
spacer panel.
Refer to the Overall Dimensions and Cabinetry
Dimensions illustrations for Model I424 to give
you a better idea of the exact space our unit
needs and how the panel fits in relationship with
the unit.
The glass door opening of the standard Model
I424 is designed to be exposed to room air circu-
lation. Decorative overlays on the glass should
be kept to a minimum. Also, rails and stiles can
be increased in size but should not exceed
cabinet manufacturers‘ standard width. They
cannot exceed overall door panel dimensions
specified, as they would interfere with the oper-
ation of the door. The back sides of rails and
stiles that will be visible through the glass door
will need to be finished. Also, the inside edges
of the frames must be finished to match the
front surface.
The Overall Dimensions illustrations show the
location of predrilled holes for optional handle
hardware. Refer to page 60 for specifics about
installing handles on this overlay application.
IMPORTANT NOTE: When planning to install the
Model I424 next to adjoining cabinetry, you must
make provisions to allow the door to open to a
maximum of 145˚ and not interfere with the door
panel. Refer to the full-scale illustration at the
end of this section.
*
13 mm ADJUSTMENT IN LEVELING LEGS
**
MODEL I424/S (STAINLESS STEEL WRAPPED DOOR) FINISHES OFF AT 606 mm DEEP

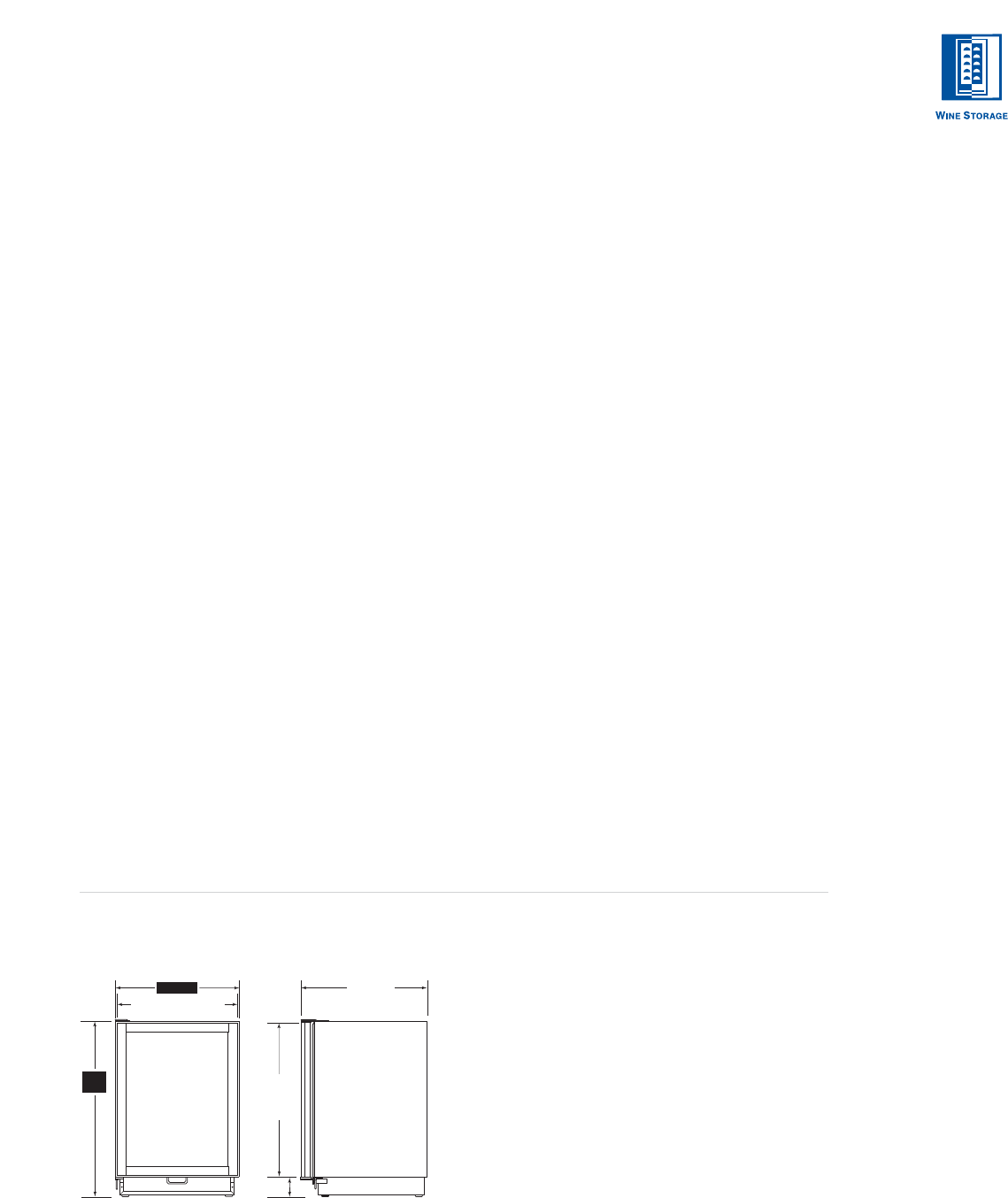

FRONT VIEW SIDE VIEW
(CABINET DIMENSION)
603 mm DOOR PANEL
764 mm
DOOR
PANEL
CENTERED
VERTICALLY
606 mm**
TOE
KICK
102
mm
606 mm
877
mm*
OVERLAY PANEL SPECIFICATIONS
Model I424
Door Panel Width 603 mm
Door Panel Height 764 mm
Min Width of Rails and Stiles 57 mm
Door Frame Panel Weight Limit 5kg
Min Panel Thickness 16 mm
CABINETRY DIMENSIONS
Model I424
INSTALLATION
To install overlay
panels, see the
detailed procedures
outlined in the
Sub-Zero Wine
Storage Installation
Guide.
