PLANNING INFORMATION
Refer to the Installation Specifications for infor-
mation regarding area requirements, minimum
door clearance, placement of electrical and
plumbing (Models UC-24C and 315IP).
PLUMBING REQUIREMENTS
For Models UC-24C and 315IP, rough in the
water supply line. Connect a 6.35 mm OD
copper line to the house supply with an easily
accessible shut-off valve between the supply
and the unit. A minimum of 660 mm of copper
tubing is required for the water line.
Do not use self-piercing valves. A saddle valve
kit (4200880) is available from your Sub-Zero
dealer. An in-line filter is required when water
conditions have a high sediment content.
The ice maker operates on constant water
pressure between 1.4 bar and 6.9 bar.
IMPORTANT NOTE: In some cases, a reverse
osmosis water filter system may not be able to
maintain the minimum pressure consistently.
ELECTRICAL REQUIREMENTS
A 115 V AC, 60 Hz, 15 amp circuit breaker and
electrical supply are required. A separate circuit,
servicing only this appliance is required.
All Undercounter models are equipped with a
power supply cord with a 3-prong grounding
plug, which must be plugged into a mating
3-prong grounding-type wall receptacle. Follow
local codes and ordinances when installing the
receptacle. Refer to the Installation Specifica-
tions illustrations.
IMPORTANT NOTE: The Model UC-24RO is
designed and safe for use in outdoor applica-
tions. When installed outdoors, a ground fault
circuit interrupter (GFCI) is required to reduce
the risk of electrical shock. A GFCI is not
recommended for use with other Undercounter
models and may cause interruption of operation.

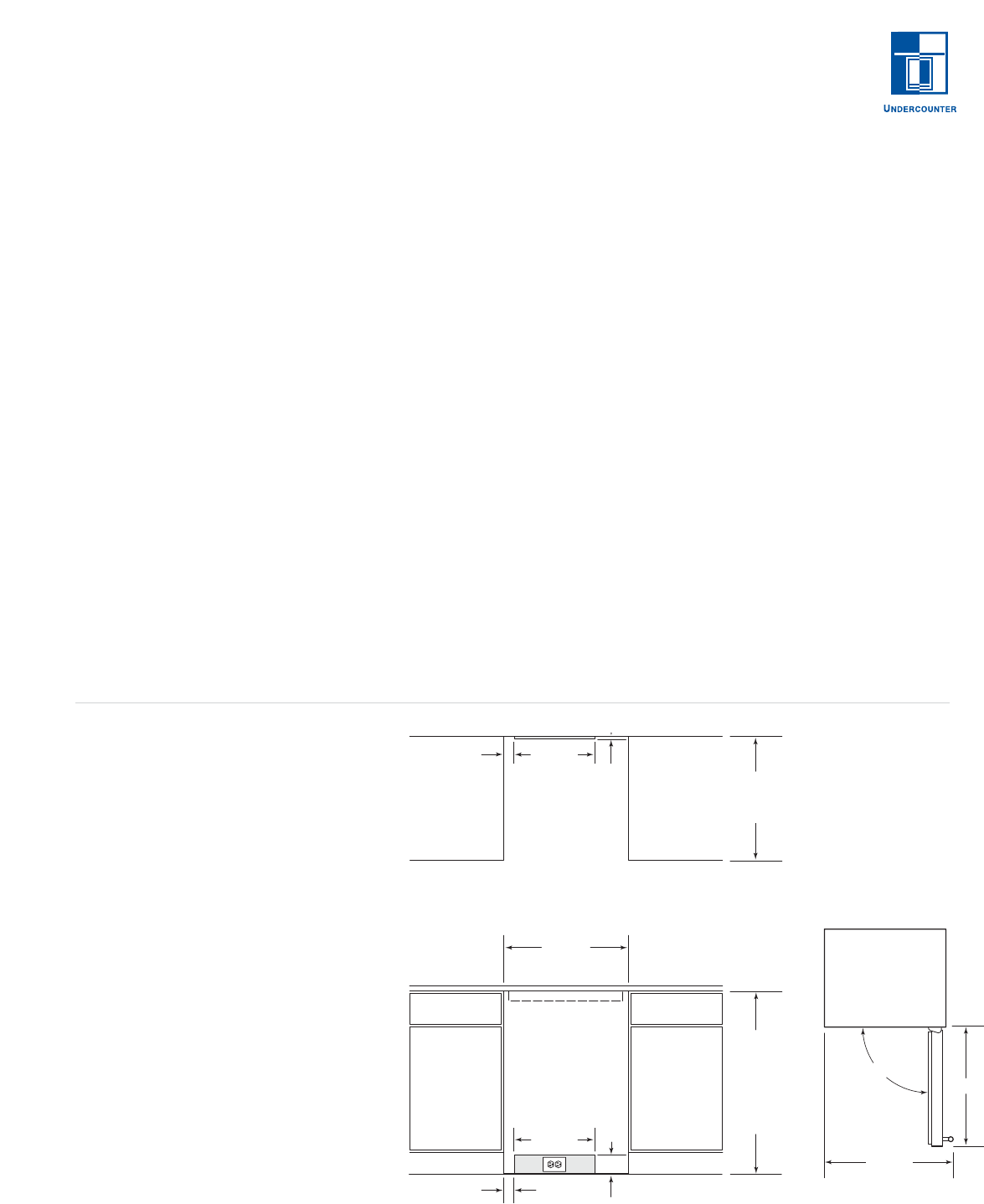

876 mm
ROUGH
OPENING
HEIGHT
870 mm
MINIMUM
HEIGHT
REQUIRED
610 mm
ROUGH OPENING
WIDTH
394 mm
610 mm
ROUGH
OPENING
DEPTH
LOCATE ELECTRICAL
AND WATER LINE
(MODEL UC24C ONLY)
WITHIN SHADED AREA
LOCATE WATER LINE
(MODEL UC24C ONLY)
WITHIN SHADED AREA
76
mm
51 mm
394 mm
13 mm
51 mm
TOP VIEW
FRONT VIEW
ANTI-TIP BRACKET
INSTALLATION SPECIFICATIONS
Undercounter Models
Overall Dimensions
Overall Width 606 mm
Overall Height 864 mm
Overall Depth 610 mm
Finished Opening Dimensions
Opening Width 610 mm
Opening Height 876 mm
Opening Depth 610 mm
Door Swing Clearance 645 mm
Model 315IP
Min Door Clearance 387 mm
Water Supply 203 mm
Models without an ice maker will not require
the water line connection.
For Model 315I(P), the electrical supply can
be located anywhere on the back wall.
Door swing clearance based on stainless
steel door panel and handle dimensions.
MODEL OPTIONS
Model UC-24R
All Refrigerator
Model UC-24B
All Refrigerator
Beverage Center
Model UC-24C
Refrigerator | Freezer
with Ice Maker
Model UC-24RO
All Refrigerator
Outdoor Model
Model 315IP
Ice Maker with
Drain Pump
90˚
660 mm
DOOR CLEARANCE
644 mm
