PANEL CONSIDERATIONS

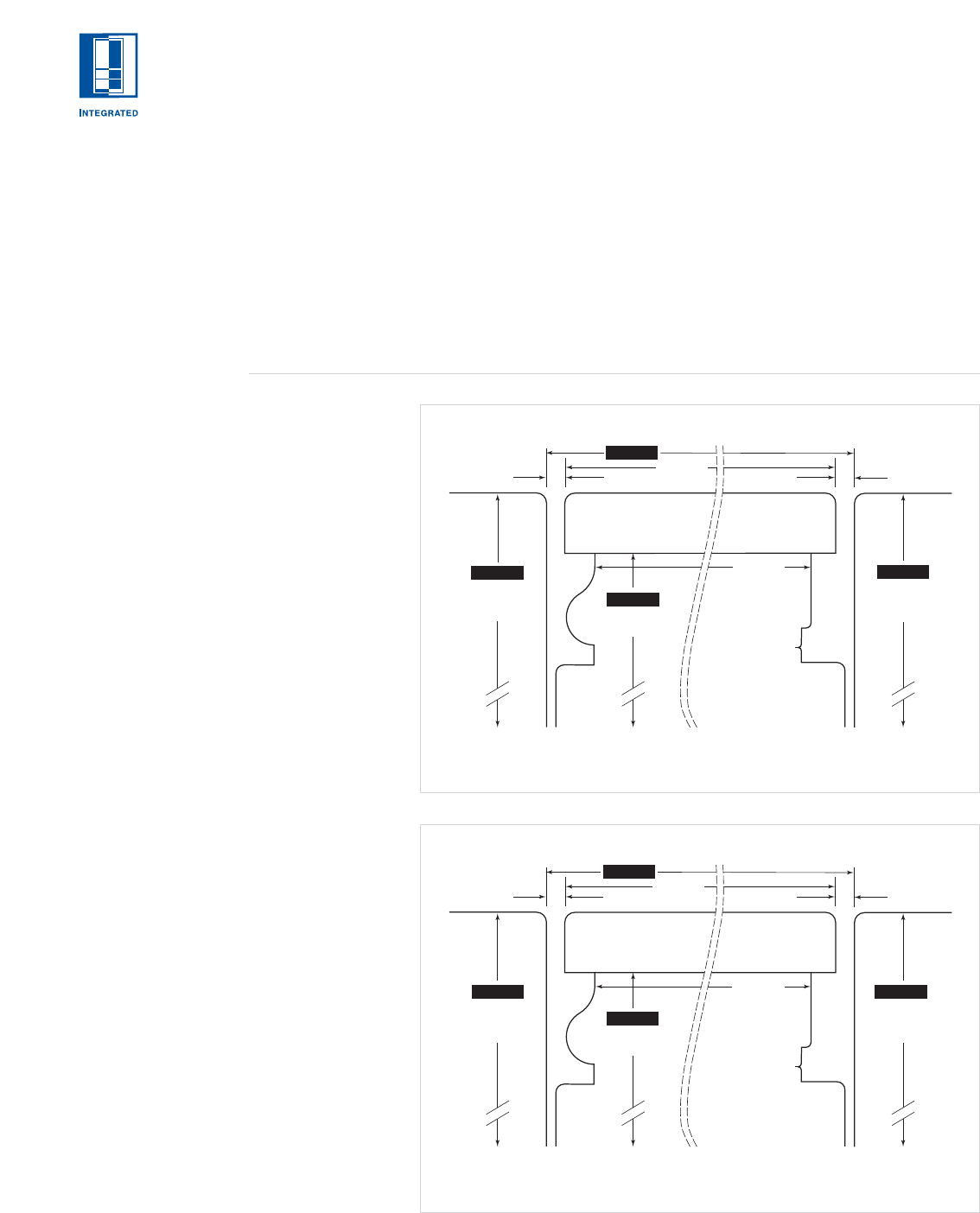

The illustrations below provide panel width
dimensions for installation of a single tall unit,
686 mm and 914 mm wide models.
Illustrations on the following page provide panel
width dimensions for installing two tall units
side by side, 686 mm wide models and 914 mm
wide models.
679 mm
APPLIANCE
DOOR WIDTH
SUB-ZERO
UNIT
TO BACK
OF UNIT
657 mm
686 mm
CABINETRY
OR SIDE
PA NE L
CABINETRY
OR SIDE
PA NE L
REVEAL REVEAL
*SUBTRACT PANEL WIDTH FROM CABINETRY OPENING TO DETERMINE ACTUAL WIDTH OF REVEAL
635 mm
635 mm
610 mm
19 mm
PA NE L
3 mm* min 3 mm* min
908 mm
APPLIANCE
DOOR WIDTH
SUB-ZERO
UNIT
TO BACK
OF UNIT
886 mm
CABINETRY
OR SIDE
PA NE L
CABINETRY
OR SIDE
PANEL
*SUBTRACT PANEL WIDTH FROM CABINETRY OPENING TO DETERMINE ACTUAL WIDTH OF REVEAL
914 mm
635 mm 635 mm
REVEAL
3 mm* min
REVEAL
3 mm* min
19 mm
PA NE L
610 mm
IMPORTANT NOTE: The depth of each
Integrated model is 610 mm from the front of
the unit to its back. You must allow for the
thickness of the panel you are applying when
planning for the finished rough opening depth if
you want the front panel to be flush with
surrounding cabinetry. You may have to move
the unit back into drywall or bring the cabinets
forward to achieve a flush fit.
914 mm
WIDE MODELS
Panel width dimen-
sions for installation
of a 914 mm wide
tall unit.
Dimensions are based
on a 3 mm reveal. A
reveal of up to 6 mm
is possible, but panel
dimensions need to be
adjusted accordingly.
686 mm
WIDE MODELS
Panel width dimen-
sions for installation
of a 686 mm wide
tall unit.
Dimensions are based
on a 3 mm reveal. A
reveal of up to 6 mm
is possible, but panel
dimensions need to be
adjusted accordingly.
INSTALLATION
To install integrated
panels, see the
detailed procedures
outlined in the
Sub-Zero Integrated
Installation Guide.
