30
4. Once the box is pushed under the upper taping
head, the upper drive assembly raising switch
is released causing the upper drive assembly to
descend onto the box top, as shown in
Figure 7-21, allowing the drive belts to convey
the box through the upper and lower taping
heads for application of the tape seals.
5. As the box is conveyed through the machine,
the box centering switch is released causing
the centering guides to return to their full open
position, ready for insertion of the next box.
6. Once the box is conveyed from under the
upper taping head, the upper drive assembly
descends to its rest position, ready for insertion
of the next box.
At this point it is recommended that the centering
guides and upper drive assembly switches be
manually actuated to understand the functions
described above. Depressing the box centering
switch causes the guides to close, releasing the
switch causes the guides to open. Depressing the
upper drive assembly raising switch causes the
upper drive assembly to rise, releasing the switch
causes the drive assembly to descend.

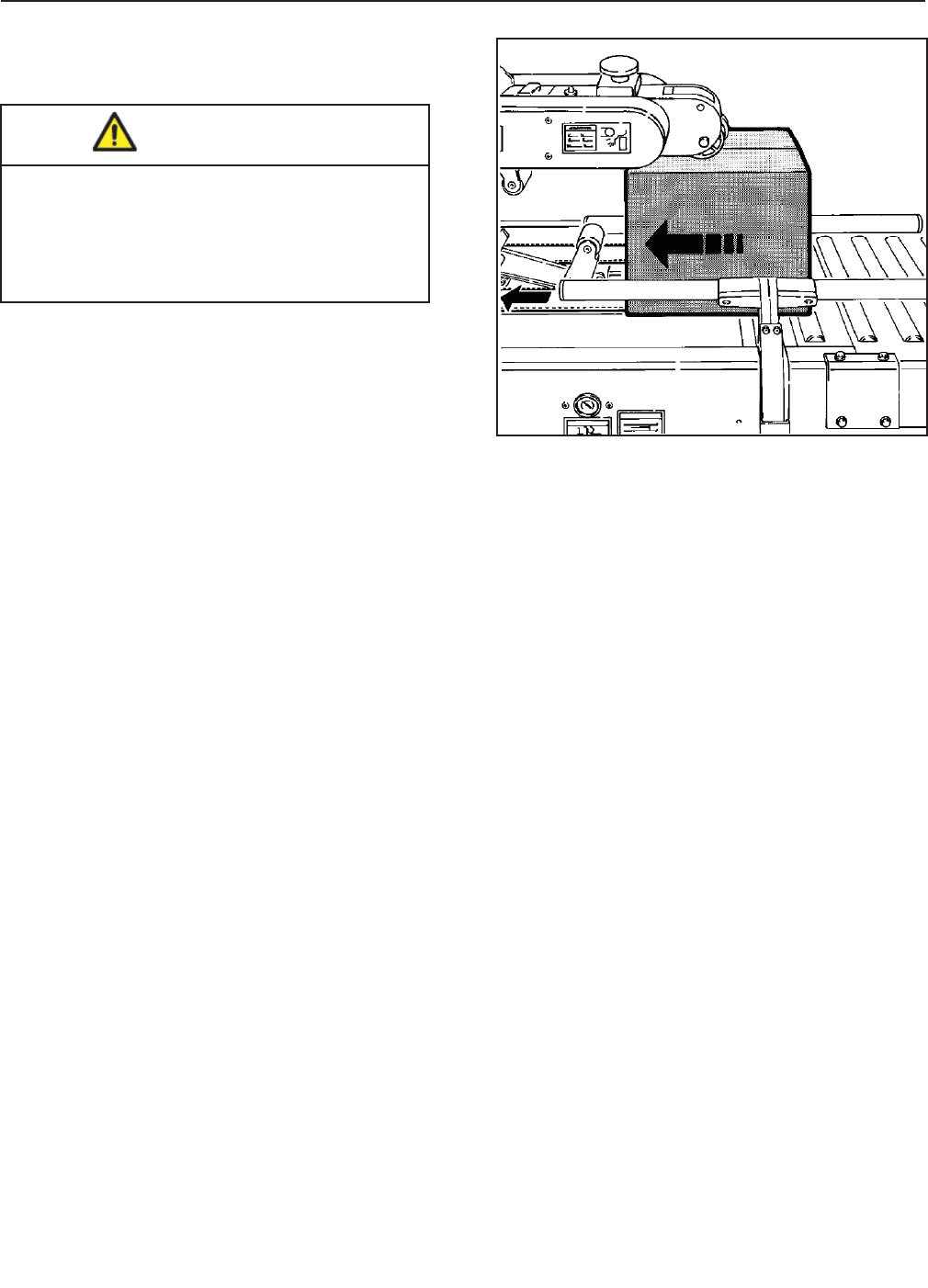

Figure 7-21 – Drive Belts
7.18 Box Sealing
1. Turn main air valve to "SUP" (On).
2. Press green electrical push button on side of
machine frame to start drive belts.
3. Feed boxes to machine allowing previous box to
exit machine BEFORE feeding next box.
4. Turn air and electrical supplies "Off" when
machine is not in use.
5. Reload and thread tape as necessary.
6. Be sure machine is cleaned and lubricated
according to recommendations in "Maintenance"
section of this manual.
Notes –
1. Machine or taping head adjustments are
described in the "Adjustments" Section for
machine or Manual 2 for taping heads.
2. Box drive motors are designed to run
at a moderate temperature of 50°C
[120°F]. In some cases, they may
feel hot to the touch.
To reduce the risk associated with
pinch and entanglement hazards:
Keep hands, hair, loose clothing, and
jewelry away from moving belts and
taping heads
CAUTION
700r-NA
2011 July
7-INSTALLATION AND SETUP (continued)
7.16 Tape Loading and Threading
See Manual 2
7.17 Theory of Operation
