39

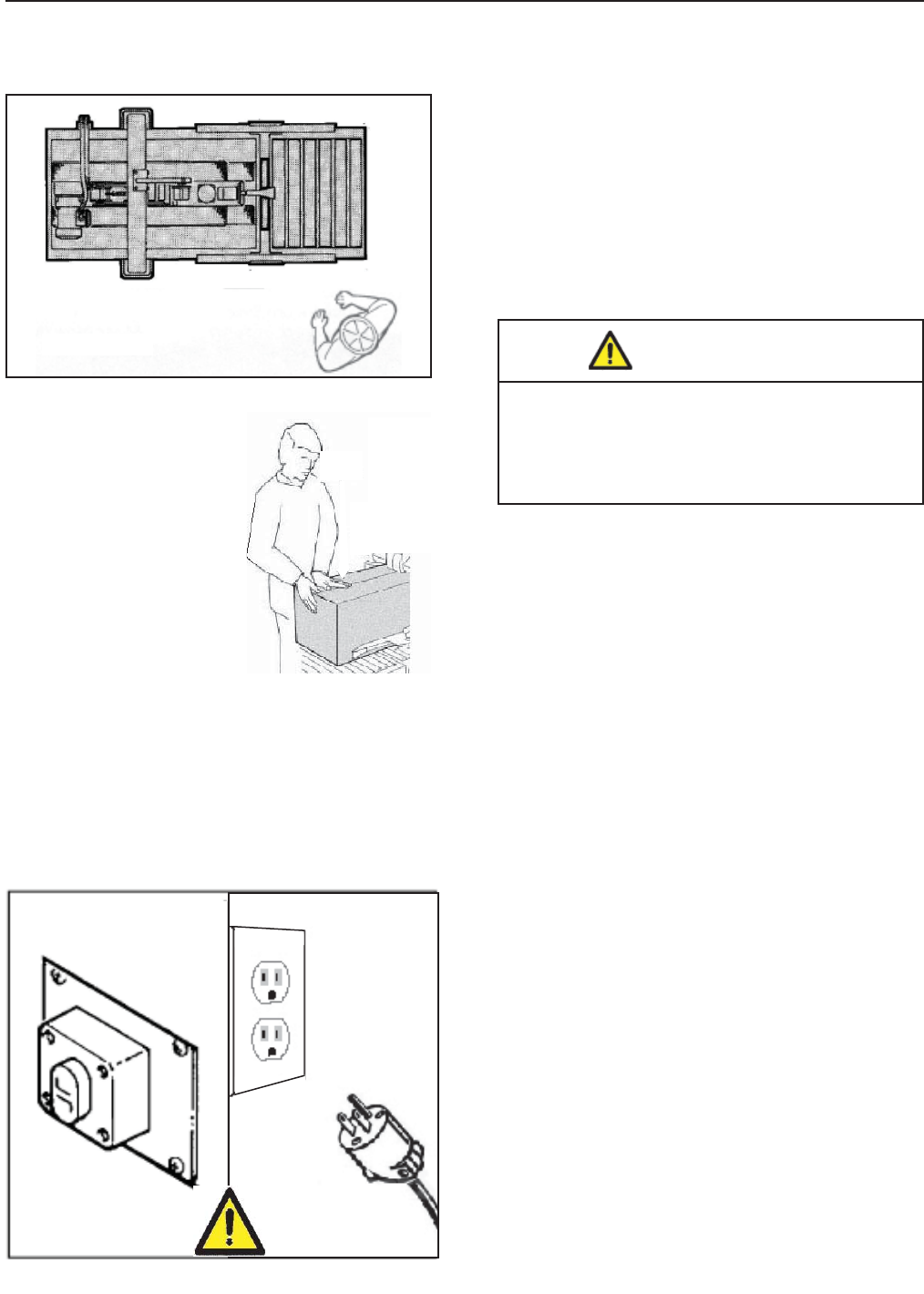

12-OPERATION
12.1 Operator's Correct Working Position and
Operational Flow (Figure 12-1).
12.3 Starting Production
Let the machine run without cartons and check its
safety devices. Then start the working cycle.
12.4 Tape Replacement and Threading
Skill 1 - Operator
See Manual 2:
AccuGlide™ 3Taping Heads - 2 inch.
Press the
LATCHING EMERGENCY STOP BUTTON.
12.5 Box Size Adjustment
Repeat all the operations shown in
Section 11 - Setup and Adjustments.
12.6 Cleaning
Before carrying out any cleaning or maintenance
operation stop the machine by turning the OFF (O)
rotary switch on the main and disconnect the
electric power (Figure 12-3).
12.8 Safety Devices Inspection
1 Taping units blade guard
2 Latching emergency stop button
3 STOP/OFF (O) main rotary switch
Operator Qualifications
1 Tape loading and threading 1
2 Tape web alignment 1
3 Adjustment of one way tension roller 1
4 Adjustment to box size (H and W) 1
5 Top fl ap compression rollers 1
6 Adjustment of tape applying spring 1
7 Conveyor bed height adjustment 1
8 Special Adjustment-Changing tape leg length 2
9 Special Adjustment-Column re-positioning 2
12.7 Table of Operation Adjustments -
12.2 Starting the Machine
Important: Before starting the machine, verify that
no tools or other objects are on the conveyor bed.
Push the main rotary switch ON
(I) after the
EMERGENCY BUTTON is released (Figure 12-3).
2011 July
700r-NA
Once the box has been
fi lled, close its top fl aps
and push it between the
top and bottom drive
belts. Always keep hands
in position as shown in
Figure 12-2.
The box will be
automatically sealed
with adhesive tape on
the top and bottom box
seams. Then the box will
be expelled on the exit
conveyor.
Figure 12-2
Hand Position
Figure 12-1
• To reduce the risk associated with sharp
blade hazards:
− Keep hands and fi ngers away from tape
cutoff blades under orange blade guards.
The blades are extremely sharp.
WARNING
Figure 12-3
