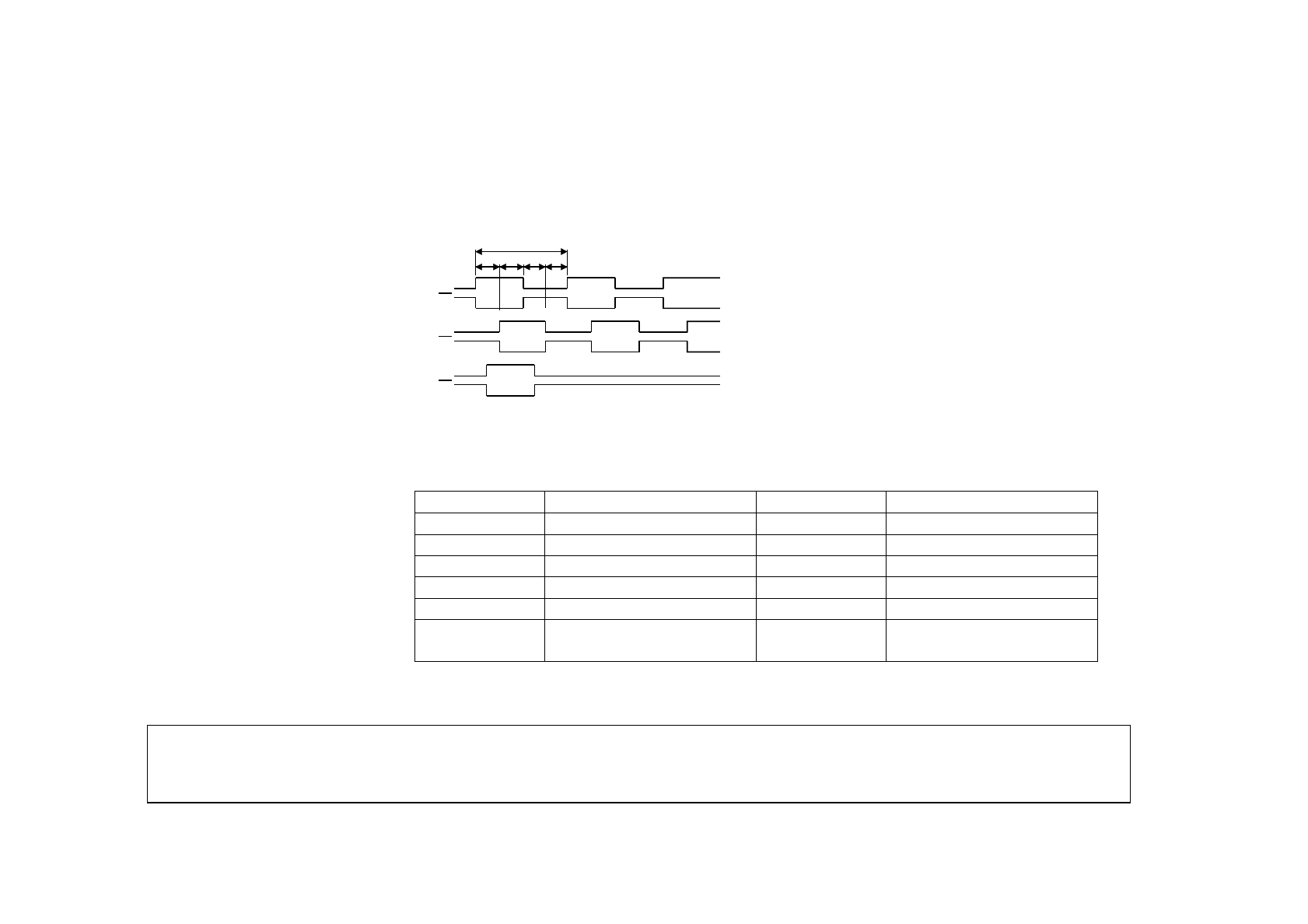

(4) Position detector (PLG).
Line driver LED type PLG
A. A signal 1000ppr to 4096ppr
B. B signal 1000ppr to 4096ppr
C(Z).C(Z) signal 1ppr Output pulse specifications
P
abcd
2.4 to 5.25V
H
1000ppr to 4096pp
r
1000ppr to 4096ppr
1000ppr to 4096ppr
1000ppr to 4096ppr
1ppr
1ppr
A
A
B
B
C
C
L
0 to 0.4V
a, b, c and d should be (1/4
1/8)P when rotation is clockwise as viewed from the shaft
end of the PLG.
<Example of PLG
available on the market>
Tamagawa Seiki:
TS1508N207,
TS5008N122,
TS5108N122
Pin Numbers of PLG Output Signals (Tamagawa Seiki, TS1508N207)
Pin Number Output Signal Pin Number Output Signal
C A-phase signal H +5V power supply
R A-phase inverse signal K Power supply common
A B-phase signal E Case earth
N B-phase inverse signal
B C(Z)-phase signal
P C(Z)-phase inverse
signal
Note: When PLG feedback control and orientation control are used together, the PLG is shared between these
controls.
Use a PLG which has a pulse count of 1000 to 4096ppr (pulses per revolution).
