56
Converting from Previous Models Section 2-12

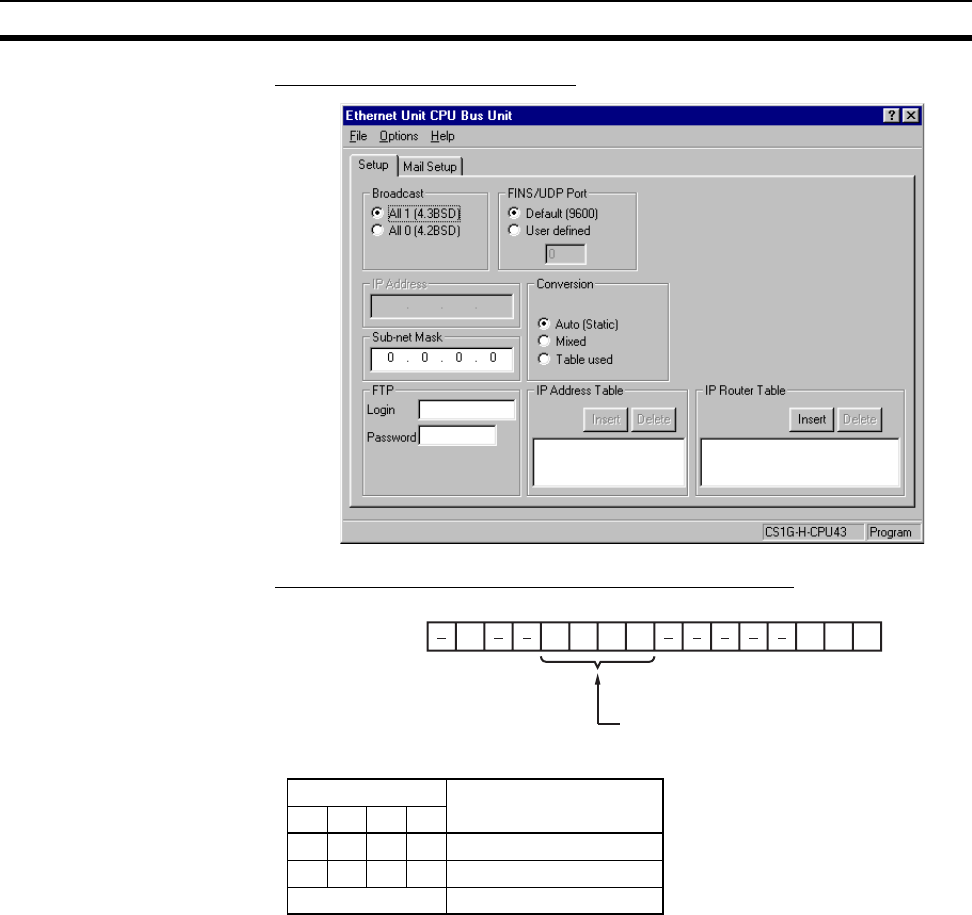

Window Display in ETN11 Mode
Checking by Reading Words Allocated in the CIO Area
Changing the CPU Bus
Unit System Setup Area
Format
The CPU Bus Unit System Setup Area format can be changed in either of the
following two ways. Select the method that can be used in the system in which
the Unit is to be replaced.
By means of the CX-Programmer's Unit Setup
By manipulating the rotary switches for the node address with a precision
screwdriver
Bit address Format classification
11 10 9 8
0000ETN11 mode
0001ETN21 mode
Other Reserved
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
n+17
System Setting Format
