35
Model PH61 Operating Procedures
Step 14

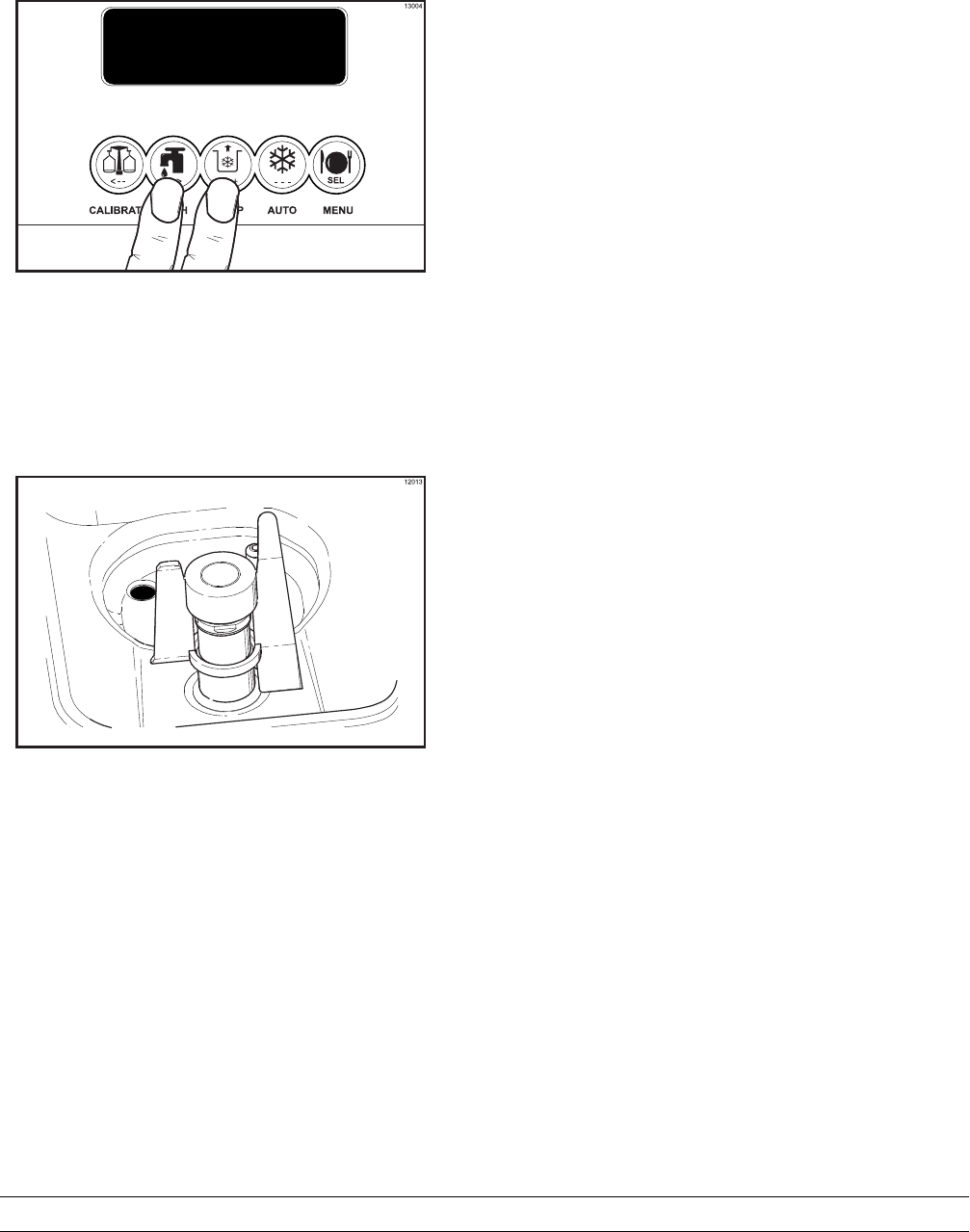

Press the WASH and PUMP keys to stop the WASH
and PUMP modes. Close the draw valve.
(See Figure 42.)
Figure 42
Note: Be sure your hands are clean and
sanitized before going on in these instructions.
Step 15
Place the agitator on the agitator drive shaft
housing. (See Figure 43.)
Figure 43
Note: If the agitator paddle should stop turning
during normal operation, with sanitized hands,
remove the agitator from the agitator drive shaft
housing and brush clean with sanitizing solution.
Install the agitator back onto the agitator drive shaft
housing.
Step 16
Remove the restrictor cap.
Step 17
Return to the freezer with a small amount of
sanitizing solution. With a pail below the door spout,
dip the door spout brush into the sanitizing solution
and brush clean the syrup ports in the freezer door,
door spout, bottom of the driven spinner and spinner
blade, and syrup line fittings.
To assure sanitary conditions are maintained, brush
clean each item for a total of 60 seconds, repeatedly
dipping the brush in sanitizing solution.
Step 18
With the syrup port brush, brush each syrup port
hole10to15times.Dipthebrushinsanitizing
solution before brushing each port.
Step 19
Fill the squeeze bottle with sanitizing solution. With a
pail beneath the door, insert the tube end of the
squeeze bottle into the syrup port, and squeeze the
bottle firmly. This action will force solution out of the
adjacent port and down around the spinner.
This procedure should be performed for at least 10
seconds per port.
Step 20
Install the syrup valves and the restrictor cap.
Priming
Note: Evaluate the condition of LED's (lights) and
screen messages before performing priming
procedures. If all 4 LED's are flashing, the unit is
locked.
Step 1
With a mix pail beneath the door spout, open the
draw valve. Pour 2-1/2 gallons (9.5 liters) of FRESH
mix into the mix hopper and allow it to flow into the
freezing cylinder. This will force out any remaining
sanitizing solution. When only mix is flowing from the
door spout, close the draw valve.
