MTPX Plus Twisted Pair Matrix Switchers • Matrix Software
Serial-port-connected firmware upload
This screen is shown for
example only.
For the MTPX Plus,
the firmware file selected and
shown is “MTPX Plus”.
NOTE
10
11

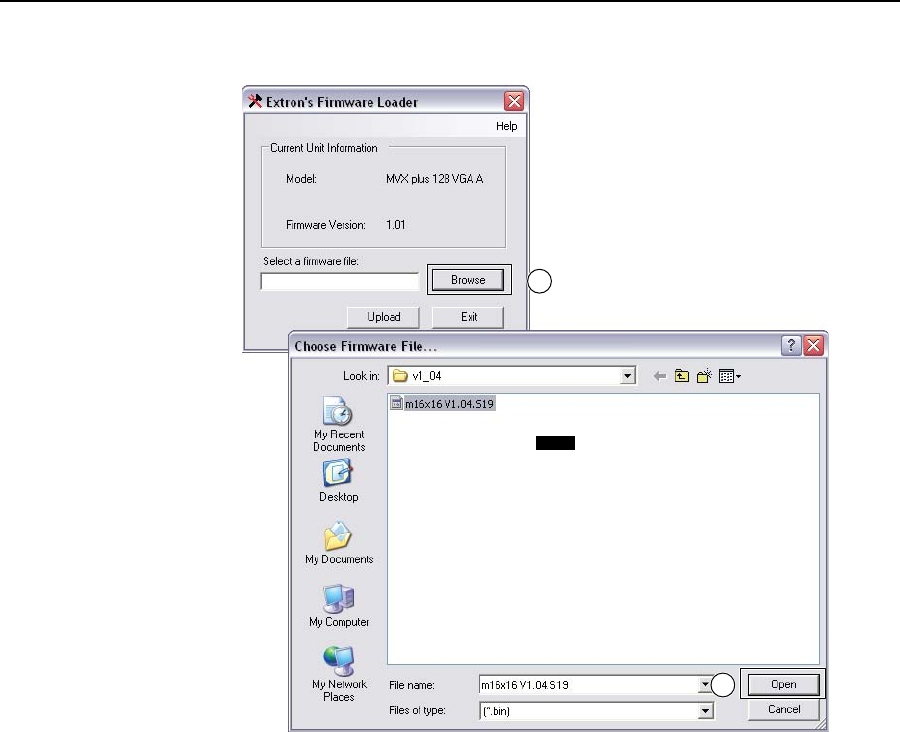

Figure 5-12 — Firmware loading
10. Click Browse. The open file window appears.
11. Navigate to the folder where you saved the firmware upgrade file. Select the
file and click Open. The Firmware Loader returns to the top.
C
Validrmwarelesmusthavetheleextension“.S19”.Anyotherle
extension is not a firmware upgrade.
N
The original factory-installed firmware is permanently available on the
MTPXPlusswitcher.Iftheattemptedrmwareuploadfailsforanyreason,the
switcher automatically reverts to the factory-installed firmware.
12. Click Upload. The File Loader advises you that using the Ethernet (LAN) port
is preferred over using either serial port (figure 5-13).
To quit the firmware upload and start over using the LAN port, click the
Cancel button and return to step 7. Use the LAN port connection in step 7.
To continue the firmware upload using either serial port connection, click the
OK button. The program prompts you to identify the serial port to which you
are connected. Continue to step 13.
