Operation, cont’d
MTPX Plus Twisted Pair Matrix Switchers • Operation
3-22
6. Press and release the Video button and the Audio button to toggle the Video
button on green and the Audio button either unlit or background illuminated
(gure3-26).
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
O
U
T
P
U
T
S
I / O
VIDEO AUDIO
The output buttons for outputs that are not tied to Input 5 are
either unlit or background illuminated.
The output buttons for outputs that are tied to Input 5
light green to indicate video ties (audio breakaway).
Press the Video
button to select it.
The button lights
green when selected.
Press the Audio
button to deselect it.
The button is unlit
or background
illuminated when
deselected.

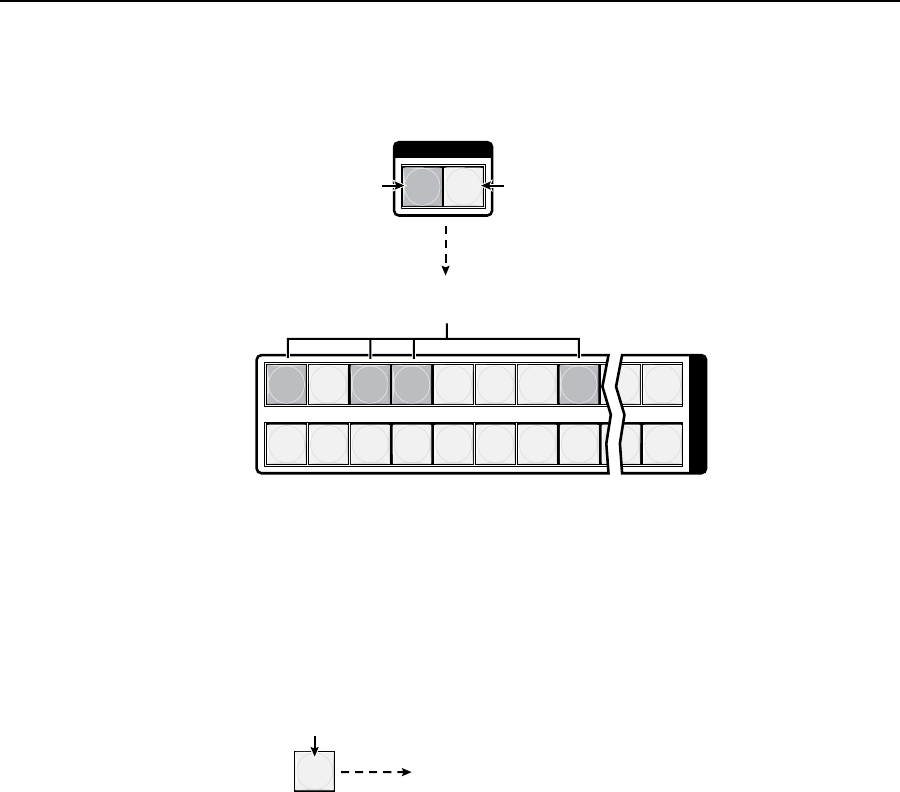

Figure 3-26 — Deselect audio and select video to view video ties only
If video ties are established for input 5, the output buttons light green for all
video outputs tied to input 5. If no ties are established for input 5, all output
buttons return to either unlit or to background illumination.
7. Press and release the View button to exit View-only mode (figure 3-27).
All input buttons and output buttons
return to unlit or background illumination.
VIEW
Press the View button
to exit View-Only mode.
The View button returns to
unlit or background
illumination.
Figure 3-27 — Press the View button to exit View-only mode
