6-3
MTPX Plus Twisted Pair Matrix Switchers • HTML Operation
7. The switcher checks several possibilities, in the following order, and then
responds accordingly:
a. Does the address include a specific file name, such as
10.13.156.10/le_name.html?If so, the switcher downloads that HTML
page.
b. Istherealeintheswitcher’smemorythatisnamed“index.html”?
If so, the switcher downloads “index.html” as the default startup page.
c. If neither of the above conditions is true, the switcher downloads the
factory-installeddefaultstartuppage,“nortxe_index.html”(gure6-2),
also known as the System Status page.
System Status Page
TheSystemStatuspage(gure6-2)providesanoverallviewofthestatusofthe
matrix switcher, including individual voltages, and the serial port status. The
System Status page is the default page that the switcher downloads when you
connect to the switcher. Access the System Status page from other pages by clicking
the Status tab.
Refresh

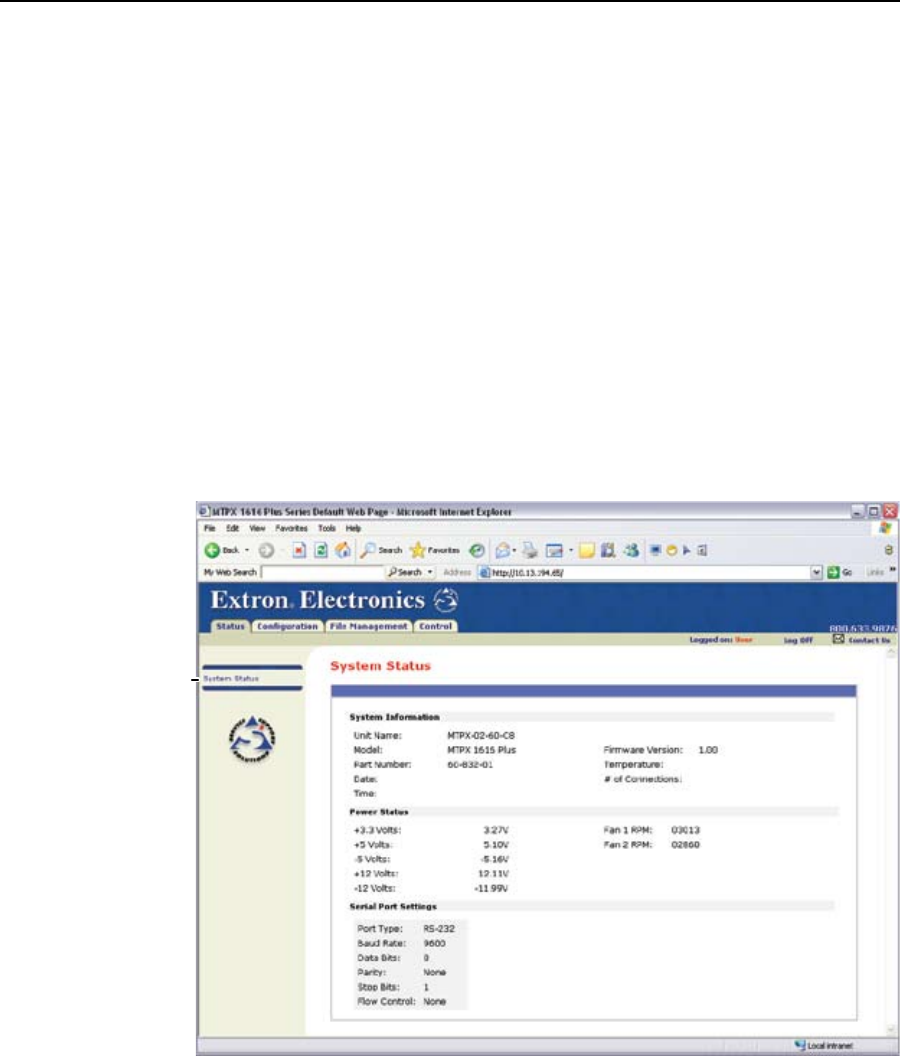

Figure 6-2 — System Status page
The status web page periodically updates itself to reflect the latest status of the
switcher components. If a value changes, the display shows the change in status
the next time it updates.
