User Control Page
YoucancreatetiesontheUserControlpage(gure6-9).AccesstheUserControl
page by clicking the Control tab.
Picture Settings
Refresh
I/O Settings
Global Presets
MTPX Configuration

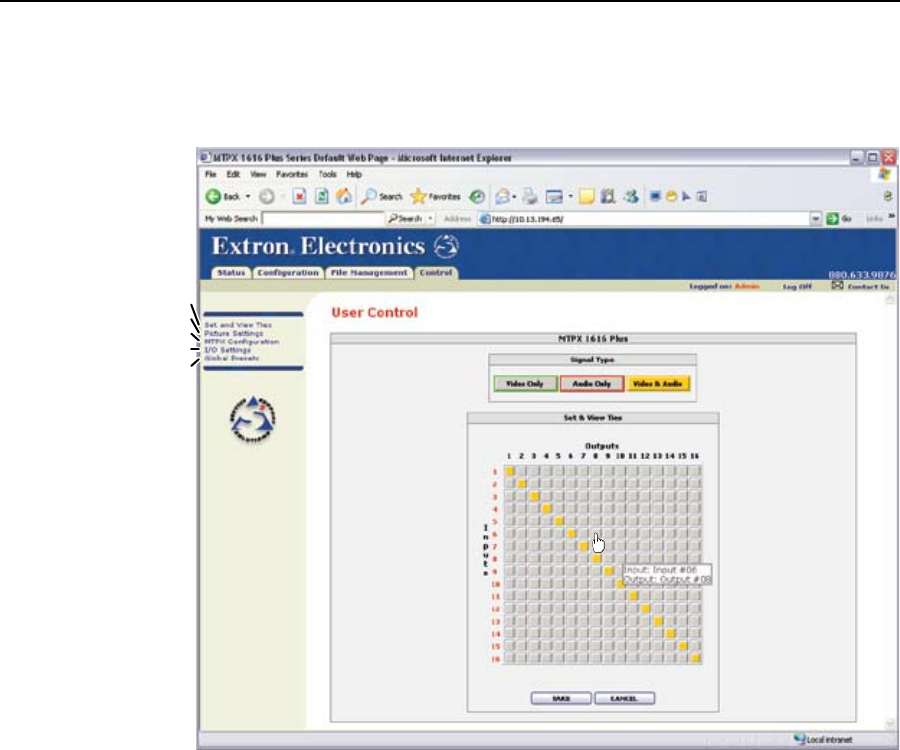

Figure 6-9 — User Control Ties page
The page consists of a matrix of input (rows) and output (columns) selection
buttons of four different colors:
• Theamber buttons indicate video and audio ties.
• Thegreen buttons indicate video only ties.
• Thered buttons indicate audio only ties.
• Thegray buttons indicate no ties.
N
 Ifyoulosetrackoftheinputandoutputassociatedwithaspecicbutton,letthe
mousepointerrestoverabuttonforamoment.Asshowningure6-9,aeld
pops up that identifies the input and output for that button.
