6-21
MTPX Plus Twisted Pair Matrix Switchers • HTML Operation
Global Presets page
YoucansaveandrecallglobalpresetsfromtheGlobalpresetspage(gure6-17).
Access the Global presets page by clicking the Global Presets link on the left of the
Control page.
Picture Settings
Set and View Ties
I/O Settings
Refresh
MTPX Configuration

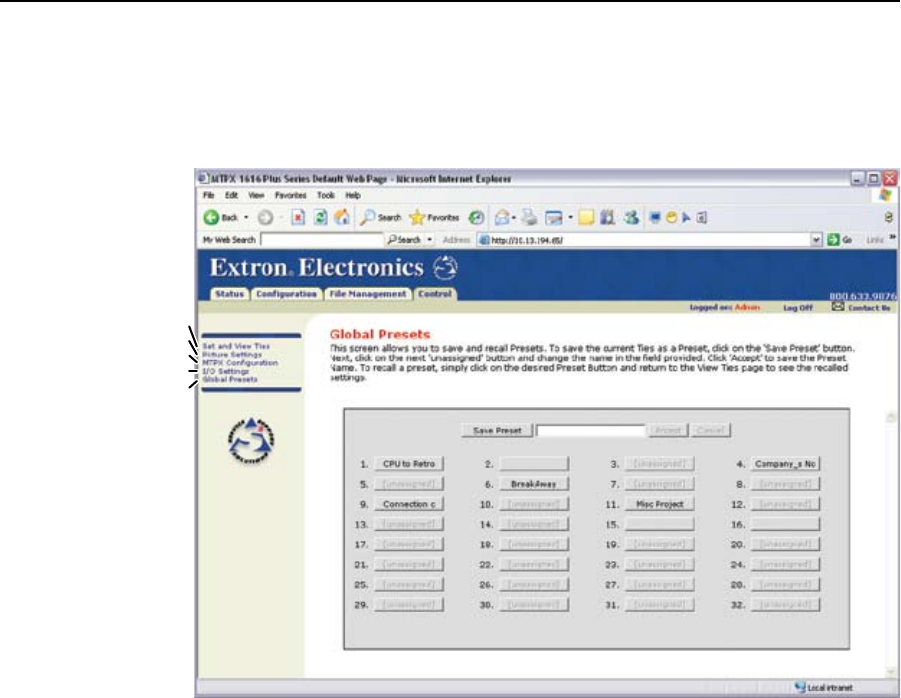

Figure 6-17 — Global Presets page
Saving a preset
Save the current configuration (configuration 0) as a preset as follows:
1. Click the Save Preset button.
2. Select the desired preset by clicking on one of the presets listed. To create a
new preset, click one of the [unassigned] buttons. Overwrite an existing
preset by clicking an already existing preset.
3. If desired, type over the current name in the box adjacent to the Save Preset
button.
N
 Presetnamesarelimitedto12upperandlowercasealphanumericcharacters
and the {space} _ and / characters.
N
The following characters are invalid in preset names:
+~,@=‘[]{}<>’“;:|\and?.
If you do not rename an unassigned button, the MTPX Plus switcher names
thepresetasPreset{nextavailablenumber}.
If you do not rename an existing preset when it is overwritten, the MTPX Plus
switcher retains the same name.
4. Click the Accept button.
Recalling a preset
To recall a global preset to be the current configuration, click the button associated
with the desired preset.
