3-31
MTPX Plus Twisted Pair Matrix Switchers • Operation
3. Press and release the input or output button for the desired preset
(figure 3-43).
1 2 3 4 15 16
17 18 19 20 31 32
I
N
P
U
T
S
C O N T R O L
PRESET
ENTER
ESC VIEW

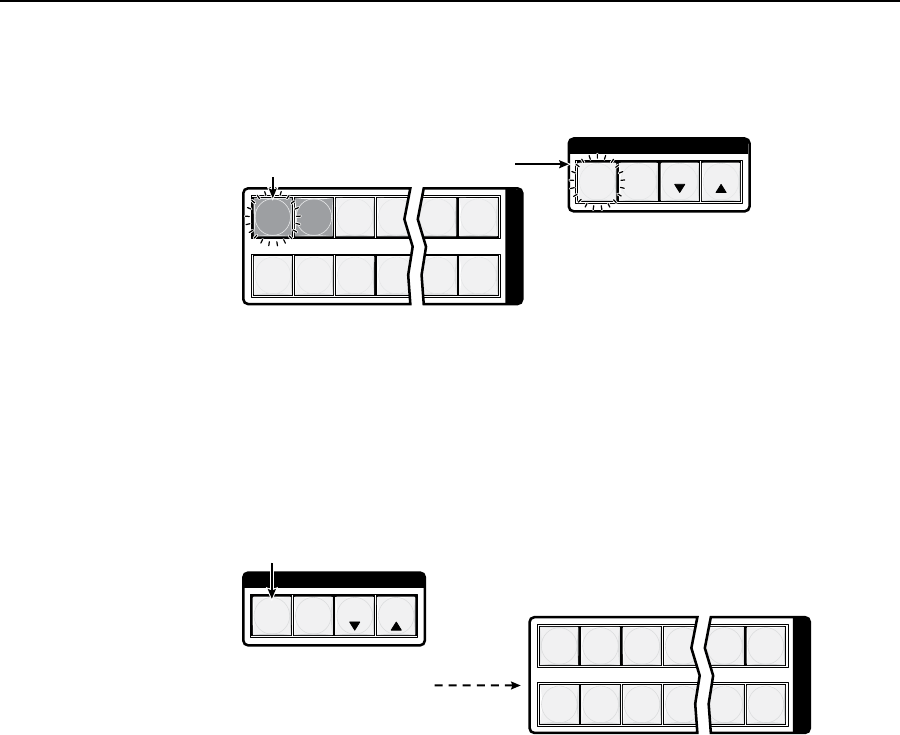

Press and release the Input 1 button.
The button blinks red to indicate that this
preset number is selected but not recalled.
The Enter button blinks
to indicate the need to
recall the preset.
Figure 3-43 — Select the preset
4. Press and release the Enter button (figure 3-44). The configuration stored in
the selected memory location is now the current configuration and can be
viewed in the View-only mode (see example 4).
1 2 3 4 15 16
17 18 19 20 31 32
I
N
P
U
T
S
C O N T R O L
PRESET
ENTER ESCVIEW
All input buttons return to unlit or background illumination.
The Enter and Preset
buttons return to unlit or
background illumination.
Press the Enter button to
recall the preset.
Figure 3-44 — Press the Enter button
