Operation, cont’d
MTPX Plus Twisted Pair Matrix Switchers • Operation
3-26

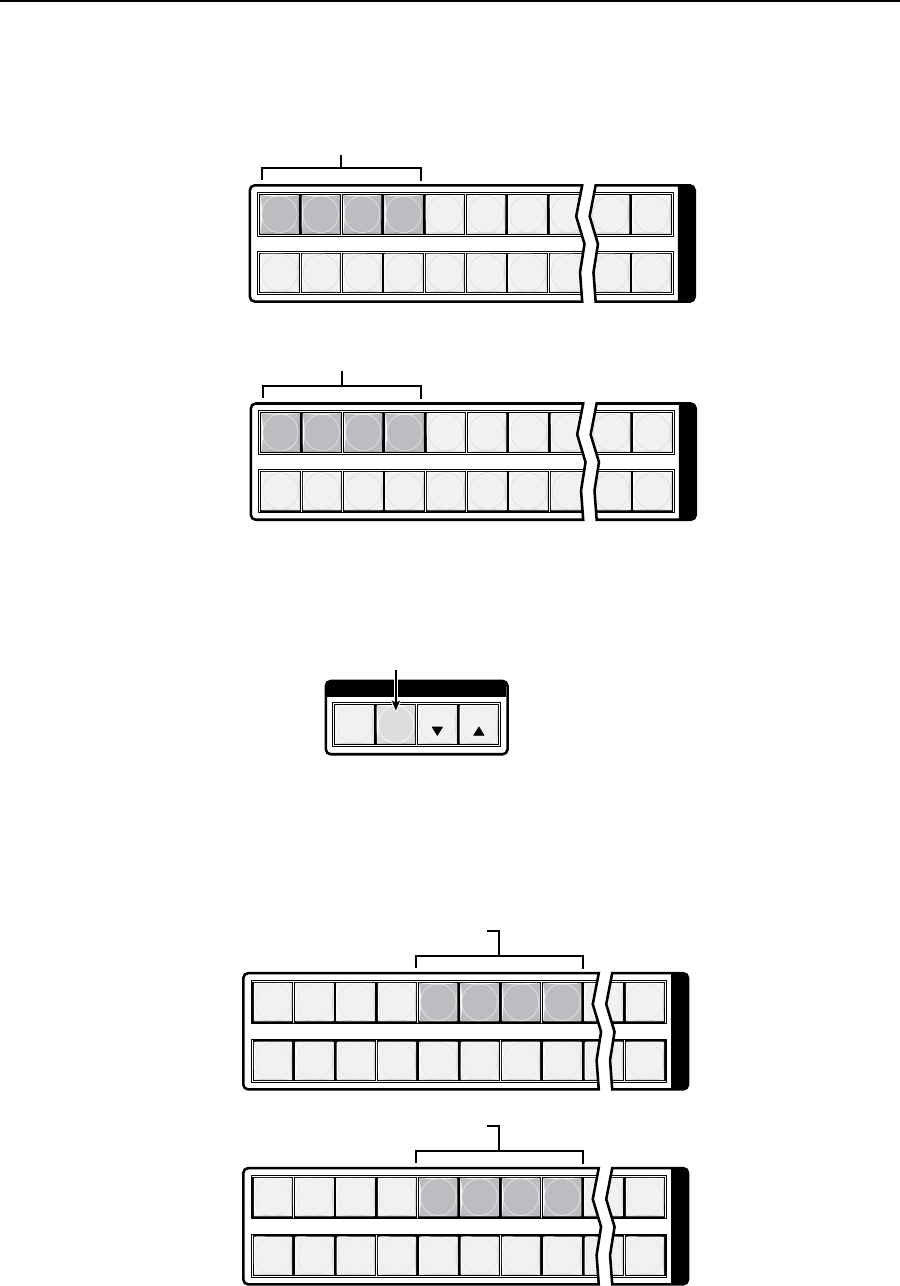

4. Press and release the Input 1 through 4 and Output 1 through 4 buttons
(figure 3-32).
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
I
N
P
U
T
S
O
U
T
P
U
T
S
Press and release the Input 1 through Input 4 buttons.
The selected buttons light green.
Press and release the Output 1 through Output 4 buttons.
The selected buttons light green.
Figure 3-32 — Assign inputs and outputs
5. Press and release the Preset button to select group 2 (figure 3-33).
C O N T R O L
PRESET
ENTER
ESCVIEW
1324
Press and release the Preset button to select group 2.
The button lights amber to indicate the selection.
Group #
Figure 3-33 — Select an I/O group
6. PressandreleasetheInput5through8andOutput5through8buttons
(figure 3-34).
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 25 32
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 25 32
I
N
P
U
T
S
O
U
T
P
U
T
S
Press and release the Input 5 through Input 8 buttons.
The selected buttons light green.
Press and release the Output 5 through Output 8 buttons.
The selected buttons light green.
Figure 3-34 — Assign inputs and outputs
