3-45
MTPX Plus Twisted Pair Matrix Switchers • Operation
Figure3-63showsthesamevolume(61%)asingure3-62,butdisplayedona
16-input-buttonswitcher,suchasanMTPXPlus168.
INPUTS
11 162
1 3 4 5 6 7 8 9
10 14
12
13 15
•
•
•
Lit Buttons
Unlit Buttons
Blinking Button
The input LEDs display the selected output’s audio volume level.
In this example, the lit/blinking input buttons indicate 59.5 to 62.5 percent of the applied audio input.
The unlit/blinking input buttons indicate an audio volume attenuation of 25 dB to 27 dB.
-26 dB attenuation
61% volume

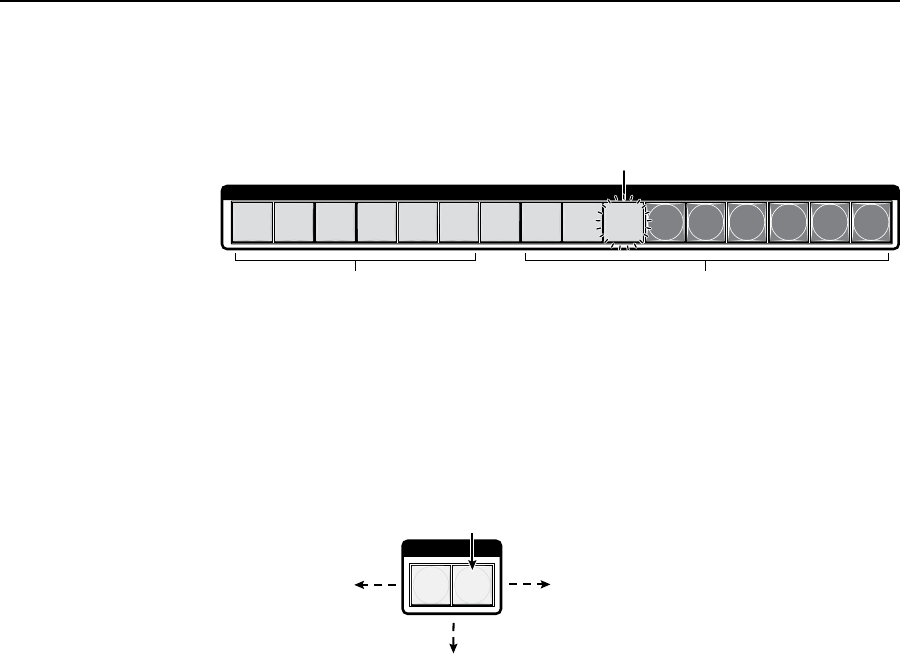

Figure 3-63 — Volume display on a 16-input-button switcher
5. PressandreleasetheAudiobutton(gure3-64).
I / O
VIDEO AUDIO
The Audio button stops
blinking and lights.
Press the Audio button
to exit audio mode.
All input buttons and output buttons
return to unlit or background illumination.
The Video button
lights green.
Figure 3-64 — Deselect Audio mode
