Operation, cont’d
MTPX Plus Twisted Pair Matrix Switchers • Operation
3-30
4. Press and release the Enter button (figure 3-40). The current configuration is
now stored in the selected memory location.
C O N T R O L
PRESET
ENTER
ESCVIEW
1 2 3 4 15 16
17 18 19 20 31 32
I
N
P
U
T
S
The Enter and Preset
buttons return to unlit or
background illumination.
Press the Enter button to
save the preset.
All input buttons return to unlit or background illumination.

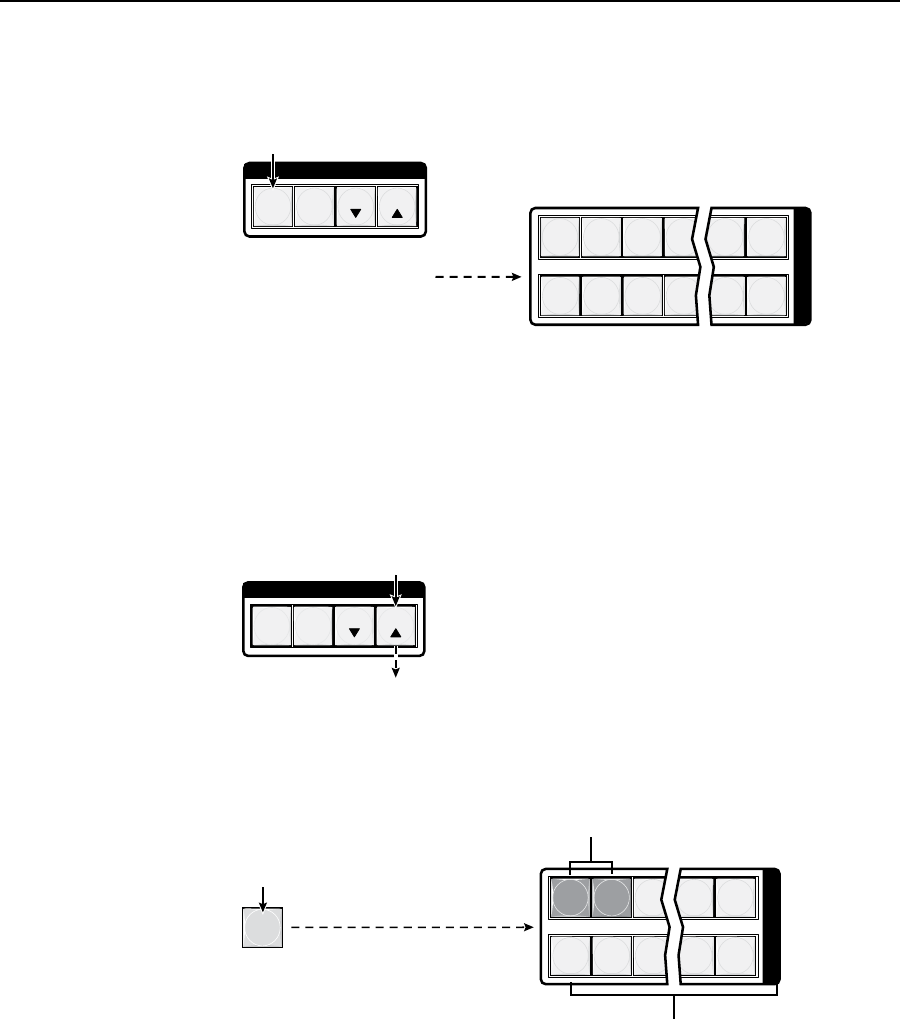

Figure 3-40 — Press the Enter button
Example 7: Recalling a preset
In the following example, a preset is recalled to become the current configuration.
The steps show the front panel indications that result from your action.
1. Press and release the Esc button (figure 3-41).
C O N T R O L
PRESET
ENTER
ESCVIEW
Press the Esc button to clear all selections.
The button flashes once.
Figure 3-41 — Clear all selections
2. Press and release the Preset button (figure 3-42).
1 2 3 15 16
17 18 19 31 32
I
N
P
U
T
S
PRESET
All input buttons with
assigned presets light red.
Red
(Preset Assigned)
Press and release the
Preset button.
The Preset button lights.
Unlit
(No Preset Assigned)
Figure 3-42 — Enter Recall Preset mode
