5-19
MTPX Plus Twisted Pair Matrix Switchers • Matrix Software

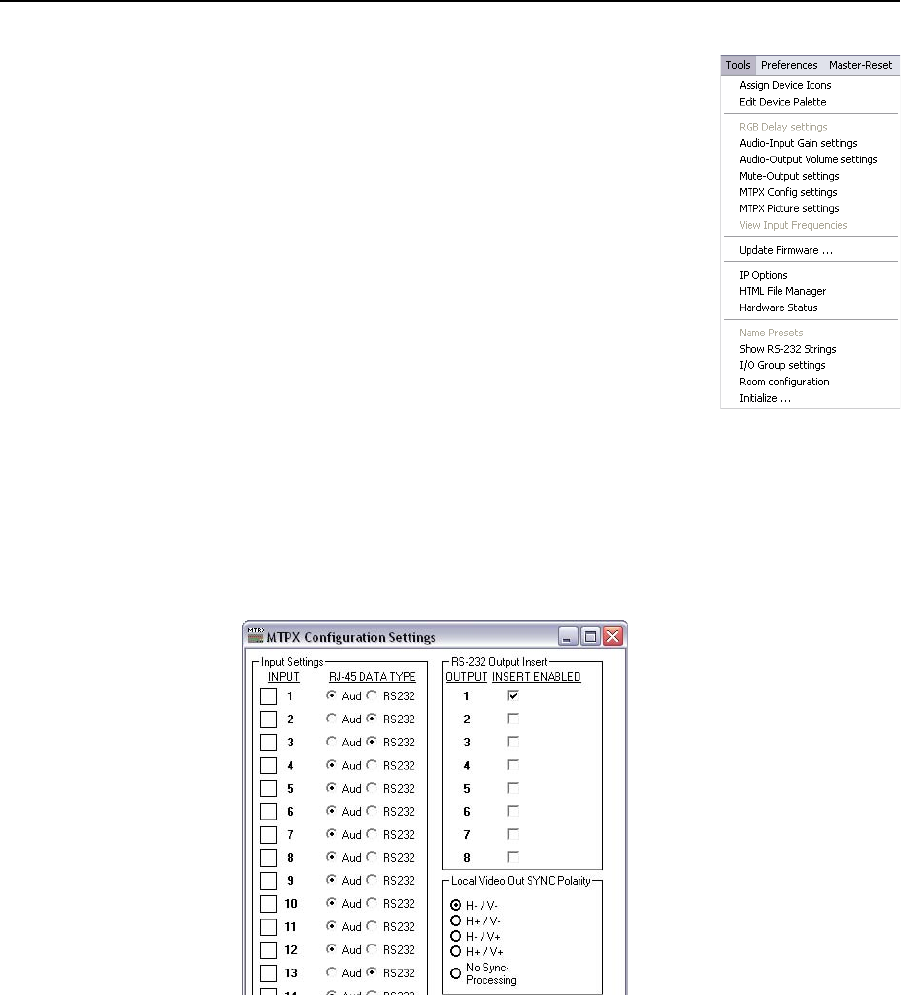

Tools menu
Assign device icons — Displays the complete set of input
and output device icons. You can drag any of these
icons to the input and output boxes.
Edit device palette — Allows you to add your own custom
device icon graphics.
Audio-Input gain settings — Displays the audio gain
level setting for a single input or for all inputs and
allows you to change it. The level is expressed as
the magnitude (number of decibels) and polarity
(positive, gain or negative, attenuation) of the audio
adjustment.
Audio-Output volume settings — Displays the audio output
level setting for a single input or for all inputs and
allows you to change it. The level is expressed as a
percentage of the input audio volume that is applied to the output; 0% is full
attenuation (audio is silent), 100% is full volume.
Mute-Output settings — Displays the Volume and Mute Adjust screen, which
allows you to mute and unmute individual or all audio or RS-232 outputs.
MTPX configuration settings — Displays the MTPX Configuration Settings
window (figure 5-15), which allows you to define the content of the audio/
RS-232 input, enable the RS-232 output inserts, and tailor the output sync.
Figure 5-15 — MTPX Configuration Settings Window
