3-15
MTPX Plus Twisted Pair Matrix Switchers • Operation
Example 2: Adding a tie to a set of video and audio ties
In the following example, a new video tie is added to the current configuration.
The steps show the front panel indications that result from your action.
N
This example assumes that you have performed example 1.

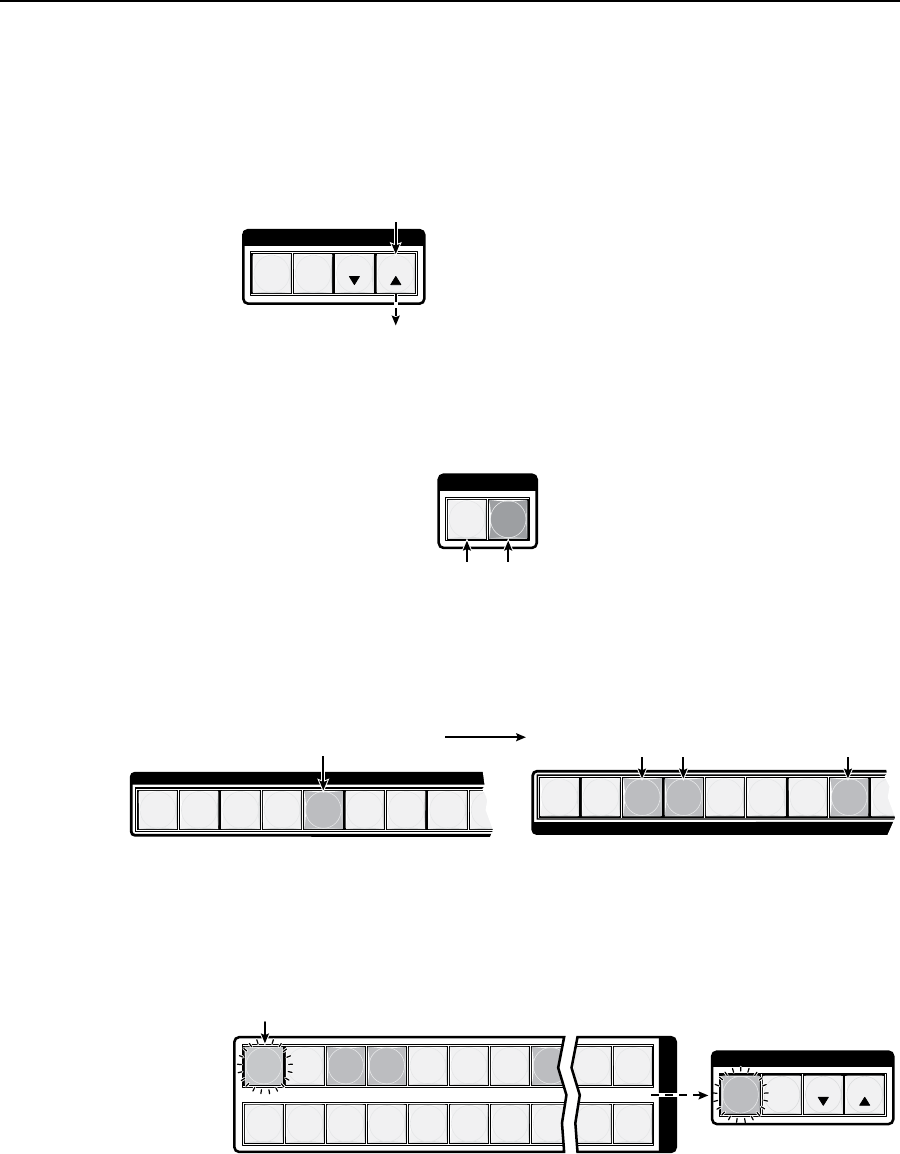

1. Press and release the Esc button (figure 3-10).
C O N T R O L
PRESET
ENTER
ESCVIEW
Press the Esc button to clear all selections.
The button flashes once.
Figure 3-10 — Clear all selections
2. To select video only for the tie, if necessary, press and release the Video button
and the Audio button (figure 3-11).
I / O
VIDEO AUDIO
Press the Video button to toggle on and off.
The button lights green when selected.
Press the Audio button to toggle on and off.
The button is unlit or background illuminated when deselected.
Figure 3-11 — Select video only
3. Press and release the input 5 button (figure 3-12).
INPUTS
1
2
3 4
5
6 7 8
9
OUTPUTS
1
2
3 4
5
6
7 8
9
Press and release the Input 5 button.
The button lights green to indicate that video
outputs can be tied to or untied from this input.
The Output 3, Output 4, and Output 8 buttons light
green to indicate the video ties created in example 1.
Figure 3-12 — Select an input
4. Press and release the output 1 button (figure 3-13).
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
O
U
T
P
U
T
S
Press and release the Output 1 button.
The button blinks green to indicate that only the selected video
input will be tied to this output.
The Enter button blinks
green to indicate the need to
confirm the change.
C O N T R O L
PRESET
ENTER
ESCVIEW
Figure 3-13 — Select the output
