3-29
MTPX Plus Twisted Pair Matrix Switchers • Operation

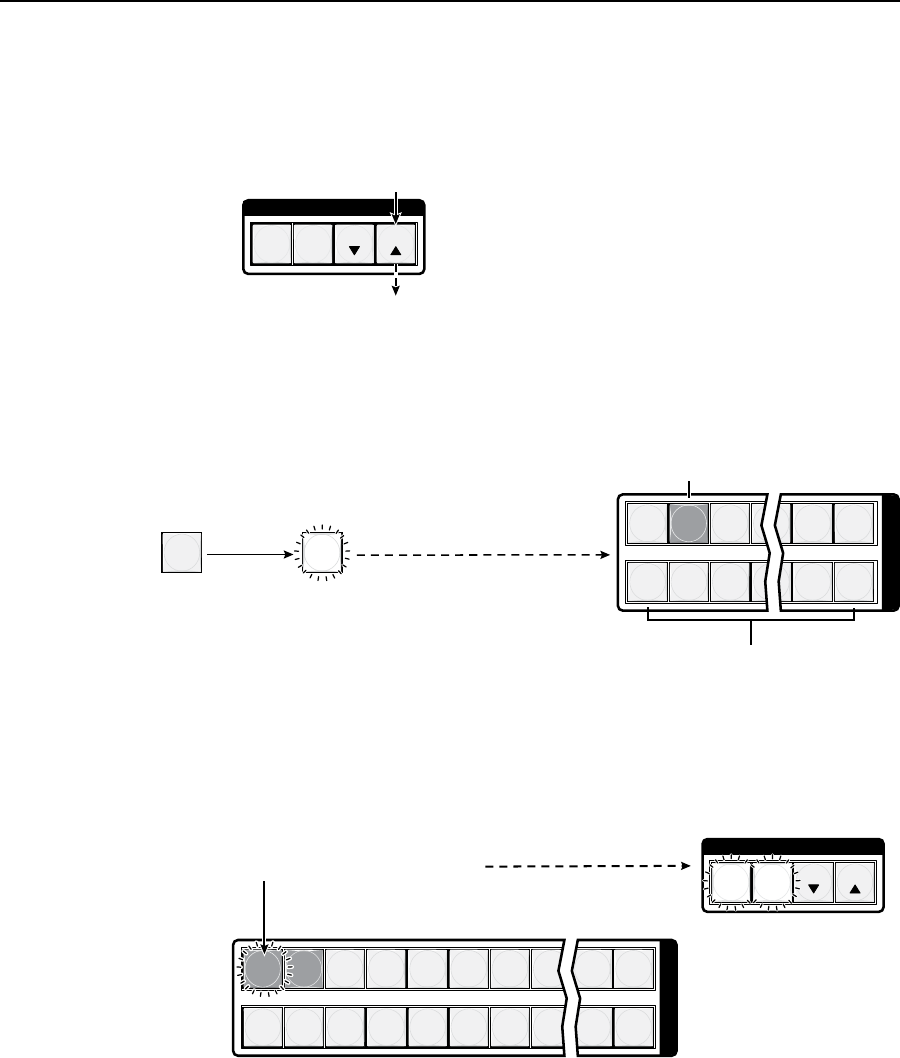

Example 6: Saving a preset
In the following example, the current configuration is saved as a preset. The steps
show the front panel indications that result from your action.
1. Press and release the Esc button (figure 3-37).
C O N T R O L
PRESET
ENTER
ESCVIEW
Press the Esc button to clear all selections.
The button flashes once.
Figure 3-37 — Clear all selections
2. Press and hold the Preset button for approximately 2 seconds until it blinks
(gure3-38).
PRESET PRESET
1 2 3 4 15 16
17 18 19 20 31 32
I
N
P
U
T
S
Press and hold the Preset button until it blinks.
2 seconds
All input buttons with assigned
presets light red.
If you then save the configuration
to a lit preset number, the
configuration data at that preset
location will be overwritten.
Red
(Preset Assigned)
Unlit
(No Preset Assigned)
Figure 3-38 — Enter Save Preset mode
3. Press and release the input or output button for the desired preset
(figure 3-39).
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
I
N
P
U
T
S
C O N T R O L
PRESET
ENTER
ESCVIEW
•
•
•
The Enter button blinks to
indicate the need to save
the preset.
The Preset button
continues to blink.
Press and release the Input 1 button.
The button blinks red to indicate that this preset
number is selected but not saved.
Figure 3-39 — Select the preset
