64

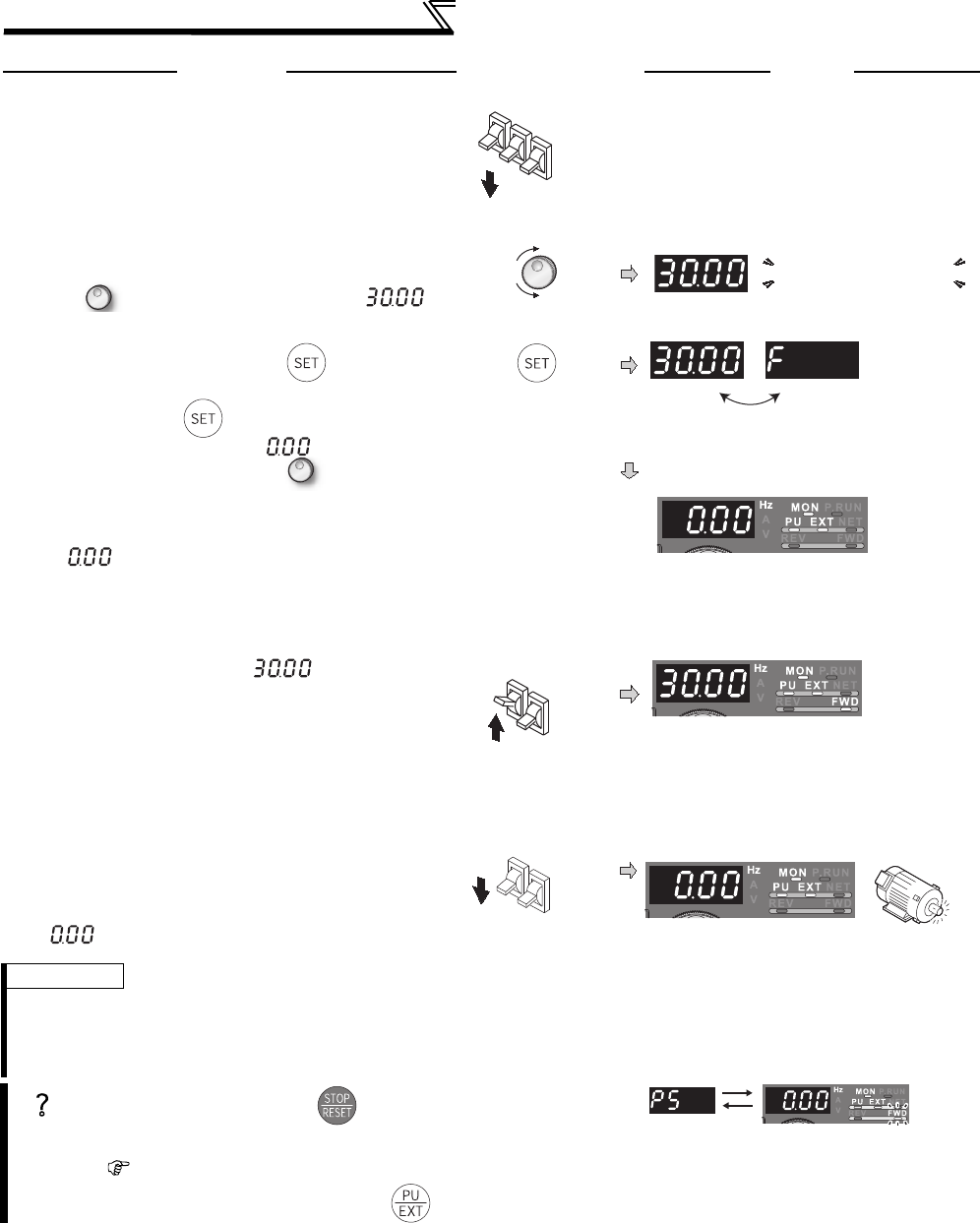

Start/stop using terminals (External
operation)
6. Cancelling the automatic operation
Turn OFF the high-speed switch (RH).
7. Frequency setting in the manual
operation
Turn to show the selected frequency, " "
(30.00Hz).The frequency flickers for about 5s.
While the value is flickering, press to set the
frequency.
(If you do not press , the value flickers for about 5s
and the display then returns to " " (0.00Hz in the
monitor display). In that case, turn again and set the
frequency.)
The value flickers for about 3s and the display then returns
to " " (monitor display).
Flicker···Frequency setting complete!!
After 3s, the monitor display
appears.
8. Start → acceleration → constant speed
Turn ON the start switch (STF or STR).
The frequency on the display increases in the Pr. 7
Acceleration time setting, and " " (30.00Hz)
appears.
[FWD] indicator is lit during the forward rotation and [REV]
indicator is lit during the reverse rotation.
To change the set frequency, perform the operation in
above "Step 7"(starting from the previously set frequency).
9. Deceleration → stop
Turn OFF the start switch (STF or STR).
The frequency on the display decreases in the Pr. 8
Deceleration time setting, and the motor stops rotating with
" " (0.00Hz) displayed.
REMARKS
· Pr. 178 STF terminal function selection must be set to "60" (or Pr. 179 STR terminal function selection must be set to "61"). (All are
initial values.)
· External analog current input (4 to 20mA) can be used to set a frequency instead of the three-speed setting. Turn ON the
terminal 4 input selection signal (AU) to use the analog current input.
When the inverter is stopped by of the operation panel (FR-DU07), are
displayed alternately.
1.Turn OFF the start switch (STF or STR).
2.The display can be reset by
.
Operation Display
OFF
High speed
Middle speed
Low speed
Flickers for about 5s
Forward
rotation
Reverse
rotation
ON
OFF
Forward
rotation
Reverse
rotation
Stop
Flickering
