Chapter 6
Connecting Additional Equipment
REF 1057983 A Respironics V200 Ventilator Operator’s Manual 6-7
When connecting a patient circuit without a humidifier (for example, when
using a heat and moisture exchanger), refer to Figure 6-8.

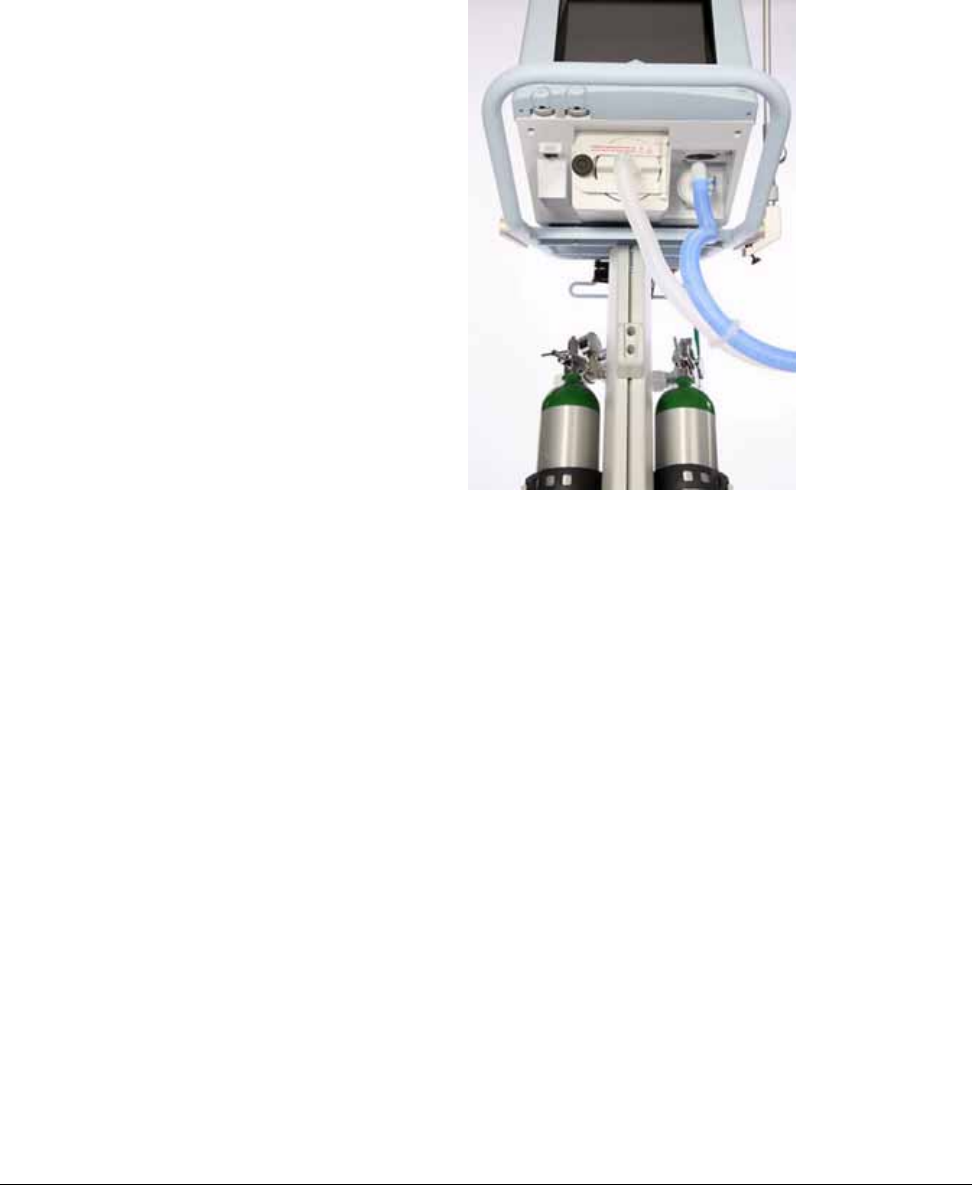

Figure 6-8: Patient Circuit Connections Without Humidifier
Connecting the
Analog Port
The analog output port adds a second remote alarm output. Pin 12 (fourth pin
from the top left is pin 12) signals an unsilenced high or medium urgency
alarm:
• 0 VDC = active alarm
• 1.5 VDC = no alarm or silenced alarm
