Switcher Software, cont’d
ISS 506 Integration Seamless Switcher • Switcher Software
5-12
Advanced Setup window
The Advanced Setup window (figure 5-12) provides a location for viewing and
changing most advanced configuration settings. The advanced settings work
similar to selections made on the front panel via the Advanced Configuration
menu. See chapter 3, “Operation”.

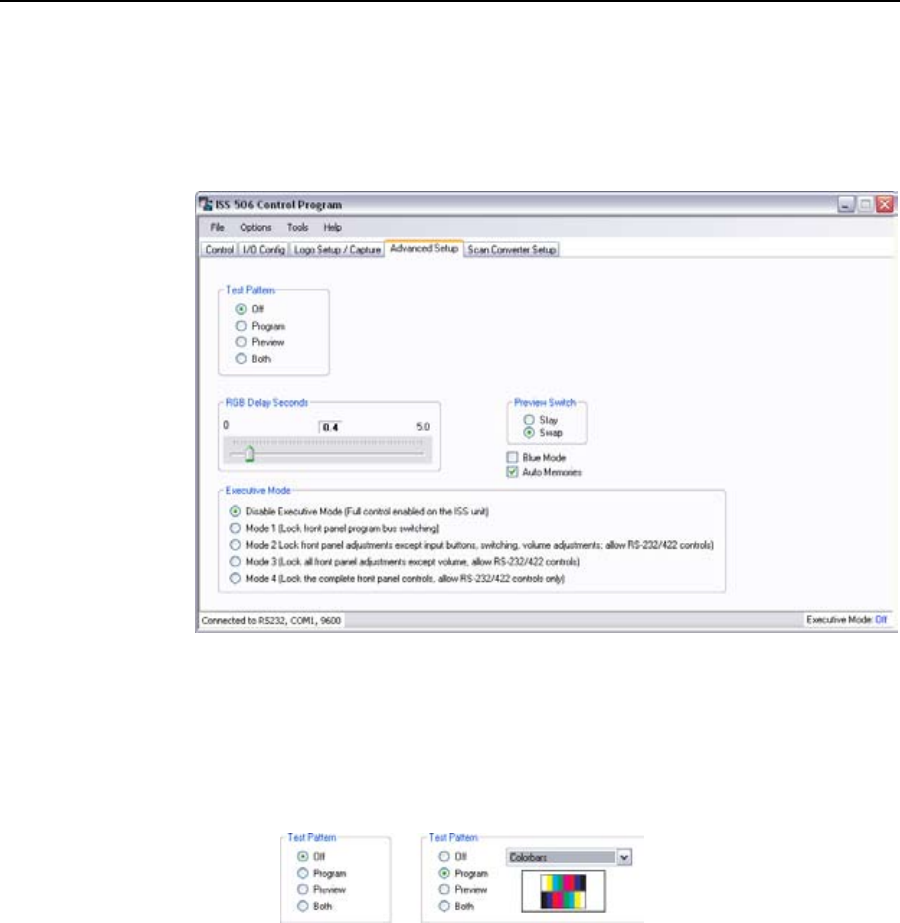

Figure 5-12 — Advanced Setup window
• TheportionofthescreentotherightoftheTestPatternareaisblank
when the Test Pattern Off radio button is selected. When you select a
different radio button, that portion changes to show a dropdown box of
the various test pattern selections and a representation of the test pattern
(figure 5-13).
Figure 5-13 — Test Pattern area
