Operation, cont’d
ISS 506 Integration Seamless Switcher • Operation
3-40
Perform a soft reset of the switcher as follows:
1. Use an Extron tweeker or other small screwdriver to press and hold the
Reset button until the Reset LED blinks once (for events reset), twice (for IP
settings), or three times (for absolute reset) (figure 3-33).
2
. Release the Reset button and then immediately press and release the Reset
button again. Nothing happens if the second momentary press does not occur
within 1 second.
RESET
LAN
RESETRESET
RESET
LAN
RESETRESET
RESET
LAN
RESETRESET
Press and hold
the Reset button.
Release, then
immediately
press and release again.
3 seconds
Events Reset
Reset LED flashes once.
1
Press and hold
the Reset button.
Release, then
immediately
press and release again.
6 seconds
IP Settings Reset
Reset LED flashes twice.
2
Press and hold
the Reset button.
Release, then
immediately
press and release again.
9 seconds
Absolute Reset
Reset LED flashes three times.
3

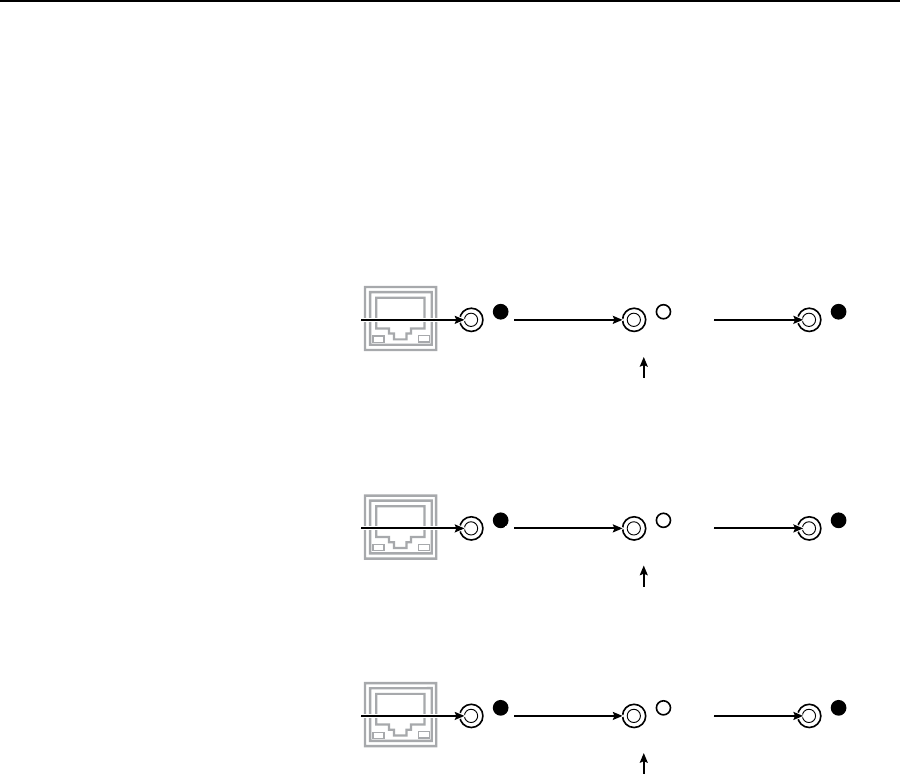

Figure 3-33 — Whole switcher and absolute resets
