7-9
ISS 506 Integration Seamless Switcher • Modications
6. See figure 7-10. Secure the output board to the standoff on the main board
with the included screw (
h
).
8

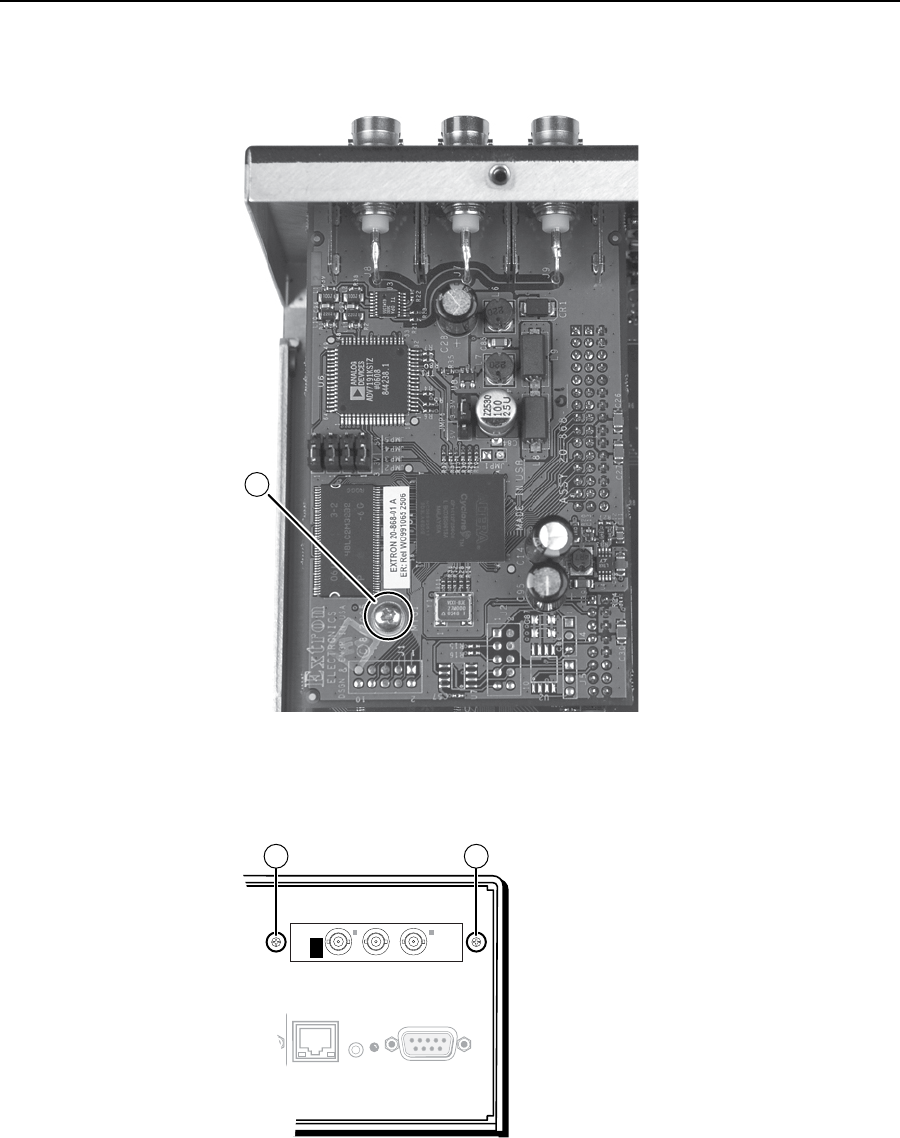

Figure 7-10 — Secure the output board to the standoff
7. Secure the output board to the back panel with the two screws (
i
) removed
in step 2 (figure 7-11).
RS232/422
RESET
LAN
LO-
RES
OUT
R-Y/
R
C
Y/
G
VID
B-Y/
B
Y
9 9
Figure 7-11 — Secure the output board to the rear panel
8. Close and reinstall the switcher. See “Closing the switcher”, on page 7-10.
