Configuring a title
The ISS can display the input that is selected to be the preview output as a title.
N
A title is preview output superimposed over the program output.
Remove (key out) unwanted portions of the title (such as backgrounds) as follows:
1
. Ensure that the video that you want to be the title is connected to one of the
inputs.
2
. Press the Preview Input button for the input that has the desired title video.
The title video appears on the preview output (figure 3-28).
Default
Cycle
Press
TITLE
Step
3
Step
2
30 sec.
Select the title
video input as the
preview output.
PREVIEW
4
4
Watch the display
while you rotate the
Ajust knob to key out
the luminance level.
Four score and seven years ago,
Step
4
Press either
button to display
the title on the
program output.
Step
5
000
through
255
Title Config
Level 000
TAKE
CUT

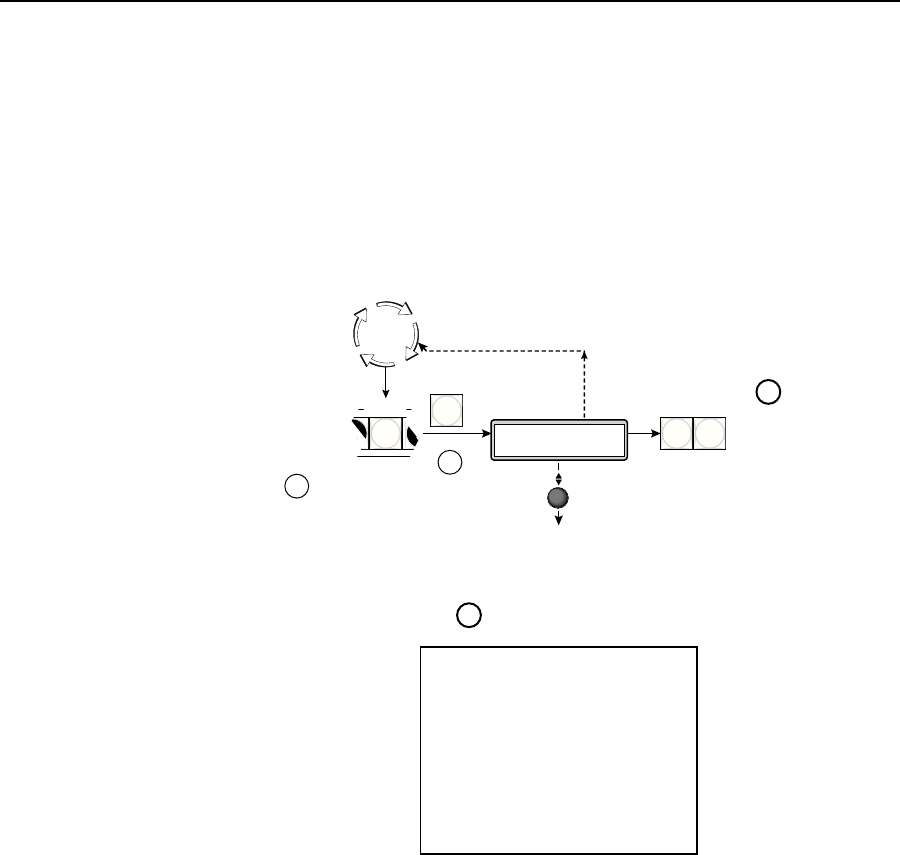

Figure 3-28 — Configuring a title
3. Press the Title button. The Title Configuration submenu appears.
4. Watch the connected preview display while you slowly rotate the Adjust
{
knob to remove the unwanted material from the title. As soon as the
unwanted material is removed from the screen, stop turning the knob.
5
. Press either the Cut or Take button to display the title on the program output.
