Switcher Software, cont’d
ISS 506 Integration Seamless Switcher • Switcher Software
5-16
System Settings RS-232 window

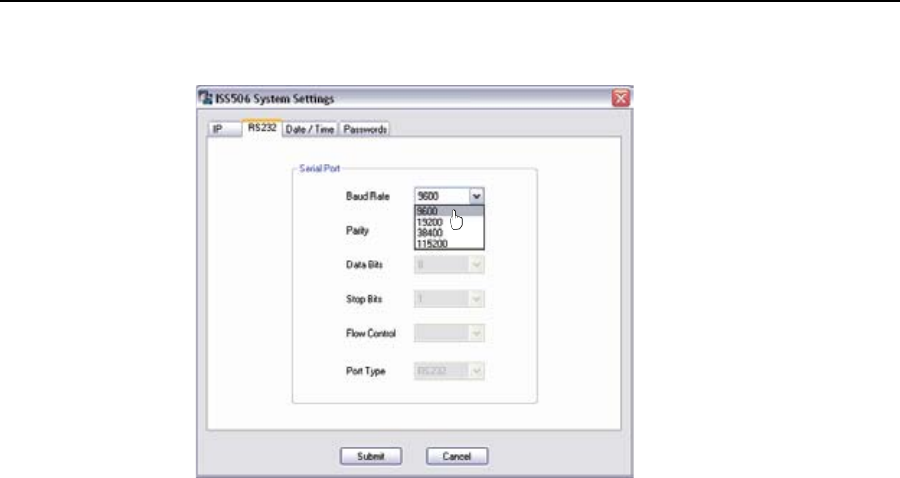

Figure 5-16 — System Settings RS-232 window
Only the baud rate can be changed in the ISS 506 Control Program System Settings
window; all other settings - Parity, Data Bits, Stop Bits, Flow Control, and Port
Type, are displayed only. The port type variable for the rear panel RS-232/RS-422
port can be changed from the front panel, using the menu system. See “View and
Edit Communications Settings menu“, in chapter 3, “Operation“.
Baud Rate dropbox
Click the Baud Rate dropbox and then select the baud rate for serial
communications with the controlling PC.
N
Changing the baud rate while connected via either serial port results in a loss of
communications with the ISS. Change the baud rate on the computer and then
reconnect.
